LG AS-H0964DM0 - Outdoor Unit Dimensions (24-30 k Btu, UE1 Chassis)

2005 Product Data 47

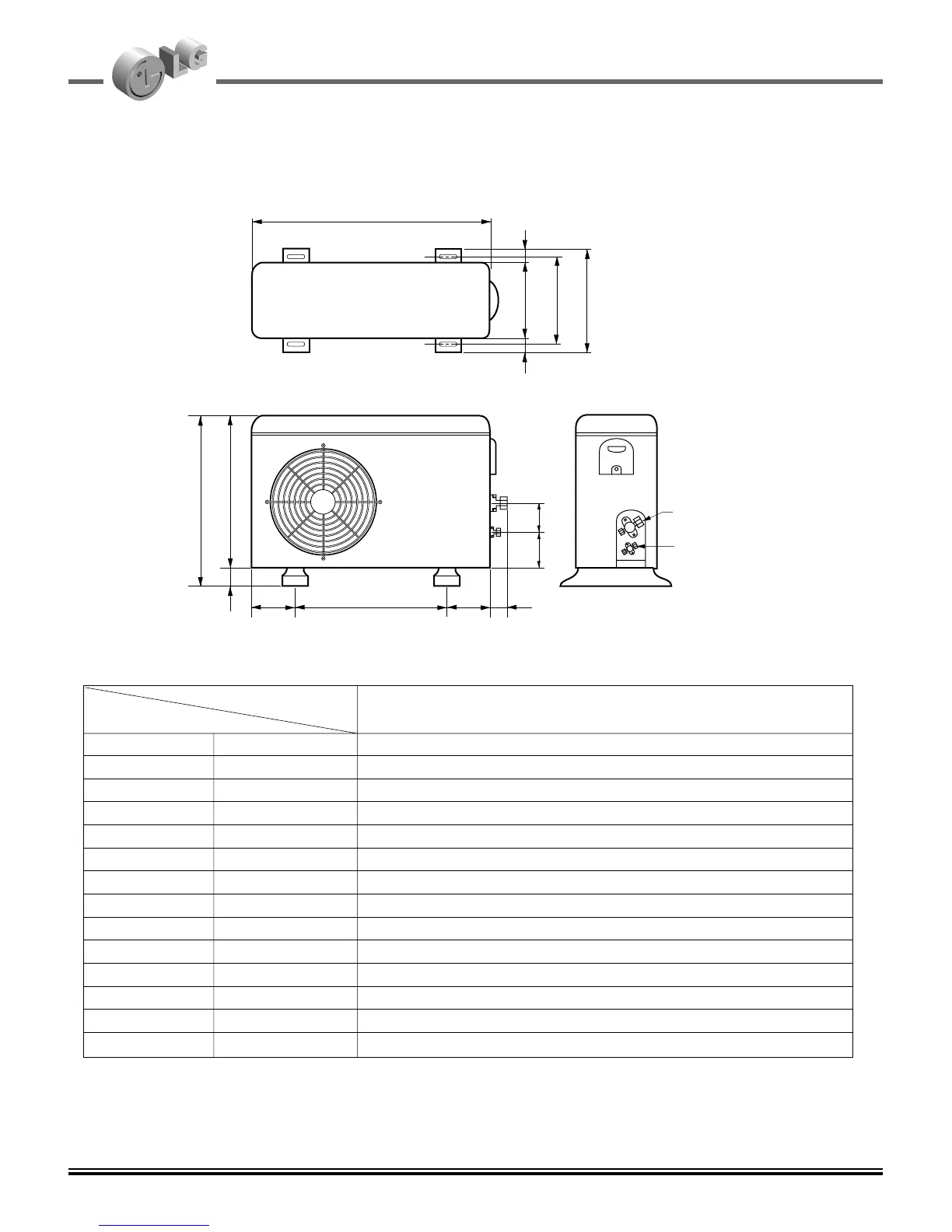

5. Dimensional Drawings Outdoor Units
Chassis
DIM
W
L7 L6 L8 L9
D
L1
L2
L3
L10L11
L4L5
H
Gas side
3-way valve
Liquid side
3-way valve
W mm 870
H mm 800
D mm 320
L1 mm 370
L2 mm 340
L3 mm 25
L4 mm 775
L5 mm 25
L6 mm 546
L7 mm 162
L8 mm 162
L9 mm 54
L10 mm 79
L11 mm 76.4
UE1
• 24~30k Btu
