LG BD590C - Connecting to an Amplifi er Via Digital Audio Output; Connecting to an Amplifi er; Via 2 Channel Audio Output

19Installation
Installation
3
Connecting to an Amplifi er via
Digital Audio Output
Connect the player’s DIGITAL AUDIO OUT
jack to the corresponding in jack (OPTICAL or
COAXIAL) on your ampli er. Use an optional
digital audio cable. You will need to activate
the player’s digital output. (See “[AUDIO] Menu”
on pages 29-30.)

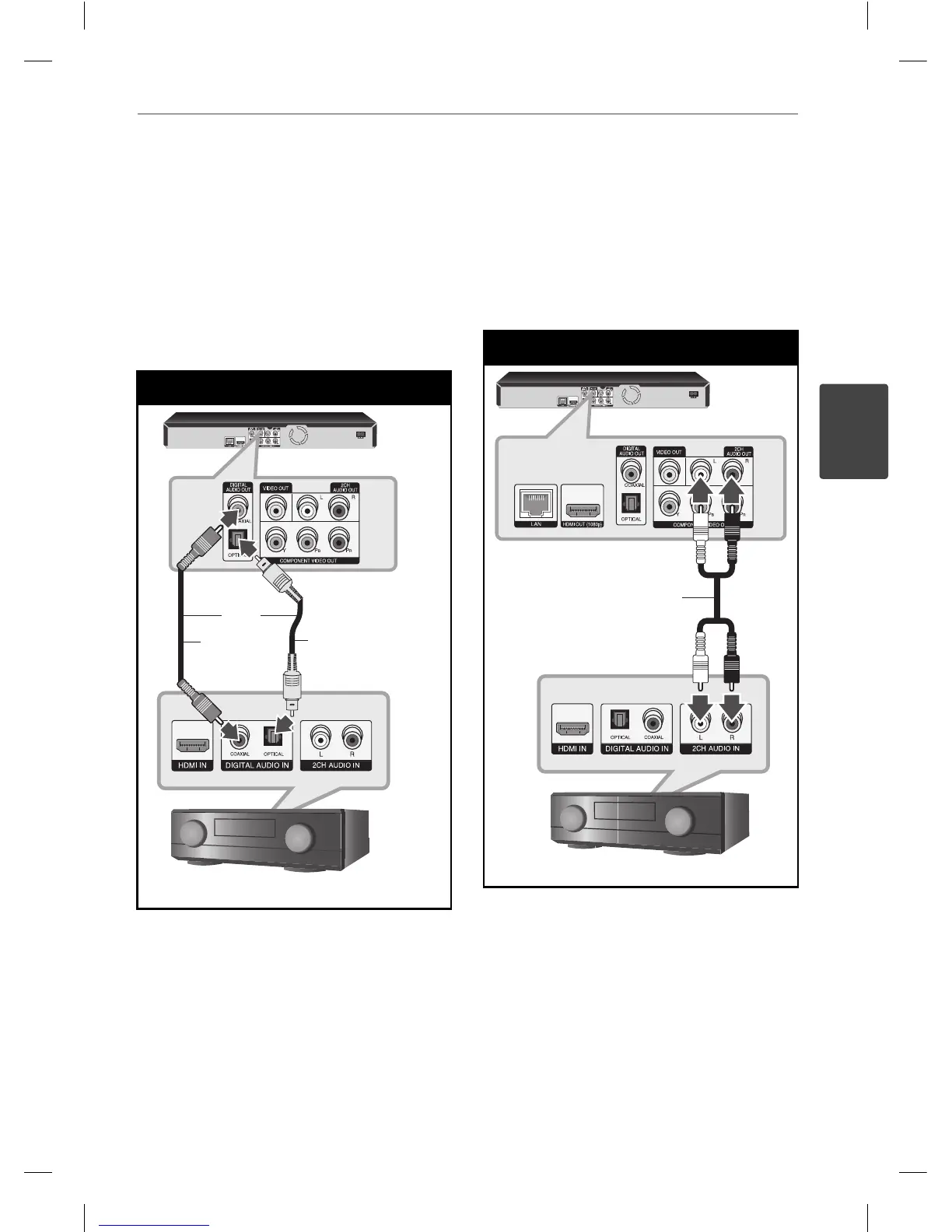

Digital Audio Connection
Coaxial
cable
Optical
cable
Receiver/Ampli er
BD Player
OR
Connecting to an Amplifi er via
2 Channel Audio Output
Connect the Left and Right 2CH AUDIO OUT
jacks on the player to the audio left and right
in jacks on your ampli er, receiver, or stereo
system using audio cables.
2CH Analog Audio Connection
Receiver/Ampli er
BD Player
Audio cable
