Connecting 17
Connecting
2

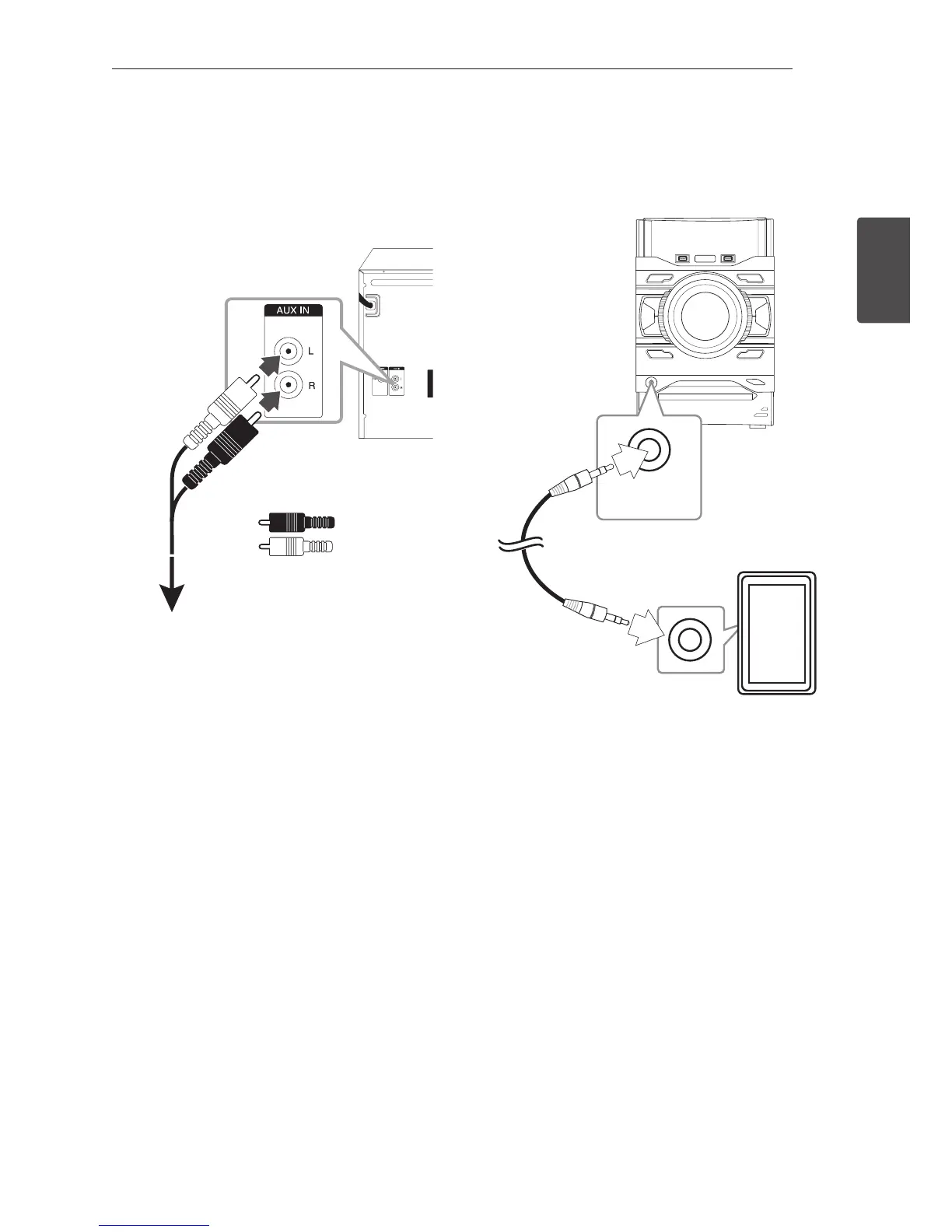

AUX IN Connection
Connect an output of auxiliary device (Camcorder,
TV, Player, etc) to the AUX IN(L/R) connector.
If your device has only one output for audio(mono),
connect it to the left (white) audio jack on the unit.
Red
White
To the audio output jacks
of your component
(Camcorder, TV, Player, etc.)
PORT.
IN Connection
Connect an output (earphone or line out) of
portable device (MP3 or PMP etc.) to the
PORT. IN connector.
PORT.IN
Listening to the sound from
your external device
The unit can be used to play the sound from many
types of external device.
1. Connect the external device to the AUX IN(L/R)
or PORT. IN connector of the unit.
2. Turn the power on by pressing 1 on the
remote control or 1/! on the unit.
3. Select the AUX or PORTABLE function by
pressing FUNCTION.
4. Turn the external device and start playing it.
