12 INSTALLATION
Dimensions and Clearances
The following clearances are recommended for the appliance.
• Additional clearances should be considered for ease of installation and servicing.
• Additional clearances should be considered on all sides of the dryer to reduce noise transfer.

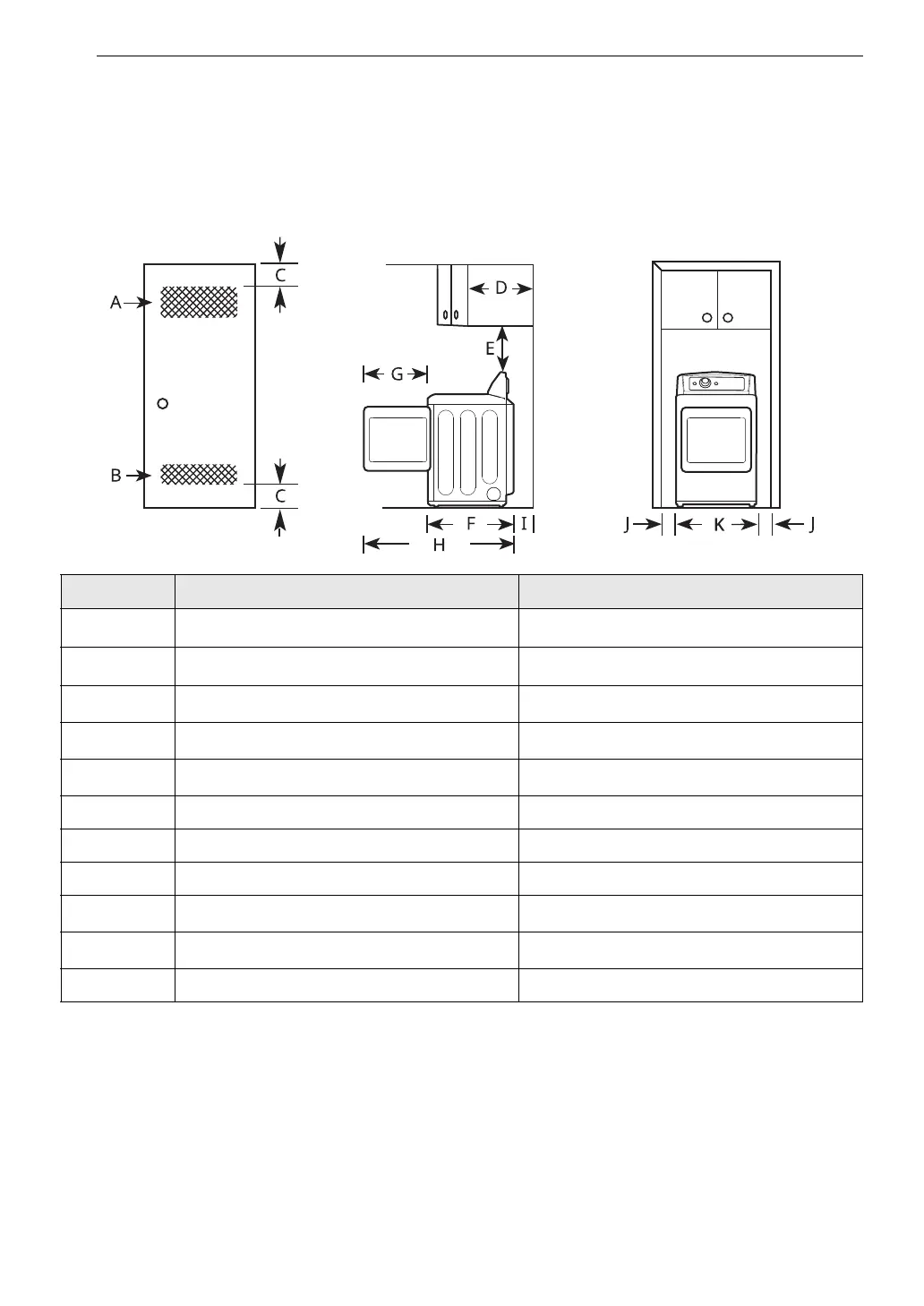

Installation Spacing for Recessed Area or Closet Installation
Closet Ventilation Requirements
Closets with doors must have both an upper and lower vent to prevent heat and moisture buildup in the
closet. One upper vent opening with a minimum opening of 48 sq. in. (310 cm
2
) must be installed no lower
than 6 feet above the floor. One lower vent opening with a minimum opening of 24 sq. in. (155 cm
2
) must
be installed no more than one foot above the floor. Install vent grilles in the door or cut down the door at
the top and bottom to form openings. Louvered doors with equivalent ventilation openings are also
acceptable.
- Description Dimension/Clearance
A Upper Ventilation Opening
2 48 sq. in. (310 cm
2
)
B Lower Ventilation Opening
2 24 sq. in. (155 cm
2
)
C Distance to Ventilation Opening
2 3″ (76 mm)
D Overhead Cabinet Depth
1 14″ (356 mm)
E Distance to the Overhead Cabinet/Shelf
2 18″ (457 mm)
F Depth 29 1/2″ (750 mm)
G Length of Door Swing 21 1/4″ (540 mm)
H Maximum Depth with Door Open 50 1/4″ (1275 mm)
IBack Clearance
2 5″ (127 mm)
J Side Clearance
2 1″ (25 mm)
KWidth 27″ (686 mm)
