18 INSTALLATION
2) While sliding the lock rod right, lift the
right end up and out of the guides.
• Do not remove the two inner lock rods and two
interlock buttons located underneath the top
lock rod. They do NOT need to be reversed.

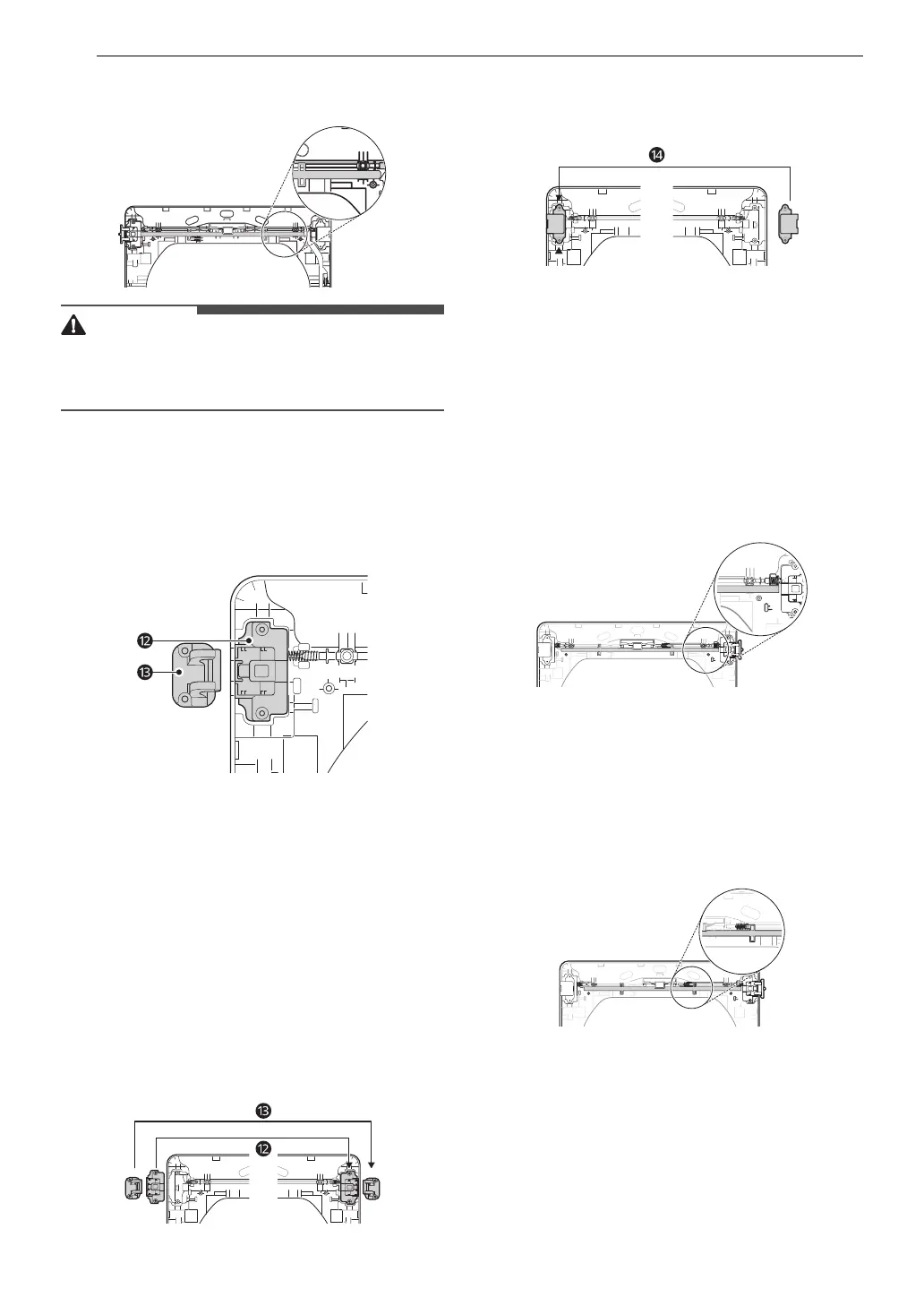

7 Remove the m upper hinge pivot.
• Once the top lock rod has been removed,
the
m hinge pivot can easily be removed
from the
l hinge assembly on the upper
left and set aside.
8 Reverse the l upper hinge assembly and n
hinge filler.
• Lift out the n upper hinge filler (on the
right) and set it aside.
• Carefully lift l the upper hinge assembly
(on the left) out of the outer door frame,
using a small flat blade screwdriver if
necessary. Rotate the l hinge assembly
180 degrees and install it on the upper right
side of the outer door. You will need to
press firmly to install the hinge assembly.
•The
m hinge pivot removed in step 8 will be
installed later.
• Now rotate the
n hinge filler 180 degrees
and install it on the upper left side of the
door.
9 Reinstall the g top lock rod.
• Rotate the top lock rod (removed in step 7)
180 degrees end for end from its original
position and reinstall it. The spring should
now be to the right of center, with the
spring on the side of the rod facing the top
of the door.
1) Insert the right end of the lock rod into
the right hinge assembly. Make sure the
rod is aligned with the guides in the door
panel.
2) Lower the rod into position, sliding it to
bypass the center handle, making sure to
align the lock rod with the guides all the
way across the door panel. When
released, the lock rod should slide
completely into the hinge assembly on
the right. Slide the lock rod back and forth
to make sure it is correctly positioned in
the guides and slides easily.
10 Reverse the i lower hinge bracket and k
hinge assembly.
1) Remove the screw from the
i lower
hinge bracket (on the right) and lift the
hinge bracket out. Set it aside. Remove
the two screws from the
k lower hinge
To Next Page
