LG DLE3170W Service Manual

9
Use the instructions under option 2 or 3 if your
home has a 3-wire receptacle (NEMA type 10-30R).
Use option 2 if local codes and ordinances permit
the connection of a chassis ground to the neutral
connector. If this is not permitted, use option 3.
            

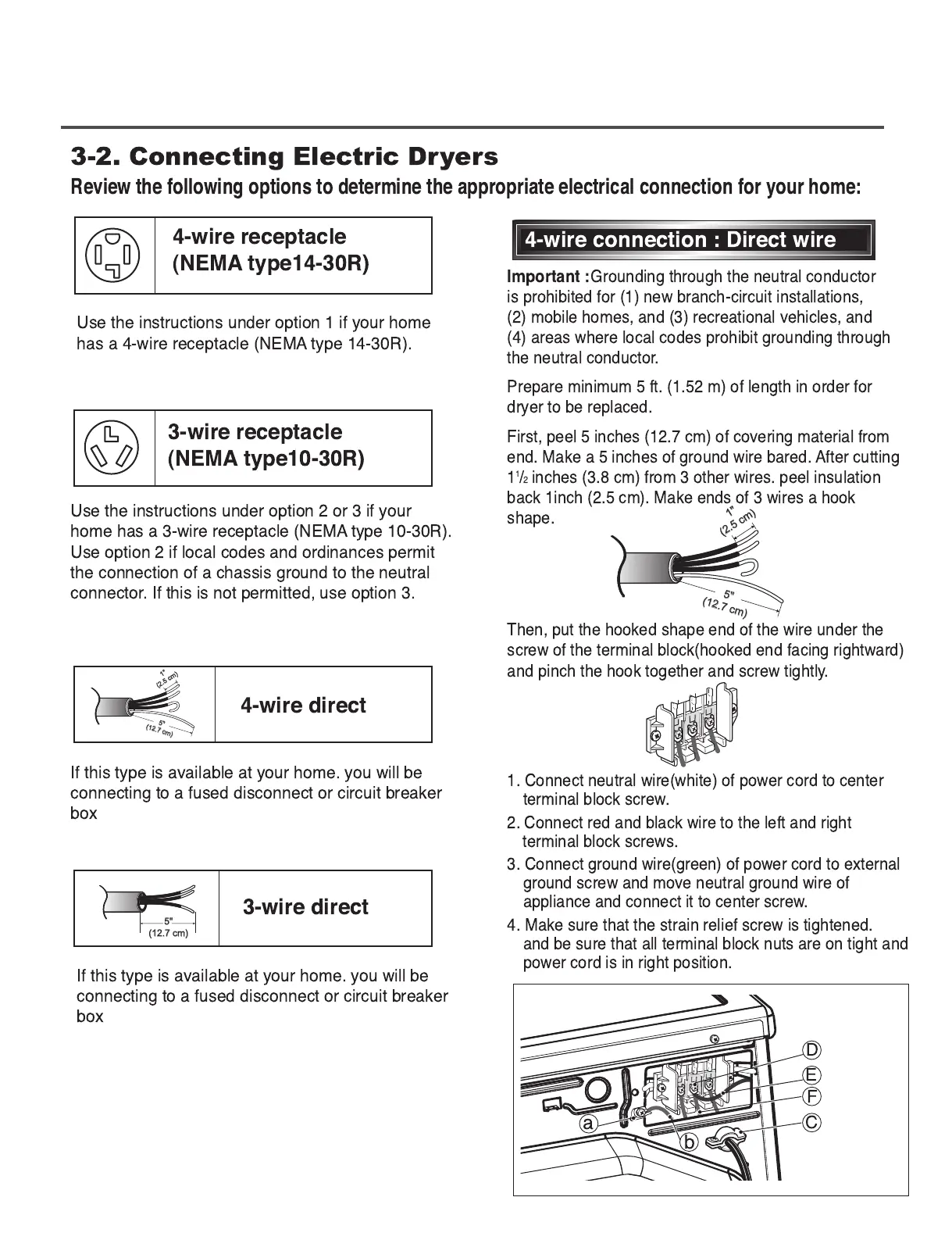

3-2. Connecting Electric Dryers
If this type is available at your home. you will be
connecting to a fused disconnect or circuit breaker
box
  Grounding through the neutral conductor
is prohibited for (1) new branch-circuit installations,
(2) mobile homes, and (3) recreational vehicles, and
(4) areas where local codes prohibit grounding through
the neutral conductor.
Prepare minimum 5 ft. (1.52 m) of length in order for
dryer to be replaced.
First, peel 5 inches (12.7 cm) of covering material from
end. Make a 5 inches of ground wire bared. After cutting
1
1
/2 inches (3.8 cm) from 3 other wires. peel insulation
back 1inch (2.5 cm). Make ends of 3 wires a hook
shape.
Then, put the hooked shape end of the wire under the
screw of the terminal block(hooked end facing rightward)
and pinch the hook together and screw tightly.
Use the instructions under option 1 if your home
has a 4-wire receptacle (NEMA type 14-30R).
If this type is available at your home. you will be
connecting to a fused disconnect or circuit breaker
box
1. Connect neutral wire(white) of power cord to center
terminal block screw.
2. Connect red and black wire to the left and right
terminal block screws.
3. Connect ground wire(green) of power cord to external
ground screw and move neutral ground wire of
appliance and connect it to center screw.
4. Make sure that the strain relief screw is tightened.
and be sure that all terminal block nuts are on tight and
power cord is in right position.
1
"
(2.5 cm
)
5
"
(12.7 cm)
 
 
  !"
 
  !!"
 
5"
(12.7 cm)
   # 
1"
(2.5 cm)
5
"
(12.7 cm
)
F
a
b
E
D
C

LG DLE3170W Specifications

General

Door hinge	Right
Drum volume	209.5 L
Control type	Buttons, Rotary
Display type	LED
Loading type	Front-load
Drying system	-
Product color	White
Built-in display	Yes
Appliance placement	Freestanding
Cycle time	- min
Noise level	- dB
Drum capacity	10.2 kg
Number of drying levels	5
Number of drying programs	8
Current	30 A
Heat source	Electric
AC input voltage	240 V
Energy consumption	- kWh
Package depth	793.8 mm
Package width	794.3 mm
Package height	1073.2 mm
Package weight	65317 g

Weight and Dimensions

Depth	755.7 mm
Width	685.8 mm
Height	982.7 mm
Weight	58967 g
Depth with door open	1295.4 mm
