10 INSTALLATION
INSTALLATION

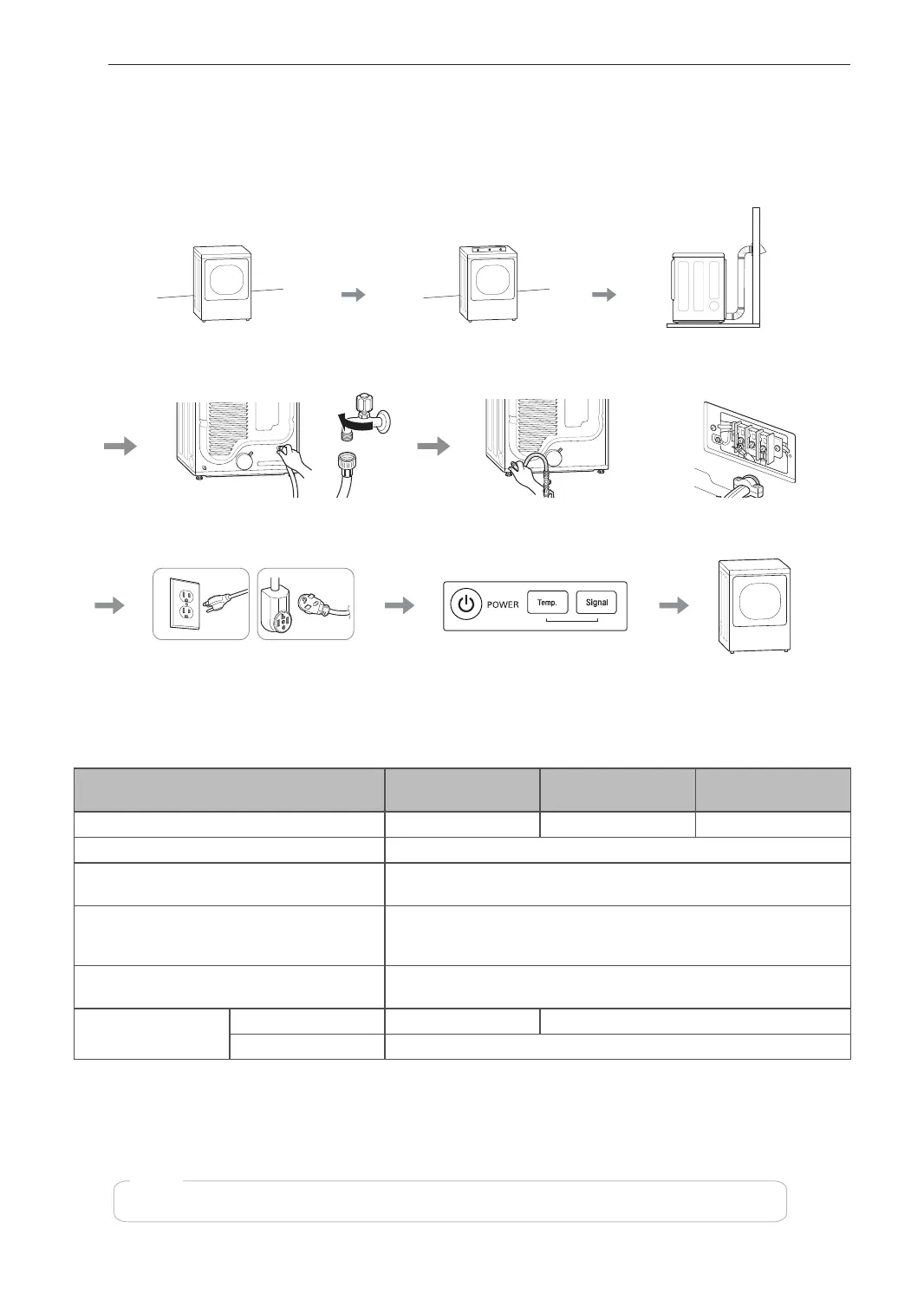

Installation Overview
Please read the following installation instructions rst after purchasing this product or transporting it to another
location.
Check and choose the
proper location
Level the dryer Vent the dryer
Product Specications
The appearance and specications listed in this manual may vary due to constant product improvements.
Dryer Models
DLE3500*/
DLG3501*
DLEX3700* /
DLGX3701*
DLEX3900* /
DLGX3901*
Description Non-steam Dryer Steam Dryer Steam Dryer
Electrical requirements Please refer to the rating label for detailed information.
Gas requirements
NG: 4 - 10.5-inch (10.2 - 26.7 cm) WC
LP: 8 - 13-inch (20.4 - 33.1 cm) WC
Dimensions
27” (W) X 30.2” (D) X 39” (H), 51.4” (D with door open)
68.6 cm (W) X 76.5 cm (D) X 99 cm (H), 130.5 cm (D with door
open)
Net weight
Gas : 123.02 lb (55.8kg) - 126.77 lb (57.5kg)
Electric : 120.15 lb (54.5kg) - 123.46 lb (56kg)
Drying capacity
Steam Cycle - IEC 7.4 cu.ft. (8 lb/3.6 kg)
Normal Cycle IEC 7.4 cu.ft. (22.5 lb/10.2 kg)
Electric dryerGas dryer
Connect the Electric dryerConnect the Gas dryerConnect the inlet hose
(steam models)
Test runInstallation test
Model numbers can be found on the cabinet inside the door.
NOTE
Plug in the power cord

LG DLE3500W Specifications

General

Type	Electric
Capacity	7.4 cu. ft.
Color	White
Voltage	240 V
Reversible Door	Yes
ENERGY STAR Qualified	Yes
Drum Light	Yes
Width	27 inches
Dryer Venting	4-Way Venting
Features	Sensor Dry, Wrinkle Care
