LG DLE3733 - Outlet Thermostat Testing (Auto & Manual Reset)

16

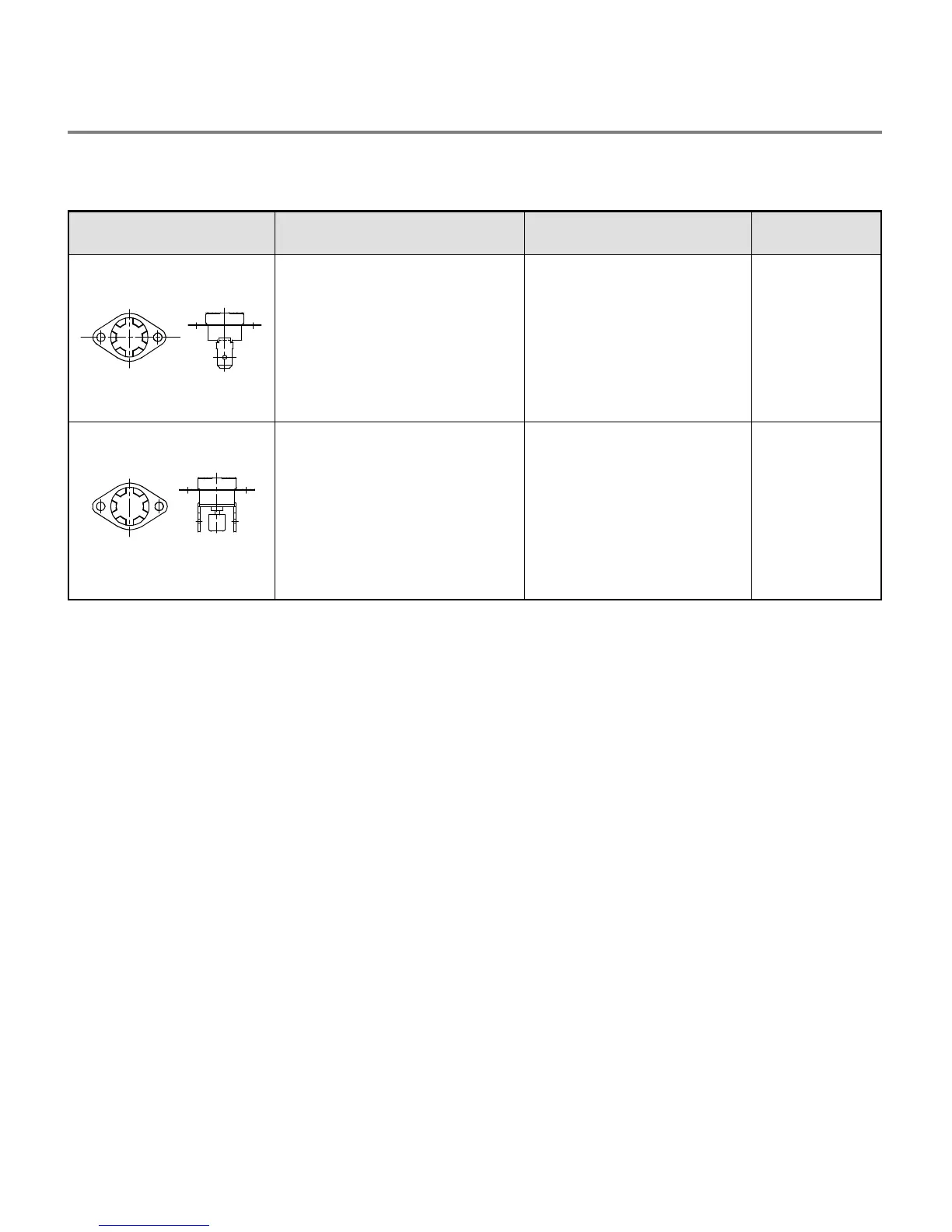

Component Test Procedure Check result Remark
13. Outlet Thermostat
(Auto reset)
• Check Top Marking:
N95
Measure resistance of terminal
to terminal
󳡉
Open at 203
±
7°F (95
±
5°C)
󳡊
Close at 158
±
9°F (70
±
5°C)
󳡉
Resistance value
≒
∞
󳡊
Continuity < 1Ω
• Gas type
• Gas funnel
14. Outlet Thermostat
(Manual reset)
• Check Top Marking:
N100
Measure resistance of terminal
to terminal
󳡉
Open at 212
±
12°F
(100
±
7°C)
󳡊
Manual reset
If thermal fuse is open must
be replaced
󳡉
Resistance value
≒
∞
󳡊
Continuity < 1Ω
• Gas type
• Gas funnel
