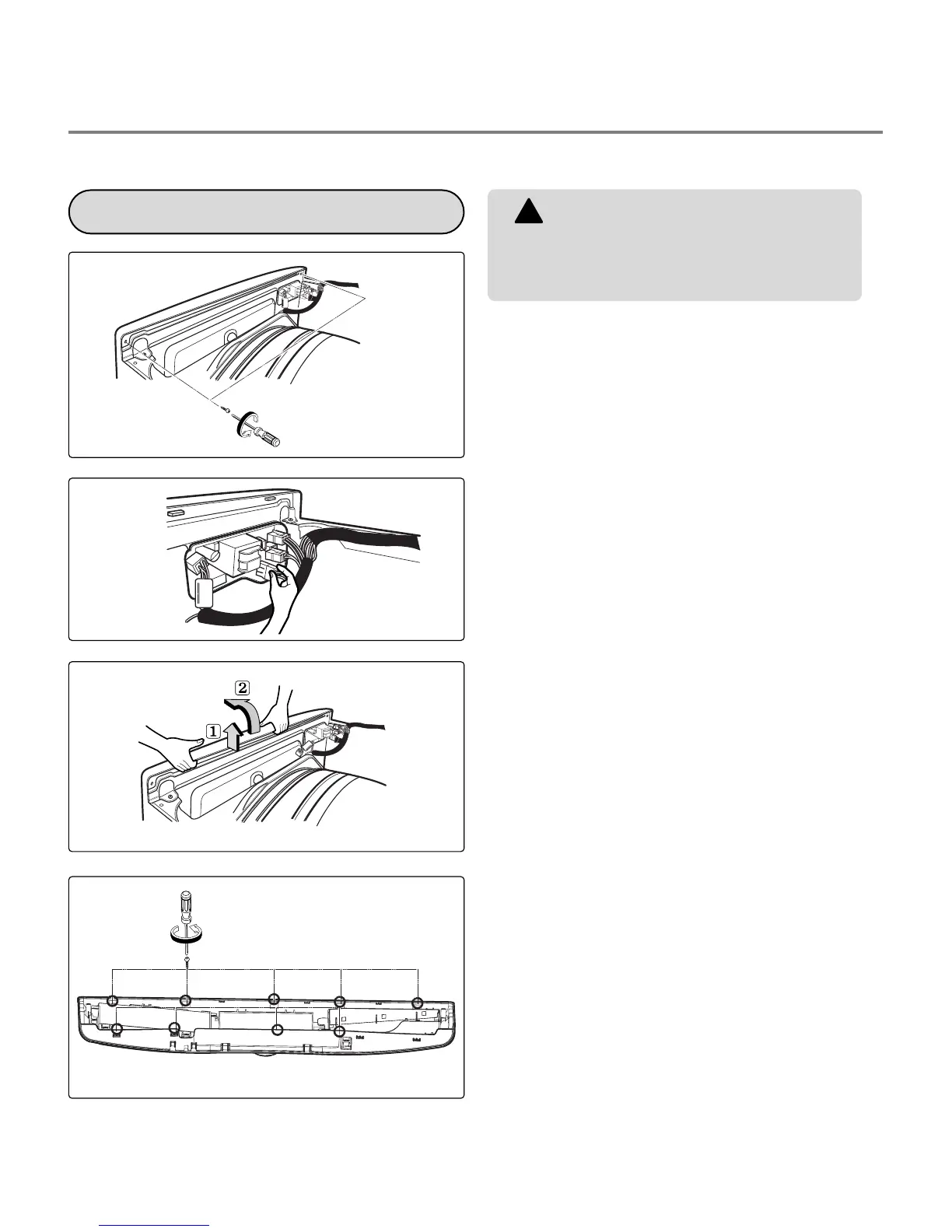

CONTROL PANEL ASSEMBLY
1.
Remove 2 screws on the control panel
frame.
2.
Disconnect the connectors.
3.
Pull the control panel assembly upward and
then forward.
4.
Remove 9 screws on the PWB(PCB)
assembly, display.
5.
Remove 4 screws on the PWB(PCB)
assembly, main.
6.
Disassemble the control panel assembly.
When you disassemble the control panel, be
sure to take gloves and careful panel frame’s
edge. Failure to do so can cause serious injury.
