13INSTALLATION
ENGLISH
Dimensions and Clearances
The following clearances are recommended for the appliance.
Additional clearances should be considered for ease of installation and servicing.
Additional clearances should be considered on all sides of the dryer to reduce noise transfer.

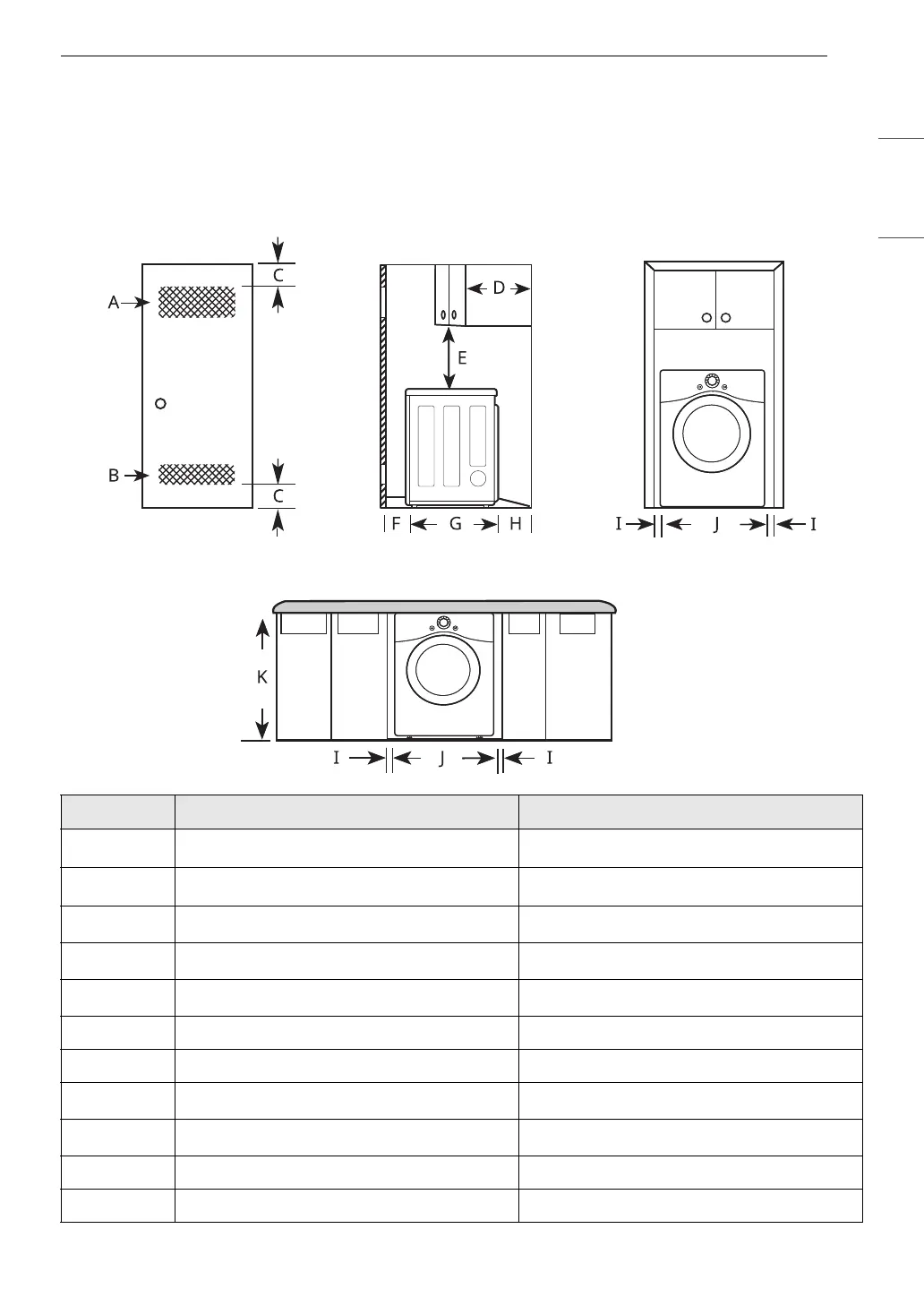

Installation Spacing for Recessed Area or Closet Installation
- Description Dimension/Clearance
A Upper Ventilation Opening
2 48 sq. in. (310 cm
2
)
B Lower Ventilation Opening
2 24 sq. in. (155 cm
2
)
C Distance to Ventilation Opening
2 3 (76 mm)
D Overhead Cabinet Depth
1 14 (356 mm)
E Distance to the Overhead Cabinet/Shelf
2 18 (457 mm)
F Front Clearance 1 (25 mm)
G Depth 29 3/4 (756 mm)
HBack Clearance
2 5 (127 mm)
I Side Clearance
2 1 (25 mm)
JWidth 27 (686 mm)
K Height of Cabinet Opening 39 (989 mm)
