56 57
54 55
AIR DUCT
ROLLERS
1.
Disassemble the top plate.
2.
Remove the cover cabinet.
3.
Remove the filter.
1.
Remove the cover guide.
2.
Remove 2 screws.
3.
Remove the air duct.
1.
Disassemble the top plate.
2.
Remove the cover cabinet and front bulkhead.
3.
Remove the drum assembly and front bulkhead.
4.
Disconnect the air duct from the front bulkhead.
5.
Remove the rollers from the
front bulkhead.
and rear bulkhead.
56

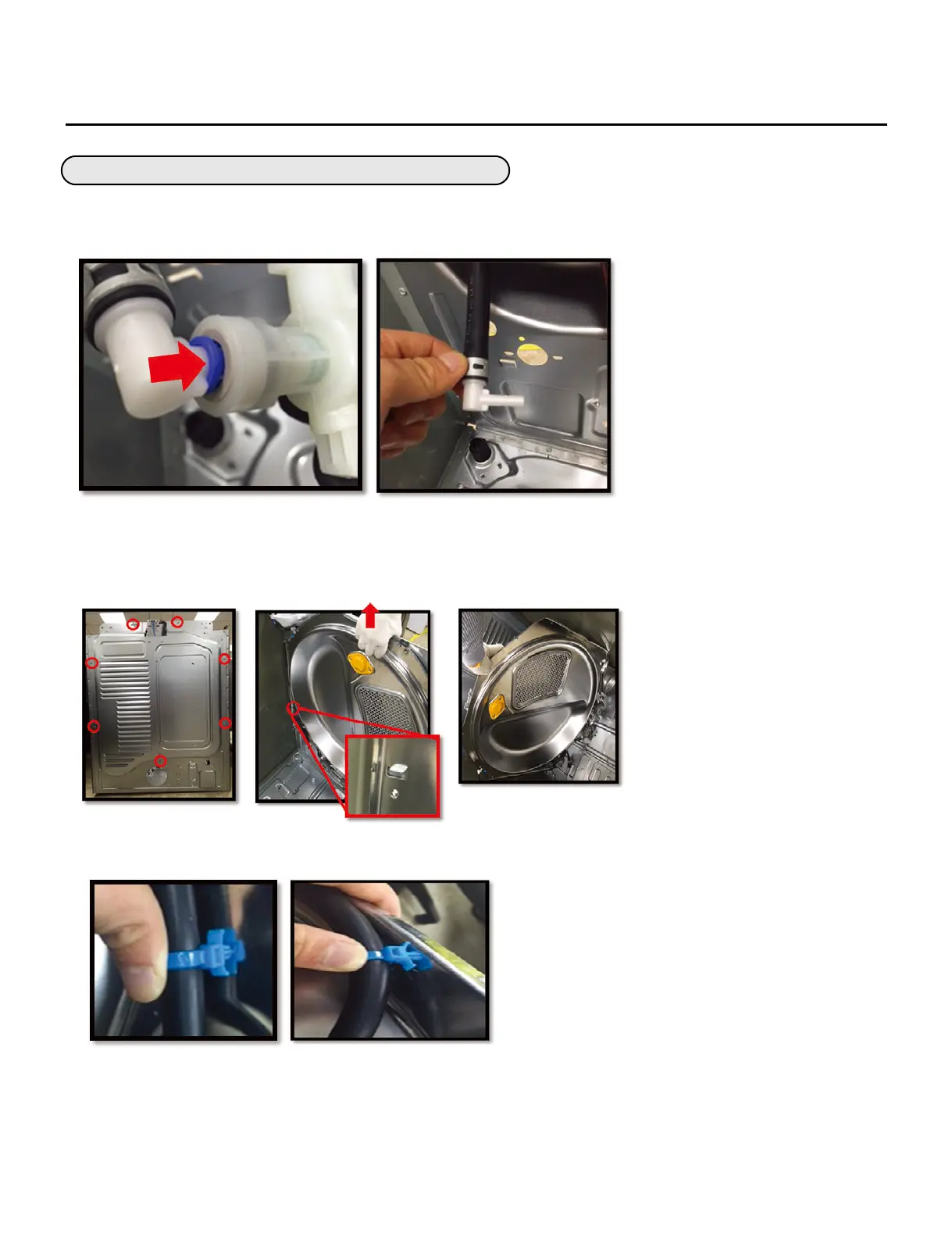

Replacing the Inlet Hose
1. Press and hold the release ring to remove the hose from
the nozzle.
2. Remove the 7 screws from the rear cover.
3. Lift the rear tub off the support and pull it out.
4. Replace the hose, and assemble the cable tie holder in the rear tub.
52
5. Remove the hose in generator.
6. Remove the cable tie holder in the rear tub.
7. Replace the hose, and assemble the cable tie holder in the rear tub.
8. After connection the hose to the generator, install the clamp.
