LG DLG3601 Series Service Manual
4
of 1
of 1 rating
66 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
60
61
59
54

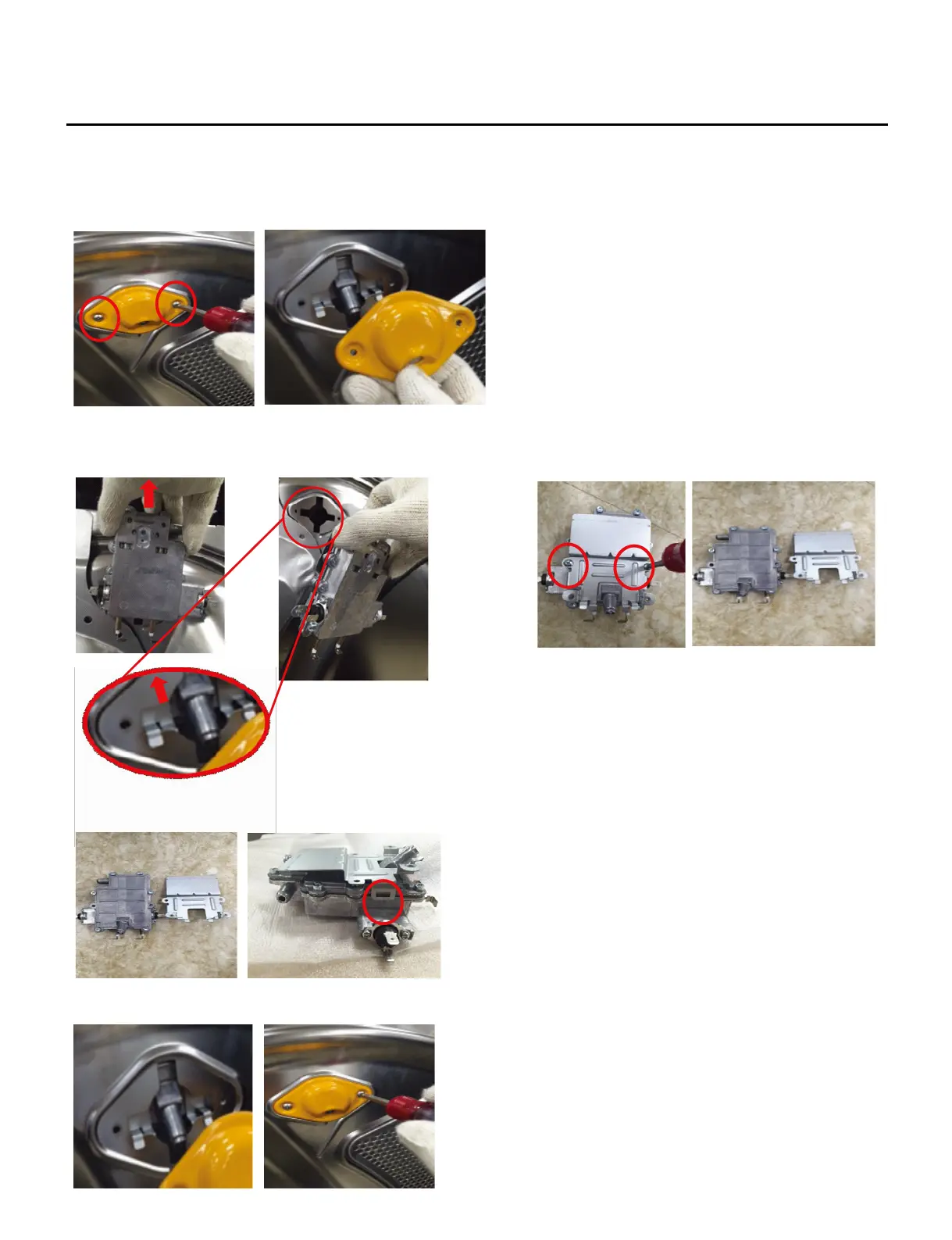

1. Remove the cover and screws.
2. To remove the rear tub, take off the steam
generator first. Then remove the rear tub.
5. Assemble the cover and screws.
3. Remove the bracket from the
steam generator.
4. Reassemble the steam generator and bracket.
59
61
Table of Contents
Table of Contents
3
Specifications
4
Features and Benefits
6
Installation Instructions
6
Dryer Cycle Process
14
Component Testing Information
17
Motor Diagram and Schematic
20
Wiring Diagram
21
Steam Function
23
Steam Cycle Guide
23
Troubleshooting for Steam Dryer
24
Display Fault/Error Codes for Steam Dryer
25
Troubleshooting with Symptom
26
Flow Sensor Function
34
Flow Sensor
34
Installation Test (Exhaust Check)
35
Diagnostic Test
37
Test 1 120V Ac Electrical Supply
38
Test 2 Thermistor Test - Measure with Power off
41
Test 3 Motor Test
42
Test 4 Moisture Sensor
43
Test 5 Door Switch Test
44
Test 6 Heater Switch Test - Electric Type
45
Test 7 Gas Valve Test - Gas Type
46
Test 8 Motor Assembly, DC, Pump
47
Change Gas Setting (Natural Gas, Propane Gas)
48
Disassembly Instructions
50
Exploded View
61
Control Panel and Plate Assembly
61
Panel Drawer Assembly and Guide Assembly
62
Cabinet and Door Assembly: Gas Type
63
Drum and Motor Assembly: Electric Type
64
Drum and Motor Assembl: Gas Type
65
Other manuals for LG DLG3601 Series
Owner's Manual
131 pages
Manual
35 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the LG DLG3601 Series and is the answer not in the manual?
Ask a question
LG DLG3601 Series Specifications
General
Brand
LG
Model
DLG3601 Series
Category
Dryer
Language
English
