LG DLGX3371W - Wiring Diagrams; Electric Dryer Wiring Diagram; Gas Dryer Wiring Diagram

LG DLGX3371W
64 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
7

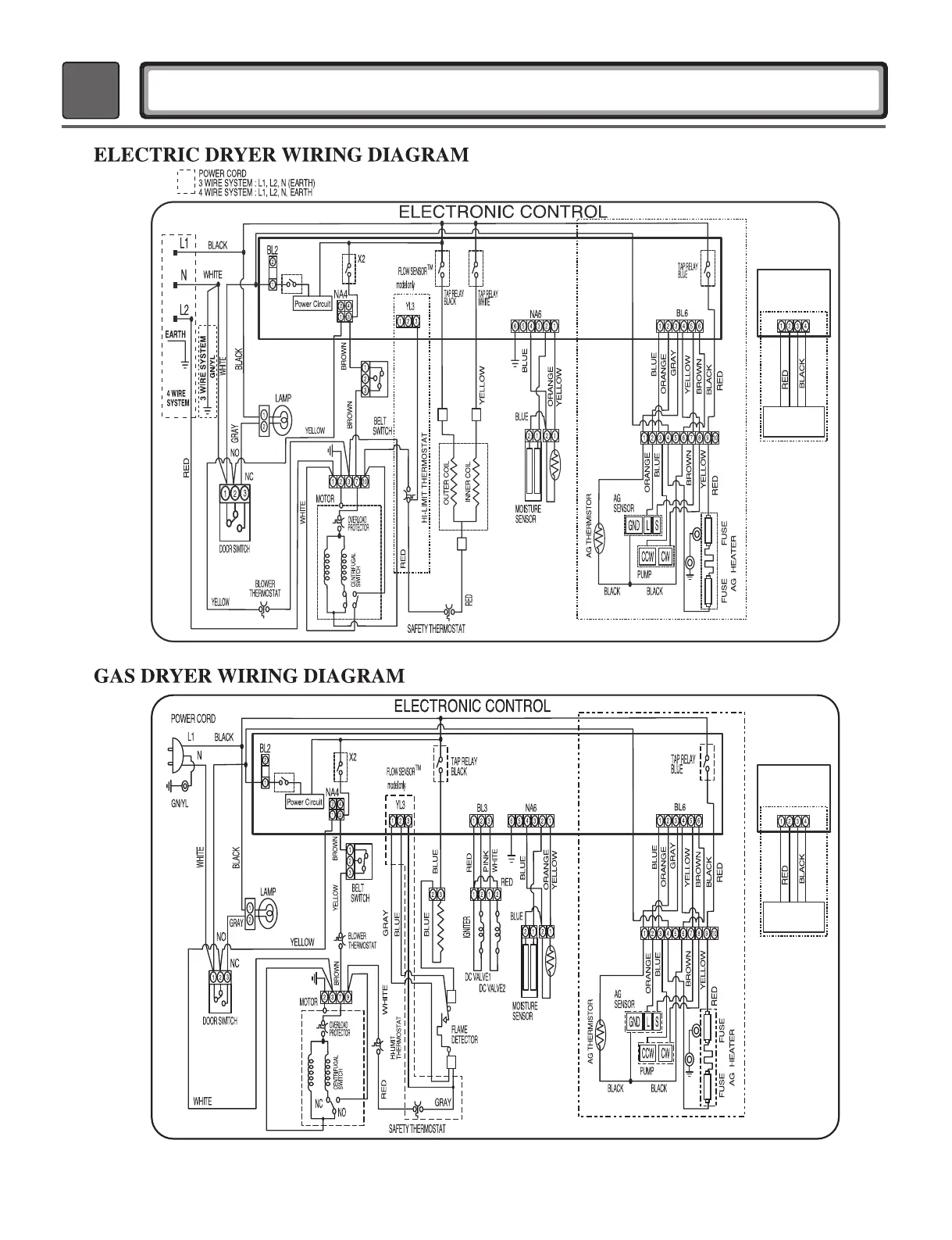

WIRING DIAGRAM
HEATER
THERMISTOR
THERMISTOR
GREEN
Smart Modem
Connector
DISPLAY PCB
MAIN PCB
MAIN PCB
SMART READY
model only
GREEN
YELLOW(WHITE)
Smart Modem
Connector
DISPLAY PCB
SMART READY
model only
STEAM model only
STEAM model only
YELLOW(WHITE)
