LG DLGX3571 series Service Manual

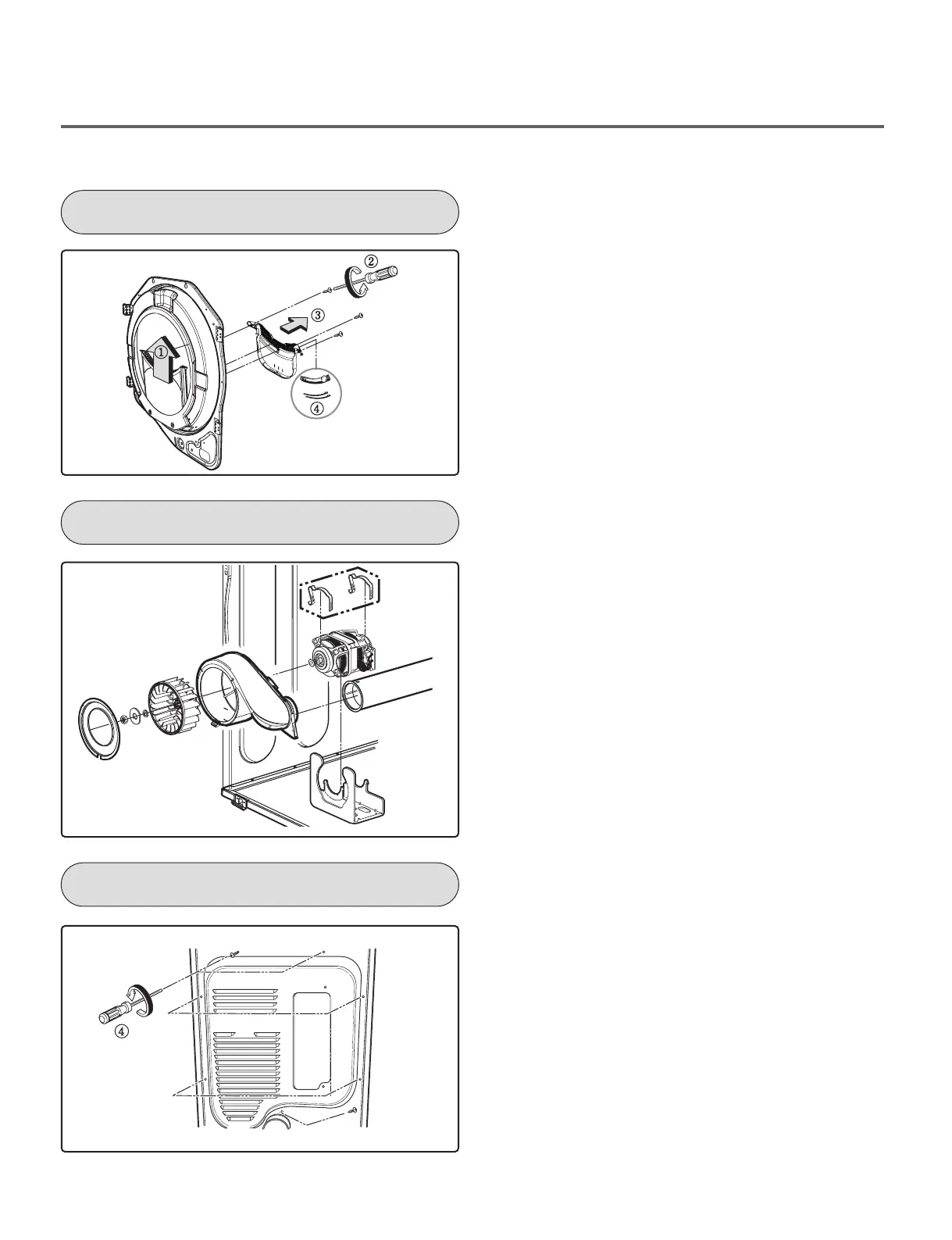

FILTER ASSEMBLY
BLOWER HOUSING
BACK COVER
1.
Remove the filter.
2.
Remove 3 screws.
3.
Remove the cover grid.
4.
Disconnect the electrode sensor.
1.
Disassemble the top plate.
2.
Remove the cabinet cover and front bulkhead.
3.
Remove the drum assembly.
4.
Remove 2 screws and cover (Air guide).
5.
Remove the bolt and washer.
1.
Open the top plate.
2.
Remove the cover cabinet and front bulkhead.
3.
Remove the drum assembly.
4.
Remove 7 screws.
5.
Pull the rear bulkhead towards the front.
6.
Remove the blower wheel. (Left-hand thread!).
7.
Disconnect the motor clamp and motor.
