7

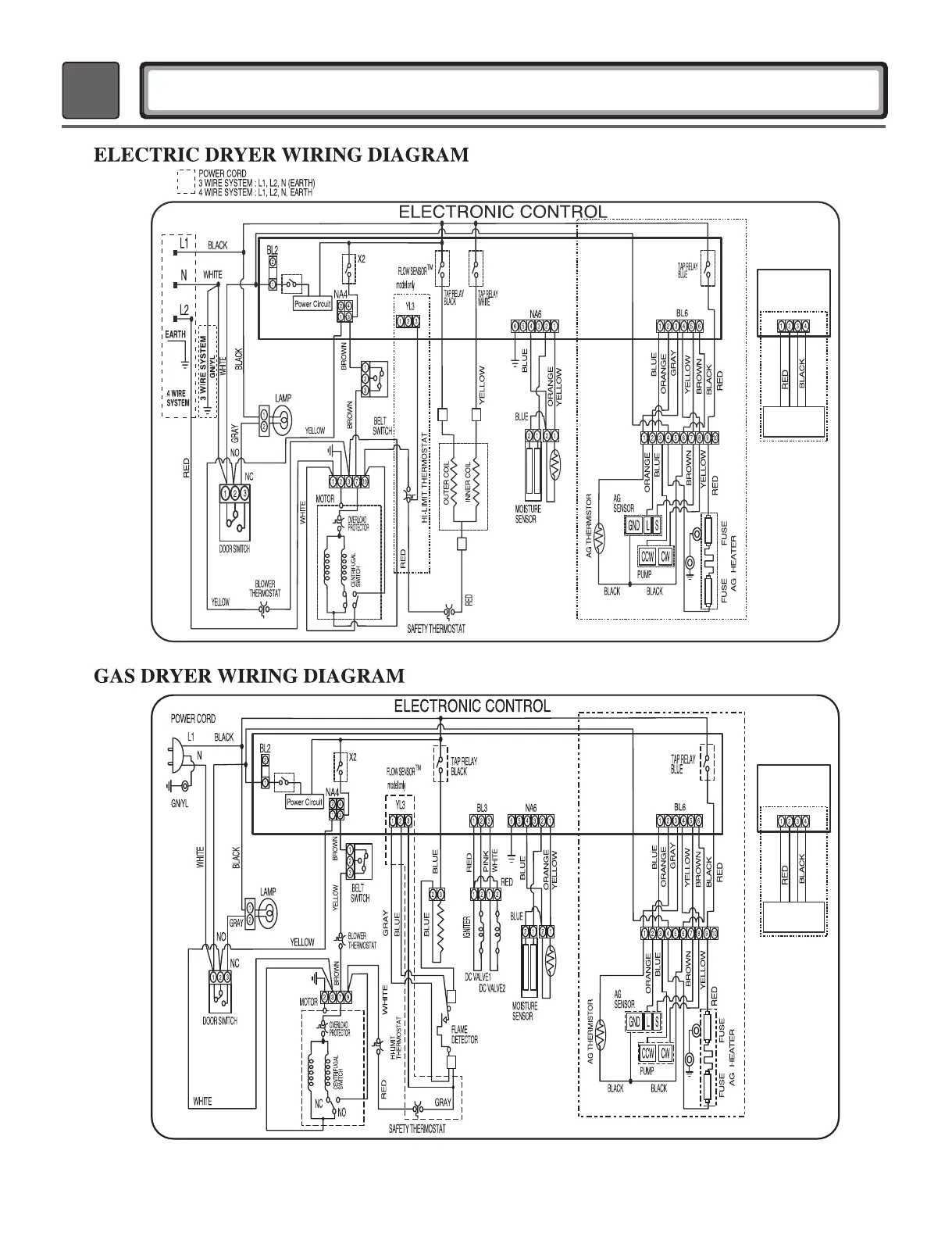

WIRING DIAGRAM
HEATER
THERMISTOR
THERMISTOR
GREEN
Smart Modem
Connector
DISPLAY PCB
MAIN PCB
MAIN PCB
SMART READY
model only
GREEN
YELLOW(WHITE)
Smart Modem
Connector
DISPLAY PCB
SMART READY
model only
STEAM model only
STEAM model only
YELLOW(WHITE)
18
