Before measuring resistance, be sure to turn the power off and discharge voltage.
(When discharging, contact the metal plug of power cord with the ground.)
During diagnostic test, tE1 and tE2, an error occurs.
During operation, the heater does not turn off.
Difference between actual and sensed temperature is significant.
After turning power off, measure the resistance.
Short with metal between the NA6 connector’s
Pin ① (Yellow Wire) and Pin ④ (Blue Wire) to
Controller.
• Check if control
and the 6-pin
connector are
properly
connected.
• Replace
controller
• Replace
thermistor.

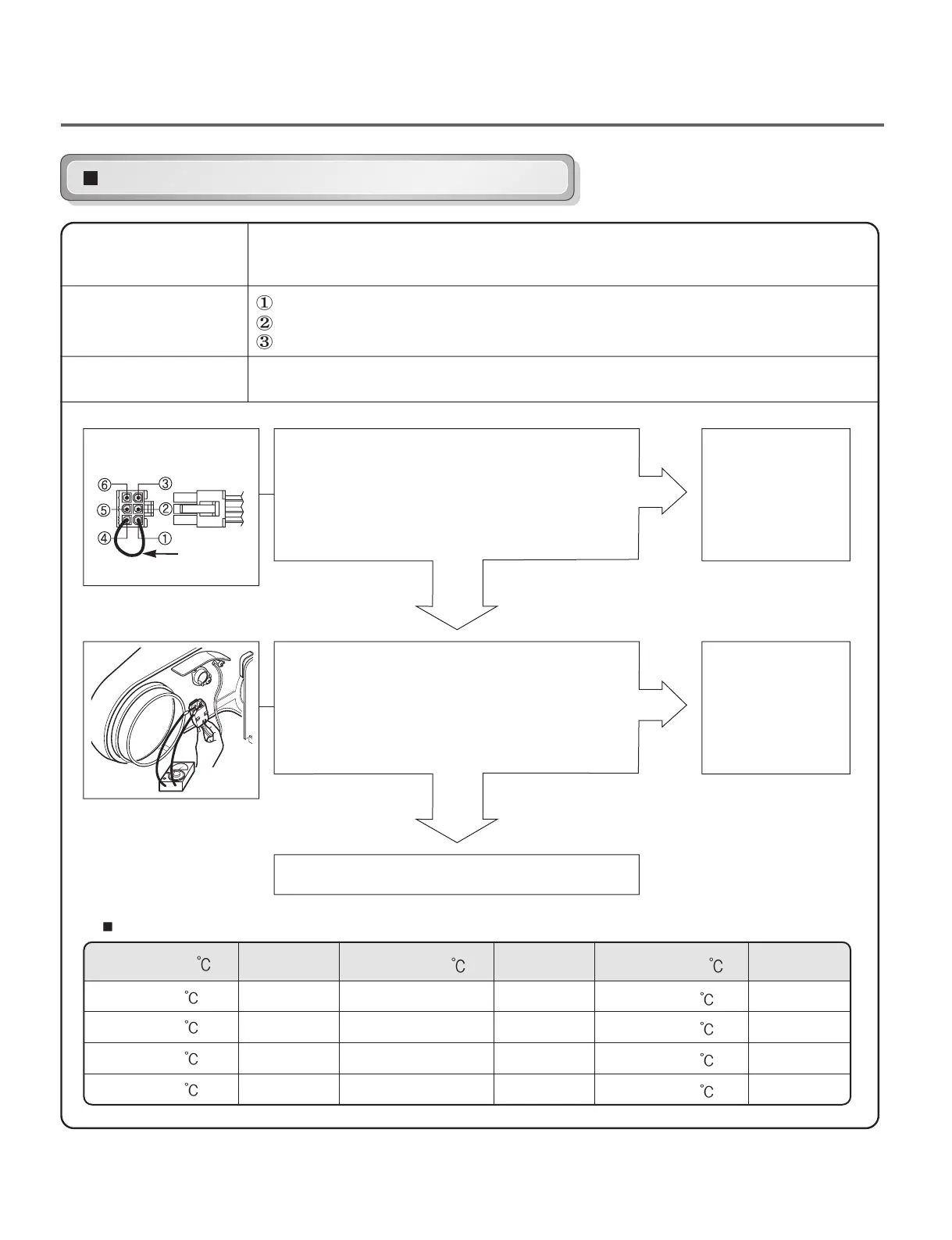

Check if resistance is in the range of Table 1
when measuring resistance between
terminals after separating harness
from thermistor assembly connector.
Check harness-linking connector.
NO
NO
YES
YES
Table 1. Resistance for Thermistor Temperature.
Air TEMP.
[°F(
)]
50°F (10
)
60°F (16
)
80°F (21
)
70°F (27
)
Air TEMP.
[°F(
)]
90°F (32°C)
100°F (38°C)
110°F (43°C)
120°F (49°C)
RES.
[K
Ω]
18.0
14.2
11.7
9.3
RES.
[K
Ω]
7.7
6.2
5.2
4.3
RES. [KΩ]
2.9
3.0
2.5
2.2
Air TEMP.
[°F(
)]
130°F (54
)
140°F (60
)
150°F (66
)
160°F (71
)
Caution
Trouble Symptom
Measurement Condition
Metal or Wire
Take 6-pin Connector from
the Controller.
To Next Page
