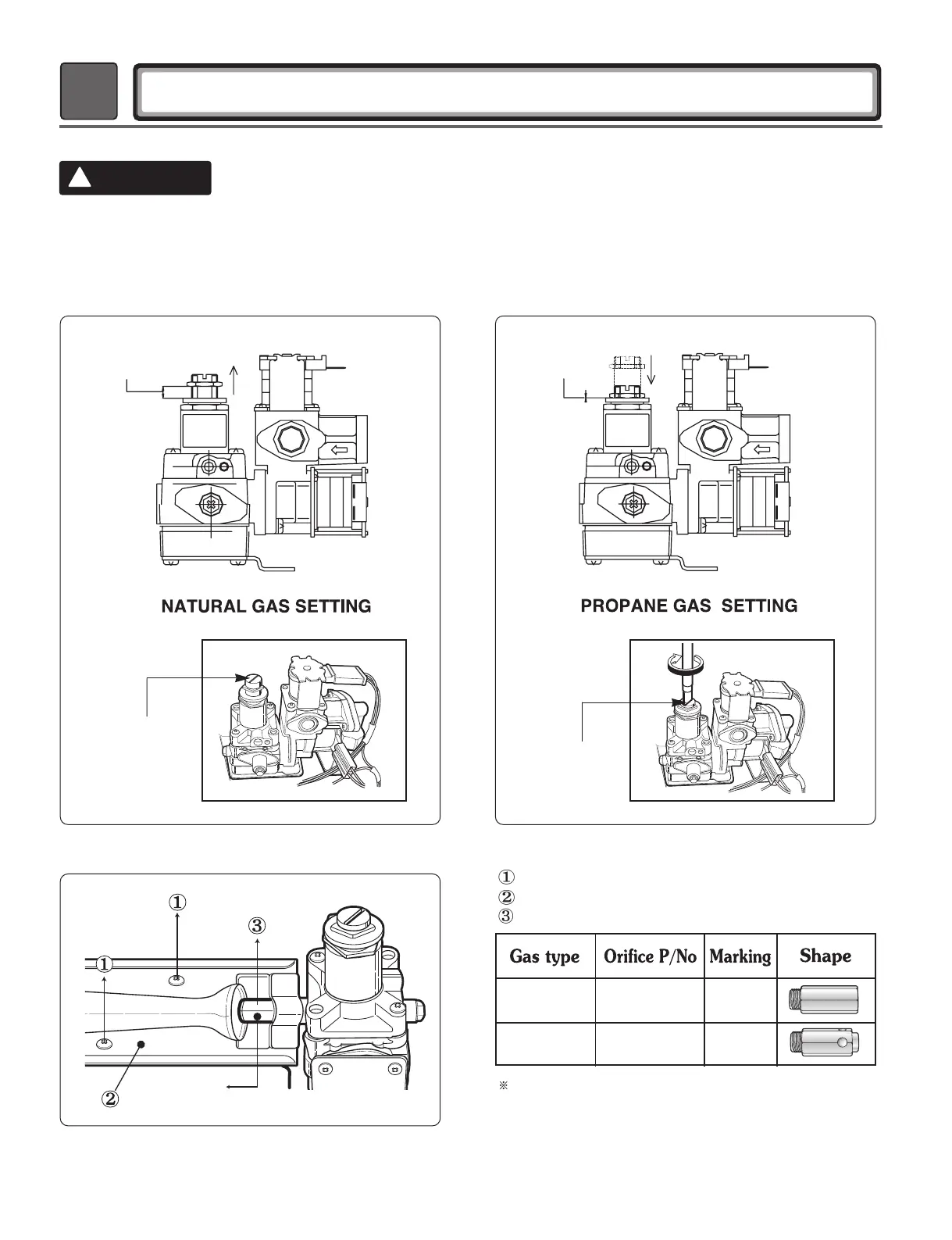

CHANGE GAS SETTING (NATURAL GAS, PROPANE GAS)
Natural Gas mode is set. Propane Gas Orifice is on sale as a Service
Part to authorized servicers only.
z{lwGXGaG}hs}lGzl{{pun
z{lwGYGaGvypmpjlGjohunlG
Natural Gas
Propane Gas
4948EL4001B
4948EL4002C
Kit contents: Orifice (Dia. = 1.47 mm, for Propane Gas)
Replacement Label
Instruction Sheet
NCU
PCK
Remove 2 screws.
Disassemble the pipe assembly.
Replace natural gas orifice with propane gas orifice.
Opened
Closed
Full open
Adjustment screw
Close
Adjustment screw
Orifice
Initially,
jGGGGGGGGGG
GVGUGjGGGGGGG

!
Warning
The burner is set for natural gas at the factory. The propane orifice
conversion kit is sold as a service part to autherized servicers only.
Part numbers are shown below.
