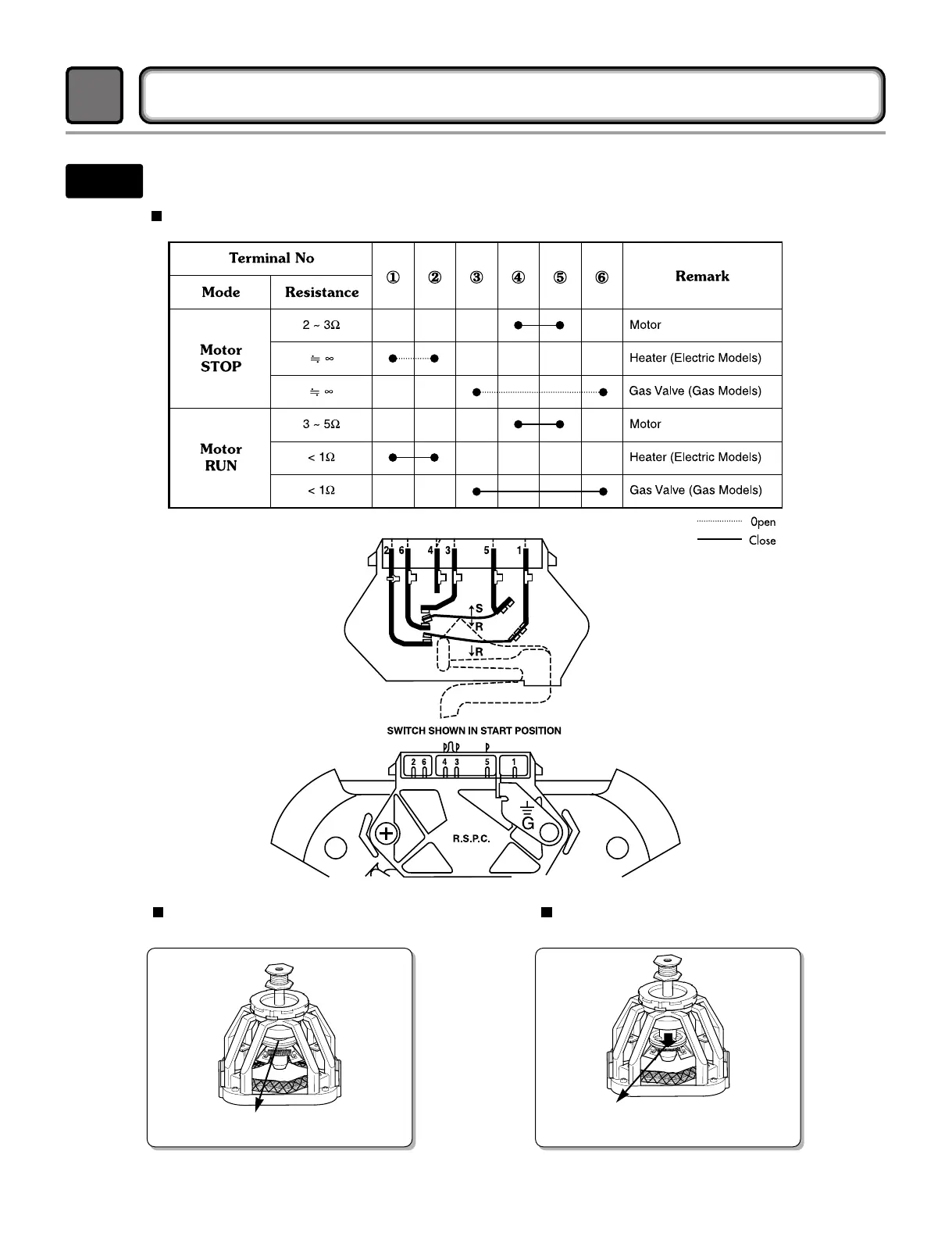

MOTOR DIAGRAM AND SCHEMATIC
6
Contact On / Off by Centrifugal Switch
STOP MODE
(When Motor does not operate)
RUN MODE
(Motor operates)
When checking components, turn the power off and discharge voltage.
NOTE
Centrifugal switch
Centrifugal switch
(Pull Drive forward)
