5. Remove the hose in generator.
6. Remove the cable tie holder in the rear tub.
7. Replace the hose, and assemble the cable tie holder in the rear tub.
8. After connection the hose to the generator, install the clamp.
58 59
53

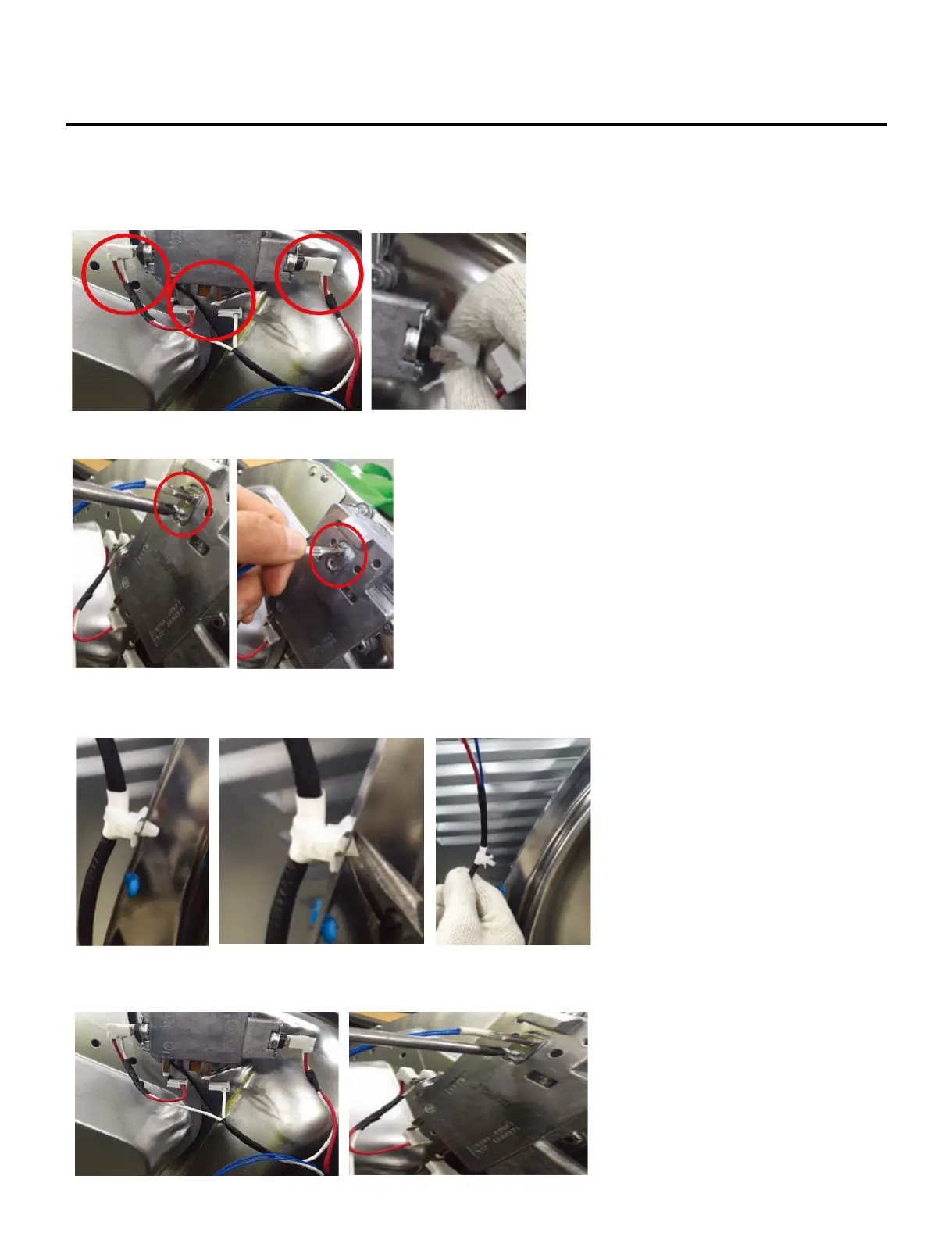

1. Remove the six connectors from the generator.
2. Remove the thermistor screw from the generator.
3. Remove the steam harness cable tie holder in the rear tub.
4. Replace the steam harness and assemble the cable tie holder in the rear tub.
5. Assemble the steam harness.
6. Attach the thermistor and the screws to the generator.
