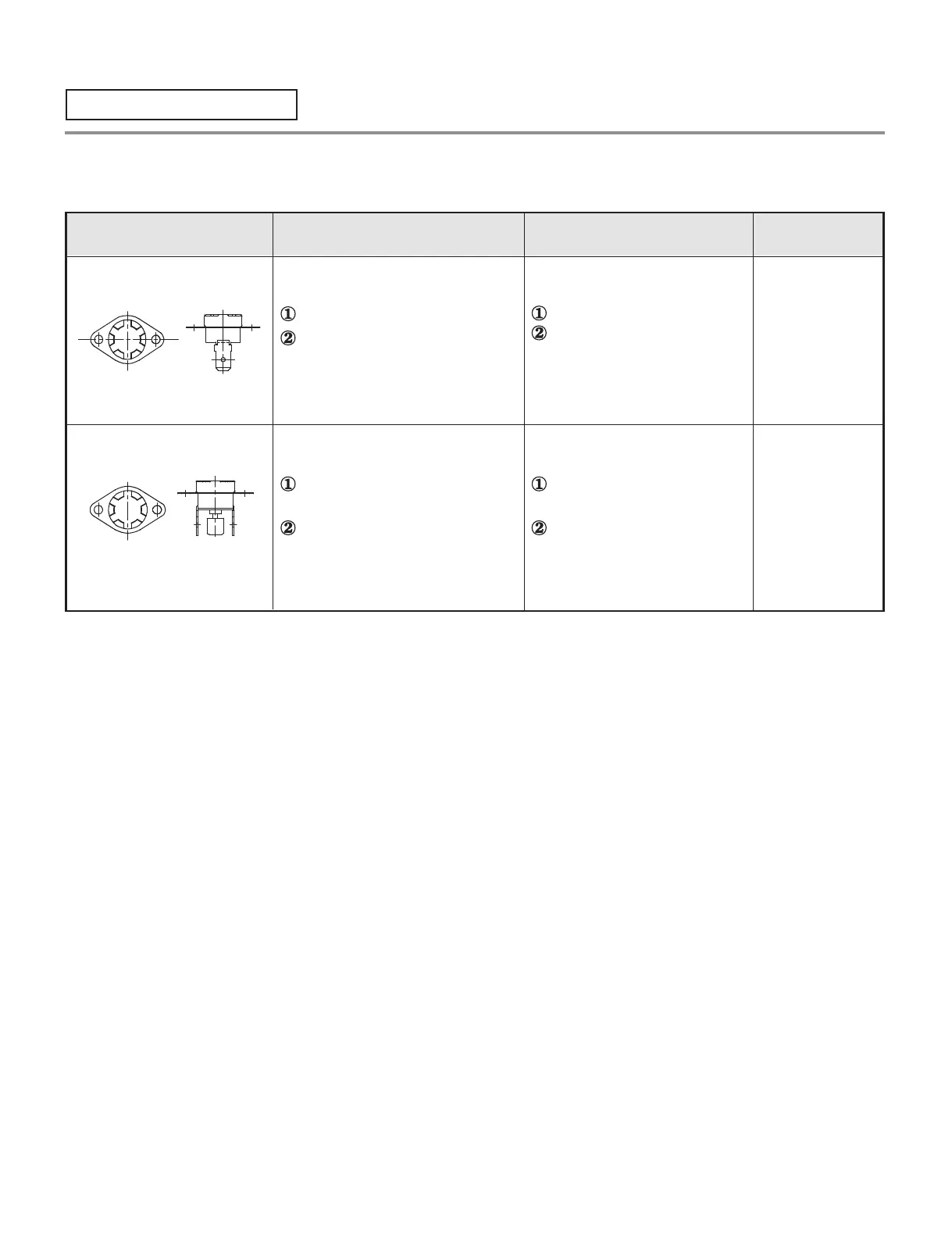

Component Test Procedure Check result Remark
13. Outlet Thermostat
(Auto reset)
• Check Top Marking:
N95
Measure resistance of terminal
to terminal
Open at 203
±
41°F (95
±
5°C)
Close at 158
±
41°F (70
±
5°C)
Resistance value
୒

Continuity <1
• Gas type
• Gas funnel
14. Outlet Thermostat
(Manual reset)
• Check Top Marking:
N110
Measure resistance of terminal
to terminal
Open at 230
±
41°F
(110
±
5°C)
Manual reset
Resistance value
୒

Continuity <1
• Gas type
• Gas funnel
