LG DLGX4271 /01 Series

52 53

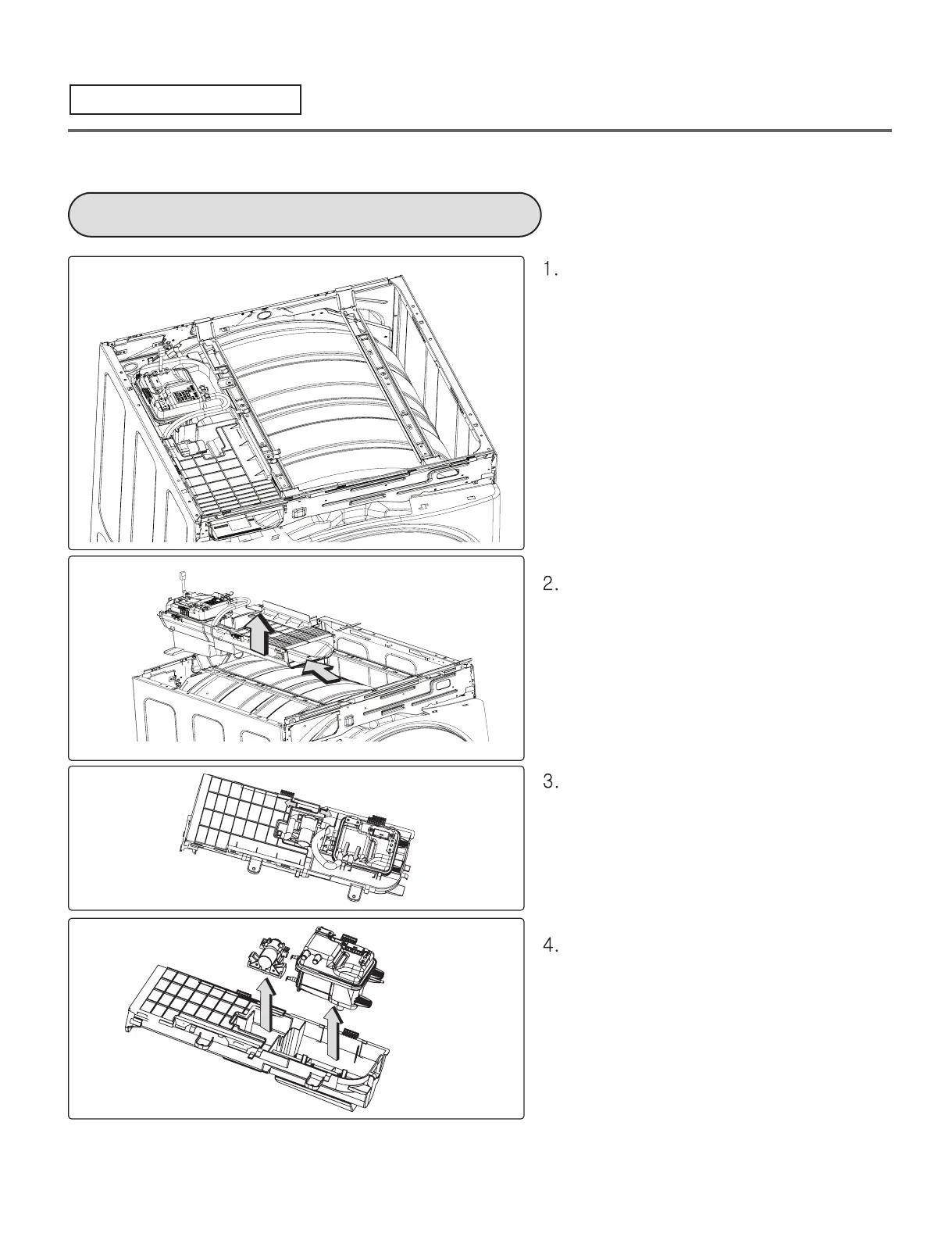

Remove 3 screws on the frame body.
Push the guide assembly to the back
side and then lift it.
Separate 2 hoses from the pump and
generator.
Lift a pump and generator up.
GUIDE ASM
GUIDE ASM
FOR LG TECHNICIAN
Remove 2 screws on the frame body .
Push the guide assembly to the back
side and then lift it.
Separate 2 hoses from the pump and
generator.
Lift a pump and generator up.
GUIDE ASM
GUIDE ASM
