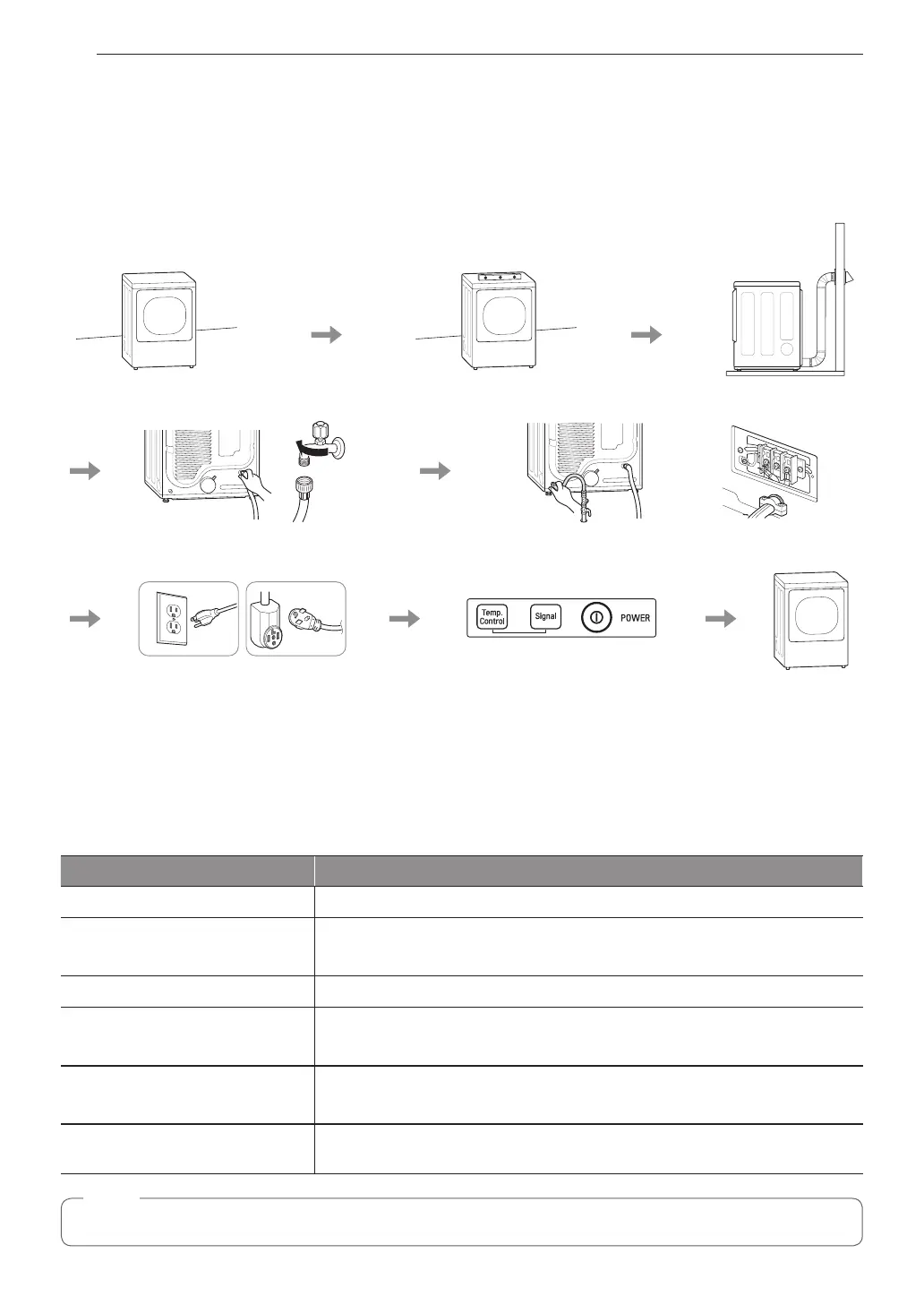

Installation Overview
Please read the following installation instructions first after purchasing this product or transporting it to another
location.
Check and choose
the proper location
Connect the inlet hose
(steam models)
Connect gas dryers
Connect electric dryers
Plug in the power cord Installation test Test run
Gas dryer Electric dryer
Level the dryer
Vent the dryer
Product Specifications
The appearance and specifications listed in this manual may vary due to constant product improvements.
Dryer Models DLEY1901*E, DLGY1902*E
Electrical requirements Please refer to the rating label regarding detailed information.
Gas requirements
NG: 4–10.5-inch WC
LP: 8–13-inch WC
Max. water pressure 20–120 psi (138–827 kPa)
Dimensions
27” (W) X 28 15/16” (D) X 40 3/16” (H), 50 1/4” (D with door open)
68.6 cm (W) X 73.4 cm (D) X 102 cm (H), 127.5 cm (D with door open)
Net weight
Gas dryer : 136 lb (61.7 kg) –138 lb (62.6 kg)
Electric dryer : 133.5 lb (60.6 kg) –134.5 lb (61.0 kg)
Drying capacity
- Normal cycle IEC 7.3 cu.ft. (22.5 lb/10.2 kg)
NOTE
Model numbers can be found on the cabinet inside the door.
