27
Connecting to an External Device
Connecting with an HDMI Cable
Connect the TV and external device (game console, DVD player, etc.) with an HDMI cable and enjoy a deep and rich
sound.

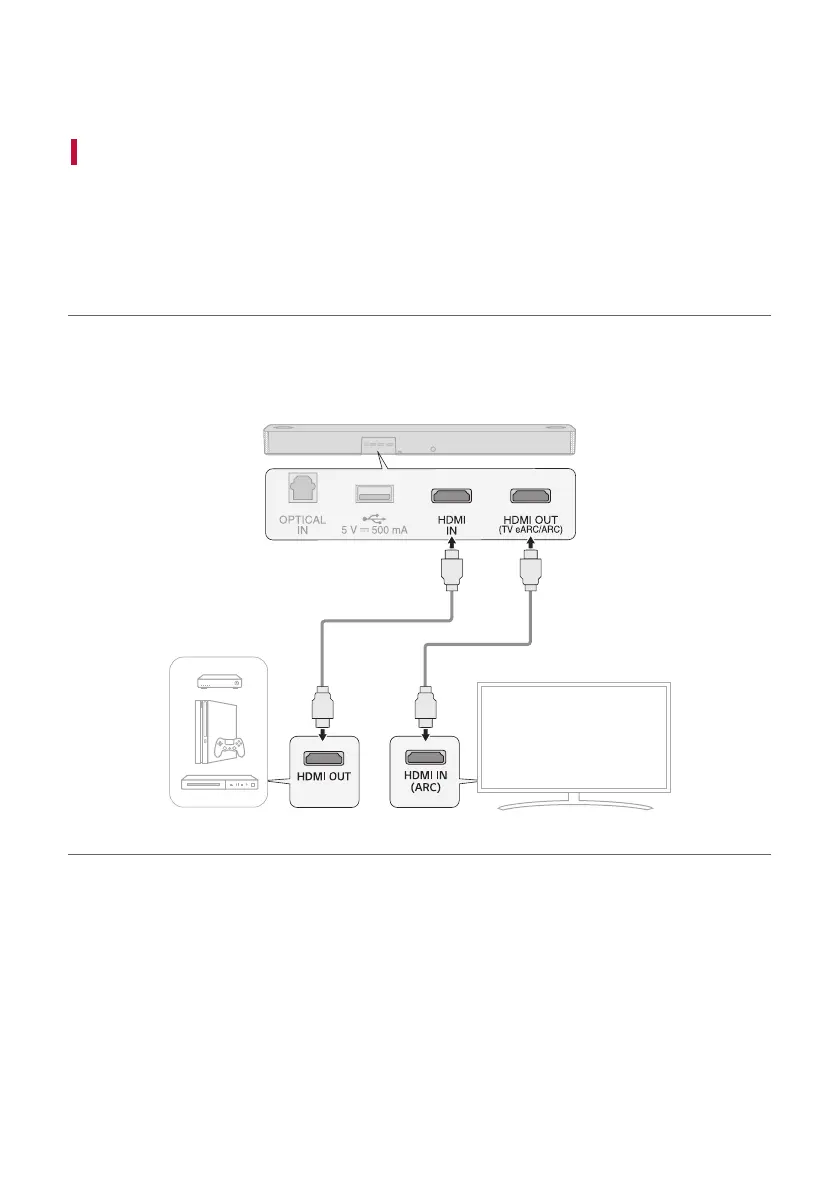

Connecting an external device via HDMI
a Connect an external device such as a DVD or Blu-ray player. Following the picture below, connect the HDMI
OUT terminal of the device to the HDMI IN terminal on the back of the product.
b Using the HDMI cable, connect the HDMI OUT (TV eARC/ARC) terminal on the back of the product to the
HDMI IN (ARC) terminal on the TV.
Connecting to an External Device

LG DS75Q Specifications

General

Audio decoders	DTS Digital Surround, DTS-HD HR, DTS-HD Master Audio, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
RMS rated power	380 W
Audio output channels	3.1.2 channels
Soundbar mode control	Yes
Audio sample rate (24bit)	96 kHz
Soundbar speaker RMS power	- W
Subwoofer location	Separate
Subwoofer connectivity	Wireless
Display type	LCD
Product color	Steel
Audio formats supported	AAC, AAC+, FLAC, LPCM, MP3, OGG, WAV, WMA
Consumer Electronics Control (CEC)	SimpLink
High Dynamic Range (HDR) technology	Dolby Vision, High Dynamic Range 10 (HDR10)
Cables included	HDMI, Optical
Number of products included	1 pc(s)
Wi-Fi	No
Bluetooth codec	AAC, SBC
Bluetooth version	4.2
Number of HDMI outputs	1
AC input voltage	200 - 240 V
AC input frequency	50 - 60 Hz
Soundbar power consumption	38 W
Power consumption (standby)	0.5 W
Subwoofer power consumption	33 W
Package depth	247 mm
Package width	1027 mm
Package height	470 mm
Package weight	13700 g

Weight and Dimensions

Depth	119 mm
Width	890 mm
Height	65 mm
Soundbar weight	3790 g
Subwoofer depth	290 mm
Subwoofer width	180 mm
Subwoofer height	394 mm
Subwoofer weight	5800 g
