Connecting30
Connecting
2
Optional equipment
connection
DOLBY ATMOS®
What is DOLBY ATMOS®?
Dolby Atmos gives you amazing experience you’ve
never before by overhead sound, and all the richness,
clarity, and power of Dolby sound.
DTS:X®
What is DTS:X®?
In the real world, sound is all around us, moving freely
in any direction. DTS:X® is immersed in this natural,
multi-dimensional sound experience as we go about
our daily lives.
For using DOLBY ATMOS® and DTS:X®
y
To enjoy content containing Dolby Atmos® and
DTS:X®, the connected device and content must
support Dolby Atmos® and DTS:X®.
y
DOLBY ATMOS® is available only in HDMI and ARC
mode.
y
DTS:X® is available only in HDMI and ARC mode.
y
It is needed to set up an audio output on external
devices (Blu-ray disc player, TV etc.) to “No
encoding” such as “Bitstream”, “Auto” or “Bypass”.
- If you can select audio output sampling rate, set
it to 192 kHz.
y
If your TV does not support DTS sound source,
connect the playback (source) device to the HDMI
IN or OPTICAL IN jack on the soundbar to listen to
DTS audio.

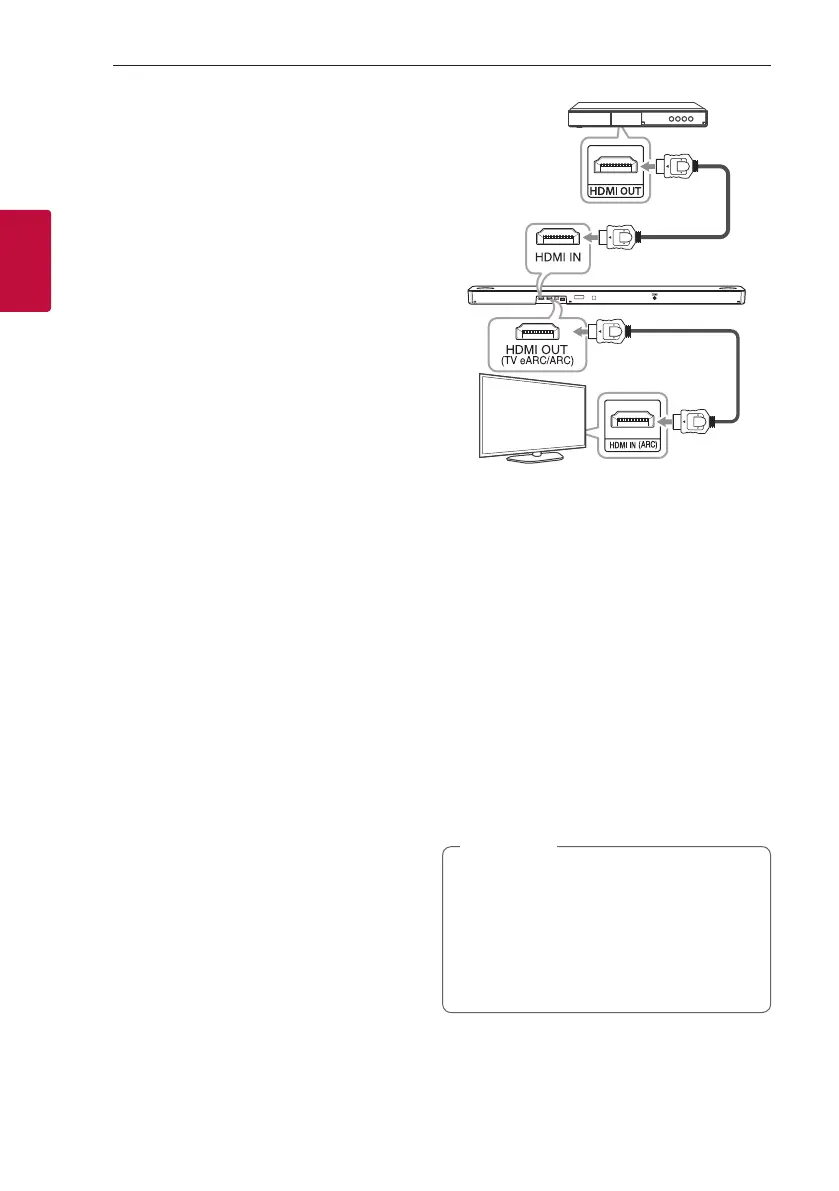

1. Connect HDMI IN jack on the back of the unit to
HDMI OUT jack on the external device such as
Blu-ray disc player, DVD player, etc.
2. Connect HDMI OUT (TV eARC/ARC) jack on the
back of the unit to HDMI IN (ARC) jack on the TV.
3. Select the input source to HDMI or OPT/HDMI
ARC by pressing F repeatedly.
- If you select HDMI, you can hear the sound from
the external device. Select it when playing the
external device.
- If you select OPT/HDMI ARC, you can hear the
sound from your TV. Select it when watching
the TV.
You can see “DOLBY ATMOS” or “DTS:X” on the
display window if connecting normally between
this sound bar and your TV and the contents is
played.
y
DOLBY ATMOS®/DTS:X® supports 3.1.2
channel. (5.1.2 channel when it connected
with Rear kit)
y
If the sound bar does not have sound or the
video on TV is not smooth, the HDMI cable
may be the problem. Refer to the HDMI cable
checklist. (Page 29)
,
Note

LG DSN8YG Specifications

General

Audio decoders	DTS:X, Dolby Atmos
RMS rated power	440 W
Audio output channels	3.1.2 channels
Audio Return Channel (ARC)	Yes
Impedance	4 Ω
Woofer diameter	18 mm
Tweeter diameter	20 mm
Number of tweeter drivers	2
Soundbar speaker RMS power	220 W
Woofer diameter (imperial)	7 \
Subwoofer connectivity	Wireless
Display type	LCD
Product color	Black
Audio formats supported	AAC, FLAC, MP3, OGG, WAV
HDMI in	1
HDCP version	2.3
Bluetooth version	5.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired & Wireless
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Soundbar power consumption	45 W
Power consumption (standby)	0.5 W
Subwoofer power consumption	38 W
Package depth	456 mm
Package width	1168 mm
Package height	284 mm
Package weight	14600 g

Weight and Dimensions

Depth	119 mm
Width	570 mm
Height	1060 mm
Soundbar weight	4400 g
Subwoofer depth	313 mm
Subwoofer width	221 mm
Subwoofer height	390 mm
Subwoofer weight	7800 g
