Connecting the Display
To arrange the cables

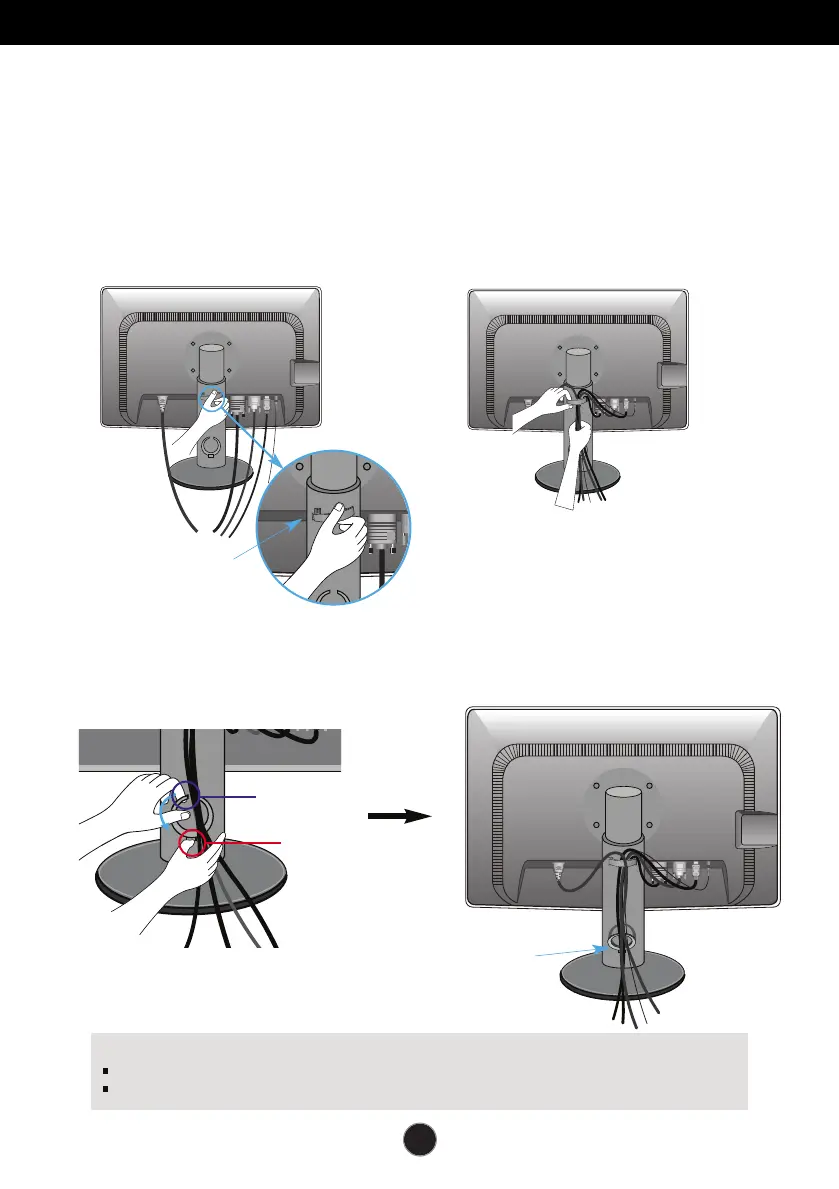

Connect the power cord and the signal cable as shown in the figure and then fix them
to the cable holders 1 and 2.
1. Please insert the cable holder1
into the hole.
2. Please put the power cord and
the signal cable in the cable holder 1.
Press
Pull
3. Please put the power cord and the signal cable in the cable holder 2.
While pressing the bottom of cable holder 2 with one hand, pull the top of
it with the other hand as shown in the picture.
Cable holder 2
Cable holder 1
NOTE
Use the cable holder to organize the cables in order to use the pivot function properly.
This picture shows how to organize cables generally and may look different from your product.
12
