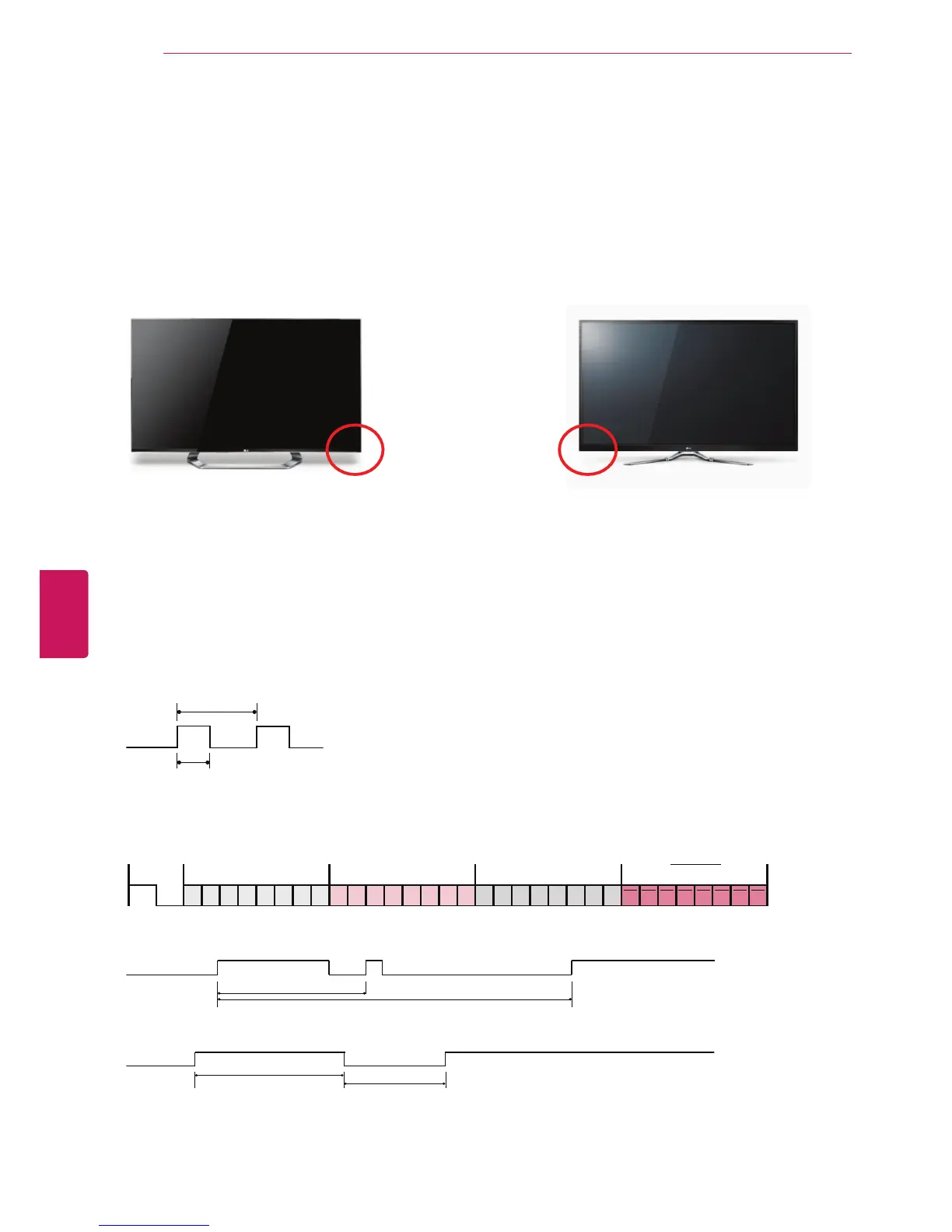

IR CODES (USIng ExtERnal IR BlaStER)
(Depending on model)
Position of Receiver on the TV
Remote Control IR Codes
Output waveform
Single pulse, modulated with 37.917kHz signal at 455kHz
T1
Tc
Frame configuration
1st frame
C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Lead code Low custom code High custom code Data code Data code
Repeat frame
Repeat code
Tf
Lead code
4.5 ms
9 ms
