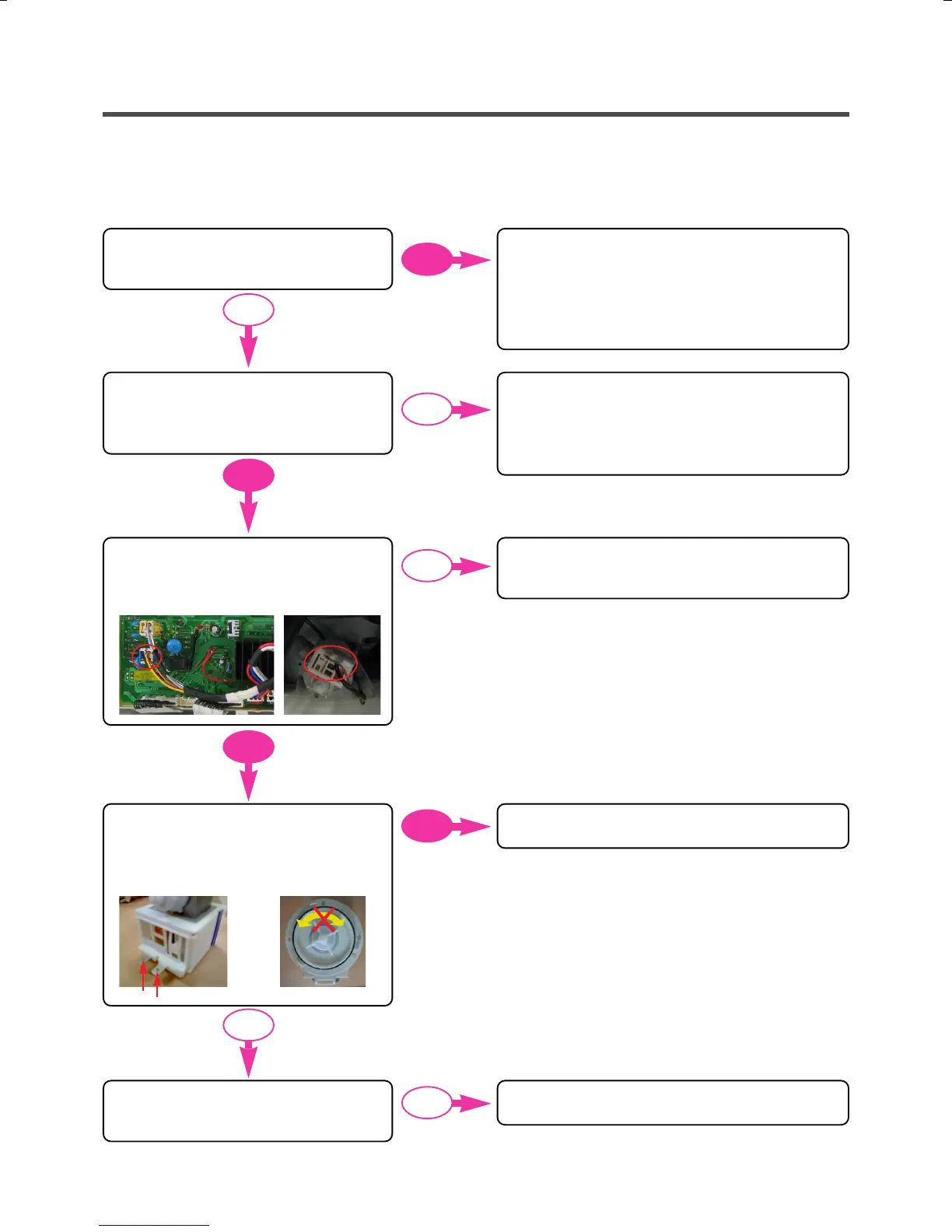

Is the Standpipe Height greater
than 1.0 m above the floor?
24
When there is not water in the
pump casing, is the water level
frequency over 25.5KHz ?
Is the Connector connected correctly to
the Main PCB and the Pump Motor ?
Or is the Harness alright ?
Observe Standpipe Height requirements
of 1.0m maximum.
- Your washer will not be able to drain out
water adequately, if the standpipe exceeds 1.0 m.
In this case, water may flow back into the washer.
Check the Air Chamber and the Tube (clogged).
And When you check the water level frequency
again, if it is over 25.5KHz, you replace the
Pressure switch.
YES
YES
NO
Reconnect or repair the Connector.
Or replace the Harness.
NO
Replace the Main PCB.
NO
Replace the Pump Motor.
Is the resistance of the Pump Motor out
of 160 ~ 177Ω?
Or is there the Impeller bind?
Is Pump motor started, when the spin
mode is started ?
Bind
NO
NO
YES
YES
OR
To Next Page
