nstallation
I

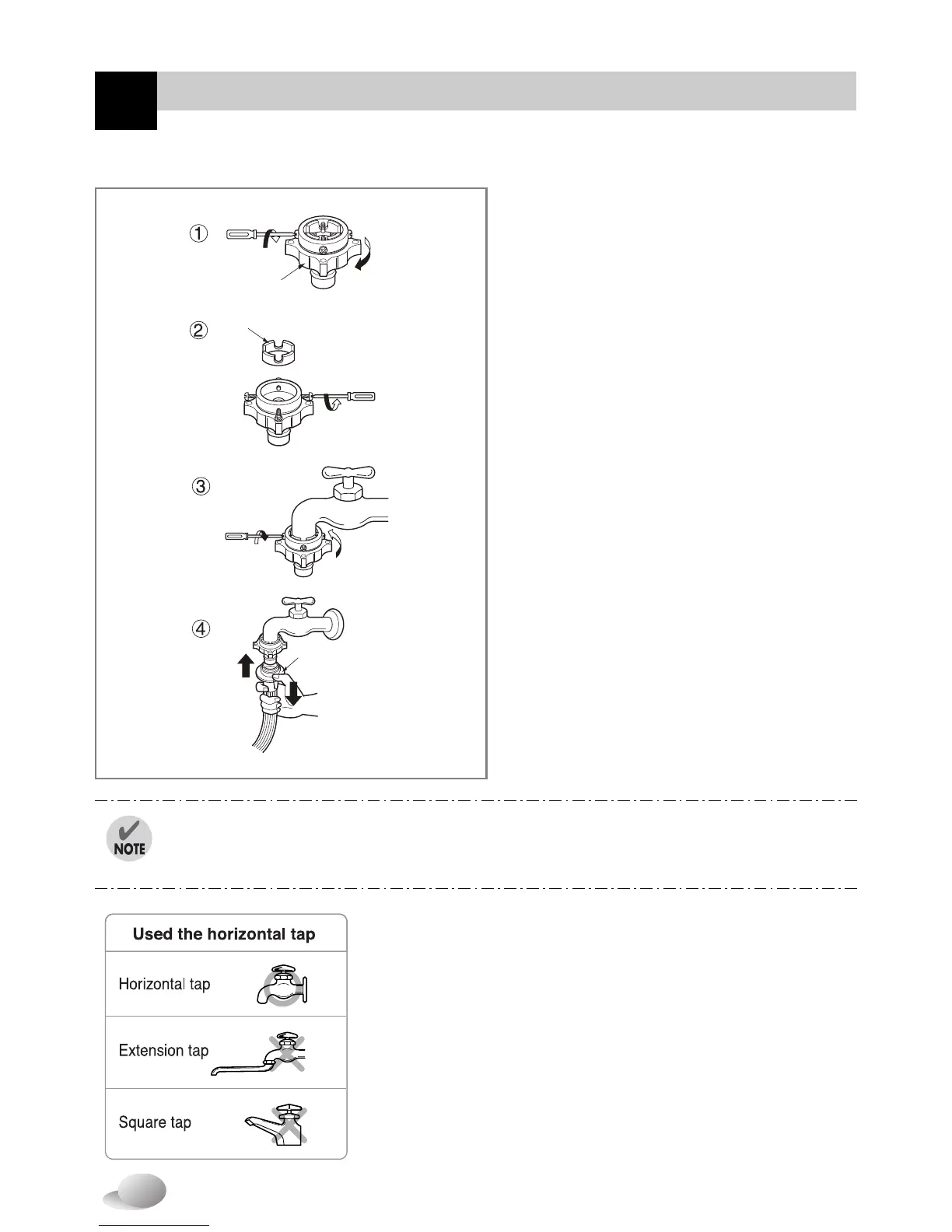

1. Unscrew the adapter ring plate and
the 4 adapter retaining screws.
2. Remove the guide plate if the tap is
too large to fit the adapter.
3. Push the adapter onto the end of
the tap so that the rubber seal forms
a watertight connection.
Tighten the adapter ring plate and
the 4 screws.
4. Pull the connector latch plate down,
push the inlet hose onto the adapter,
and release the connector latch plate.
Make sure the adapter locks into place.
Type-3: Connecting one touch type hose to tap without thread
After completing connection, if water leaks from the hose, repeat the same steps.
Use the most conventional type of faucet for water supply. In case the faucet is square
or too big, remove the spacing ring before inserting the faucet into the adaptor.
Ring plate
Guide plate
Latch plate
