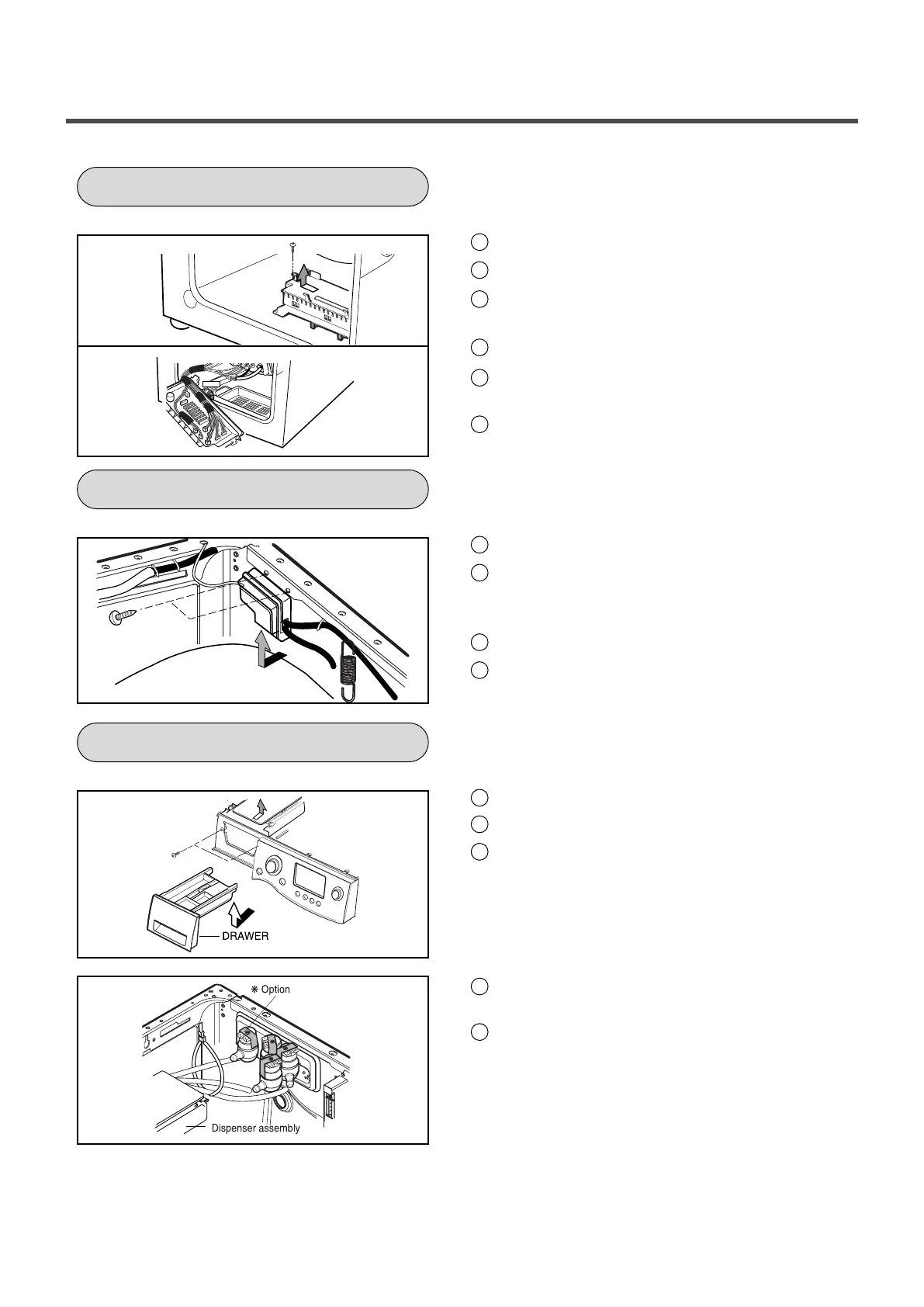

LG F14030RD - Main PWB Assembly Disassembly; Power PWB Assembly Disassembly; Dispenser Assembly Disassembly

40
1
The back cover is removed.
2
One screw is unscrewed.
3
Pull the PWB assembly(Main) to arrow
direction
4
Two screws is unscrewed.
5
The cover of PWB assembly(Main) is
removed.
6
Disconnect connector from the wiring.
PWB ASSEMBLY(MAIN)
1
The plate assembly(Top) disassembled.
2
The cover of PWB assembly(Power) is
removed.
(Push the hook bellow.)
4
Disconnect connector from the PWB.
5
Two screw is unscrewed.
PWB ASSEMBLY(POWER)
1
The plate assembly(Top) are disassembled.
3
Two screws are unscrewed.
2
Pull the drawer to arrow direction.
1
The hose clamps and the hose are
disassembled.
2
The ventilation bellows are disassembled on
the tub.
DISPENSER ASSEMBLY
