LG F2Y1TYP6J User Manual

16
INSTALLATION

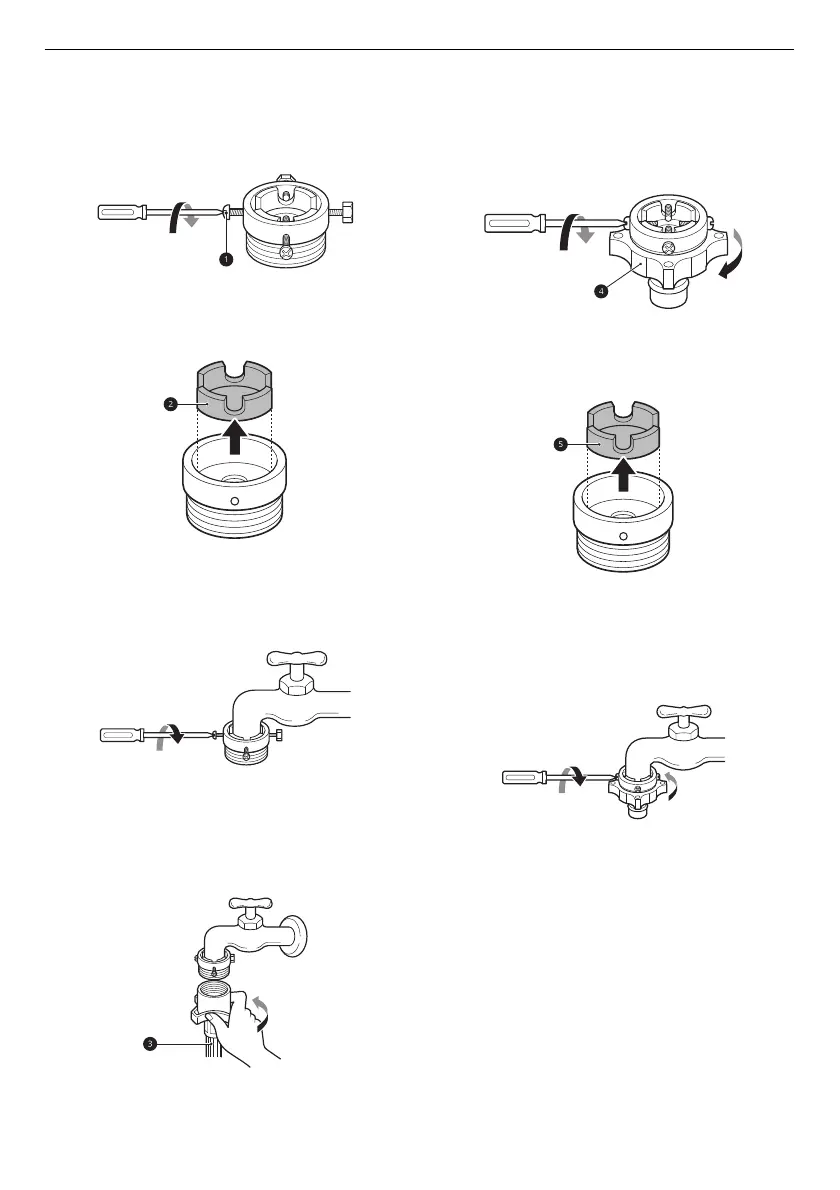

Connecting Screw-Type Hose to Tap Without
Thread
1 Loosen the 4 fixing screws a .
2 Remove the guide plate b if the tap is too large
to fit the adapter.
3 Push the adapter onto the end of the tap so
that the rubber seal is connected to be
watertight. Tighten the 4 fixing screws.
4 Push the inlet hose c vertically upwards so
that the rubber seal within the hose can adhere
completely to the tap and then tighten the
hose by screwing it to the right.
Connecting One Touch Type Hose to Tap
Without Thread
1 Unscrew the adapter ring plate d and loose
the 4 fixing screws.
2 Remove the guide plate e if the tap is too large
to fit the adapter.
3 Push the adapter onto the end of the tap so
that the rubber seal is connected to be
watertight. Tighten the 4 fixing screws and the
adapter ring plate.
4 Pull the connector latch plate f down, push
the inlet hose onto the adapter, and release the

LG F2Y1TYP6J Specifications

General

Brand	LG
Model	F2Y1TYP6J
Category	Washer
Language	English
