- 8 -

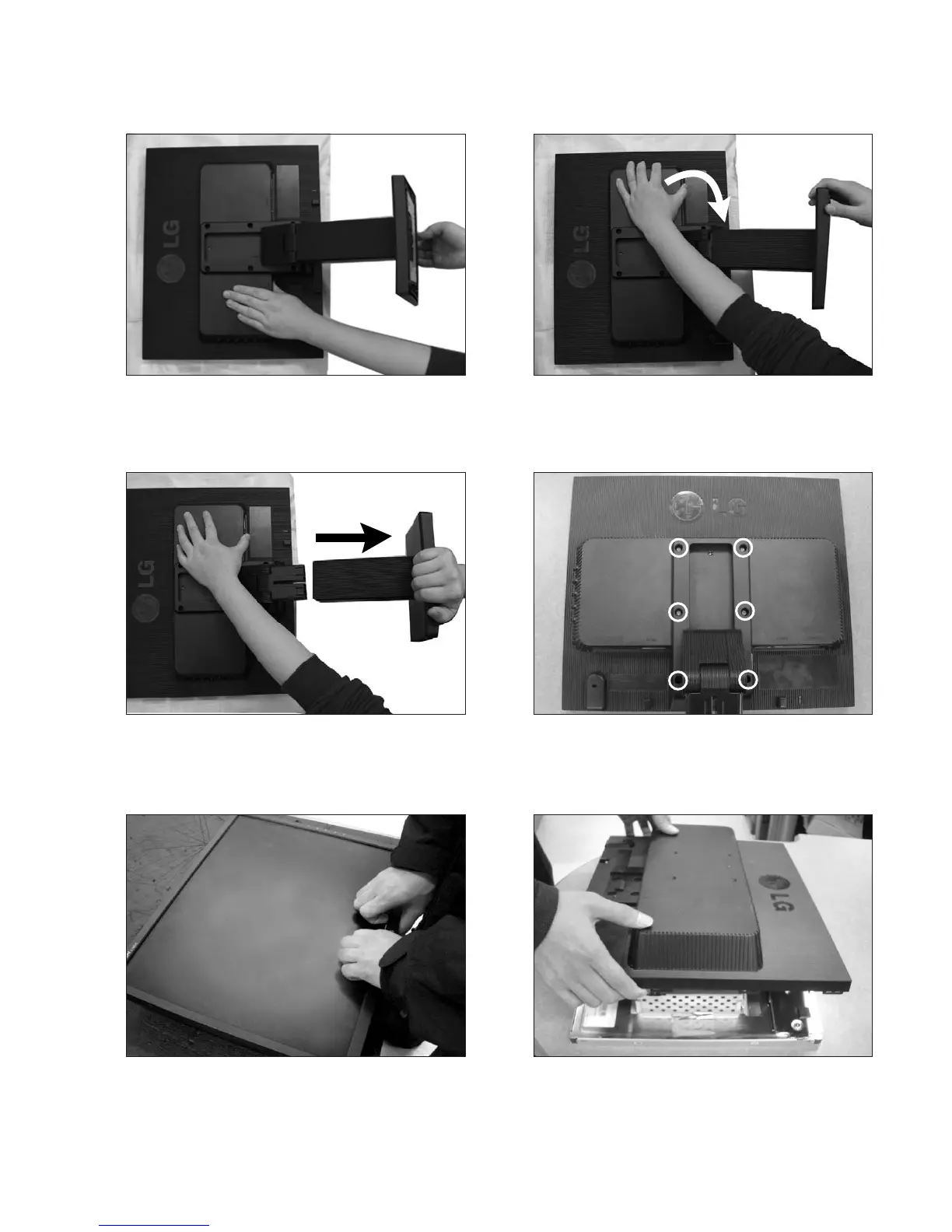

DISASSEMBLY-Set
Hold the product as it follows and lift up the Stand
slightly.
Change your hold on the product as it follows and turn
the Stand Base in the arrow direction until you hear a
"click."
Pull out the Stand to remove.
# 1 # 2
# 3
Remove the screws.
1. Pull the front cover upward.
2. Then, let the all latches are separated.
3. Put the front face down.
Disassemble back cover.
# 4
# 5
# 6
