Stacking Coin

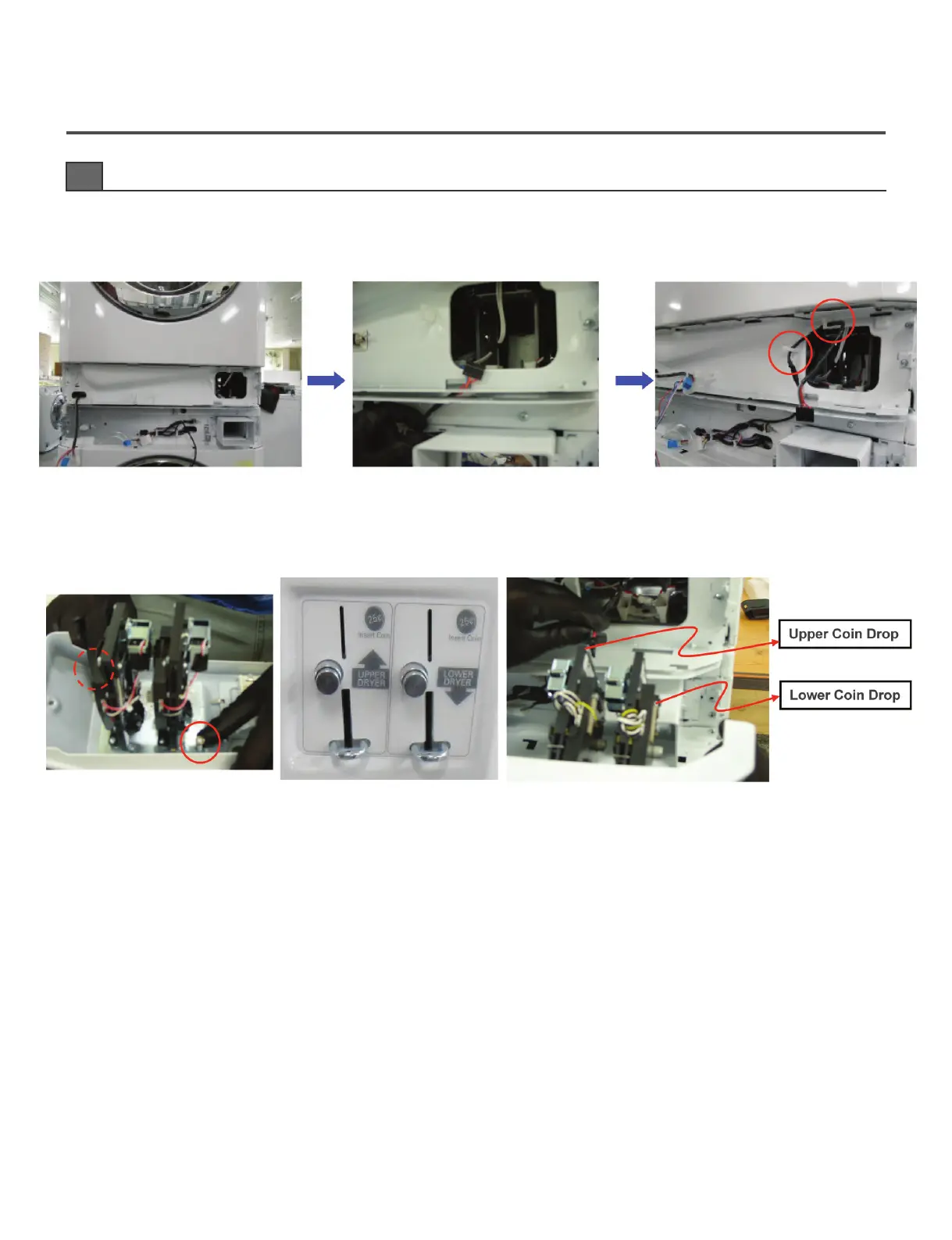

Install the double coin drop mechanism onto the back of the upper dryer control panel.
Attach the bolts using the nuts provided.
Connect the harness to the upper dryer and secure the wiring harness.
Route the wiring to the lower control panel. Be careful to avoid confusing the upper and
lower harness.
After installing the coin drop module and coin box, replace the front panels on both machine.
Be sure to secure all wiring harness parts to avoid vibration, pinching, chafing, or other
Damage using adhesive blocks and cable ties.
▶Coin Drop – provided by ESD
