Appearance Size of Refrigerator and Name of Every Part
Chapter 4 Appearance Size of Refrigerator and Name of Every Part

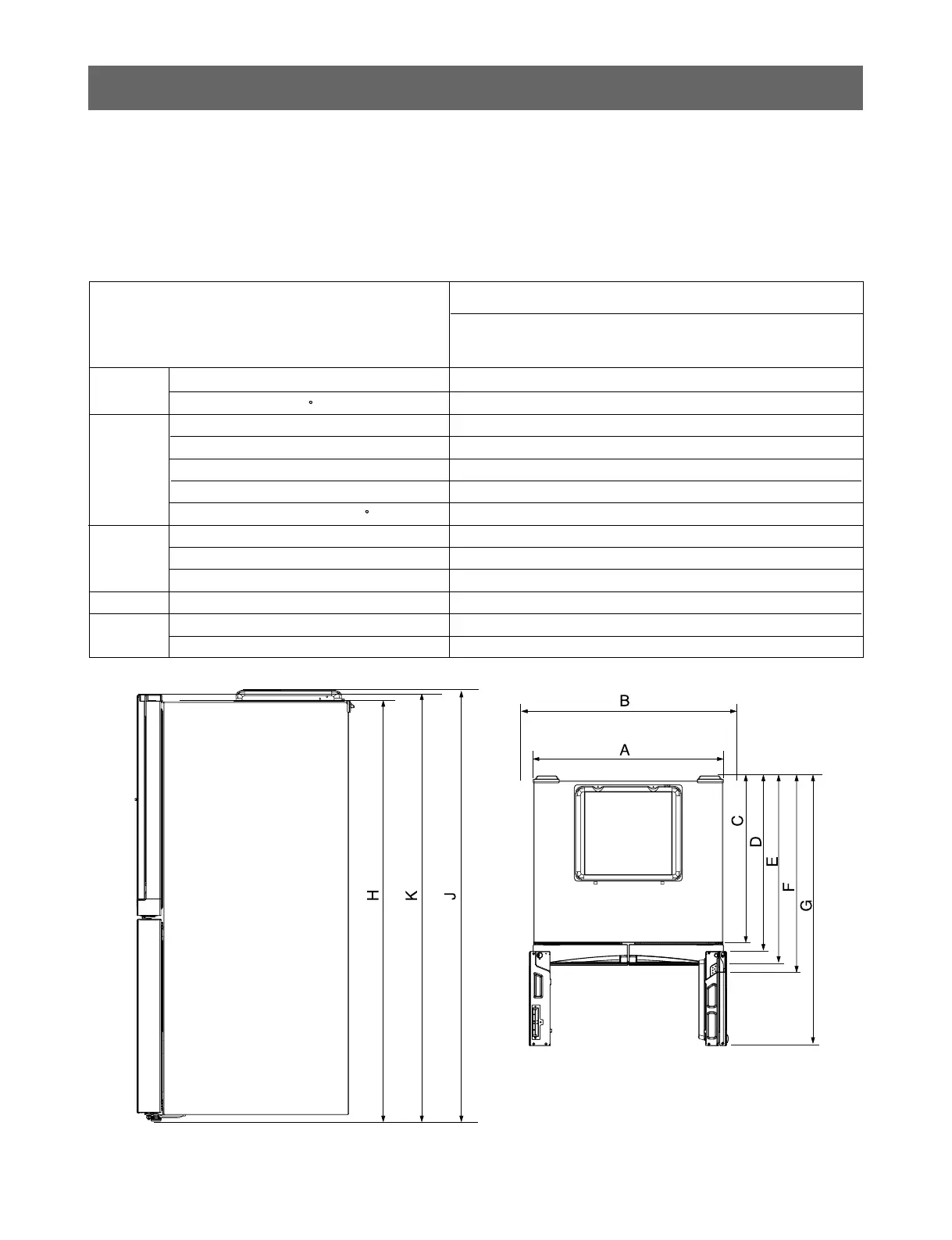

1. Appearance Size of Refrigerator
(Unit : mm)
Front View
Plane View
Width
Depth
Height
Minimum air
circulation
space
Width(A)
When opening door by 90 (including handle/button) (B)
Case (including back handle) (C)
After disassembling door (including hinge, L) (D)
Including door (not including handle) (E)
Including handle/button (F)
When opening door by 90 (G)
Cabinet (H)
Including Cover PCB (J)
Including door (K)
Top part
Side part
Rear part
912
1019
631
698
775
758
1118
1750
1797
1785
300
20
50
