INSTALLATION
Door Alignment for Freezer
Door

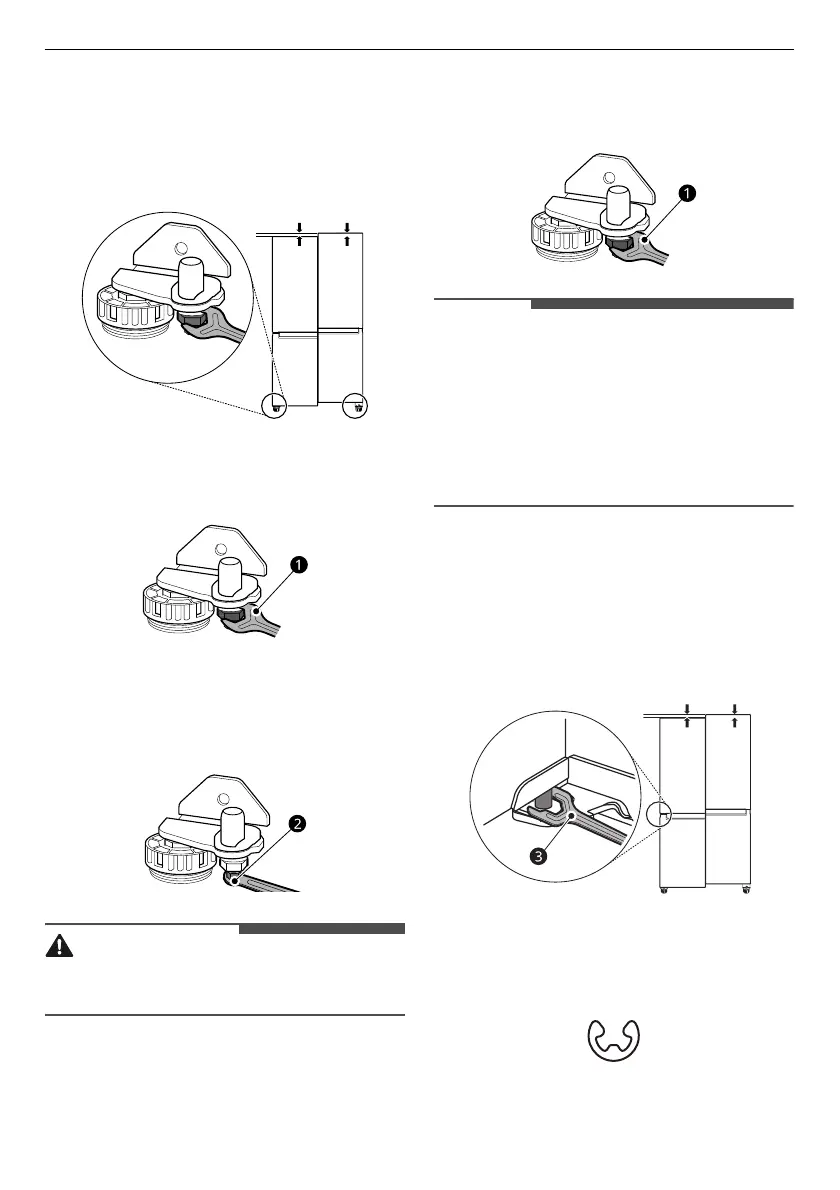

If the door of the appliance is not level, adjust the
difference in the height of appliance door.
1
Open the door and use the spanner
a
to
loosen the keeper nut by turning it to the left.
2
Use the spanner
b
to adjust the height by
turning the adjustment hinge pin to the left or
to the right.
• Do not adjust the height of the appliance door
more than 3 mm.
3
Use the spanner
a
to fasten the keeper nut by
turning it to the right.
• Levelling the doors may not be possible when
the floor is not level, or is of weak or poor
construction.
• The refrigerator is heavy and should be installed
on a rigid, flat and solid surface.
• Some timber flooring may cause levelling
difficulties if it flexes excessively.
Door Alignment for Left Fridge
Door
Appliance Type A
Open the fridge door and use the spanner
c
to
rotate the door hinge bolt.
Appliance Type B
The C-Clip (snap ring) may differ depending on the
model.
• C-Clip type A
If the door is too low, lift the left door up and use
a pair of long nose pliers to insert C-Clips until
both doors are level.
