Using the Computer
1. Make sure to turn off the computer and product. Connect the cable as below sketch map
form to .
1
3. Press button on the front switch panel to turn the power on.
When monitor power is turned on, the
'Self Image Setting
Function' is executed automatically.
(Only Analog Mode)
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display settings.When the user connects the monitor for
the first time, this function automatically adjusts the display to optimal settings for individual input signals. If you want to adjust the
monitor while in use, or wish to manually run this function once again, push the ‘AUTO/SET’ button on the front panel of the monitor.
Otherwise, you may execute the ‘ Factory reset’ option on the OSD adjustment menu. However, be aware that this option initializes all
the menu items except ‘Language’.
2

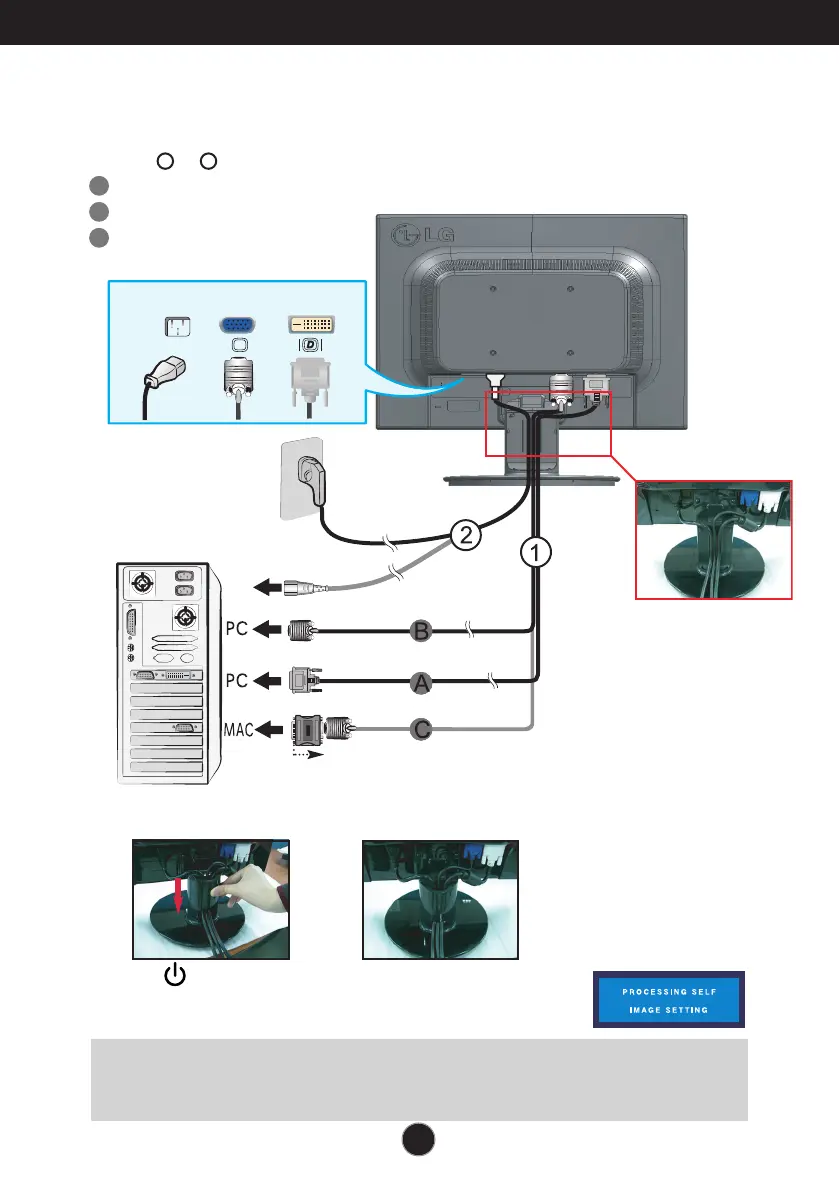

Connecting the Display
Wall-outlet type
Power Cord
Analog signal
D-sub
Digital signal
DVI
A
B
C
Connect DVI Cable
Connect Dsub Cable (PC)
Connect Dsub Cable (Mac)
PC-outlet type
Mac adapter
For Apple Macintosh use, a separate plug adapter is needed to
change the 15 pin high density (3 row) D-sub VGA connector on
the supplied cable to a 15 pin 2 row connector.
DVI-D(This feature is not available in all countries.)
Signal Cable
Fix the power cord & signal cable
as shown in the picture.
2. Insert the Cable Deco Cover in the Stand Body in the correct direction.
