Mechanical Instructions
EN 9LCD LPL 2K7 4.
4.3 Model LC320W01
4.3.1 Control Board (T-CON Board)

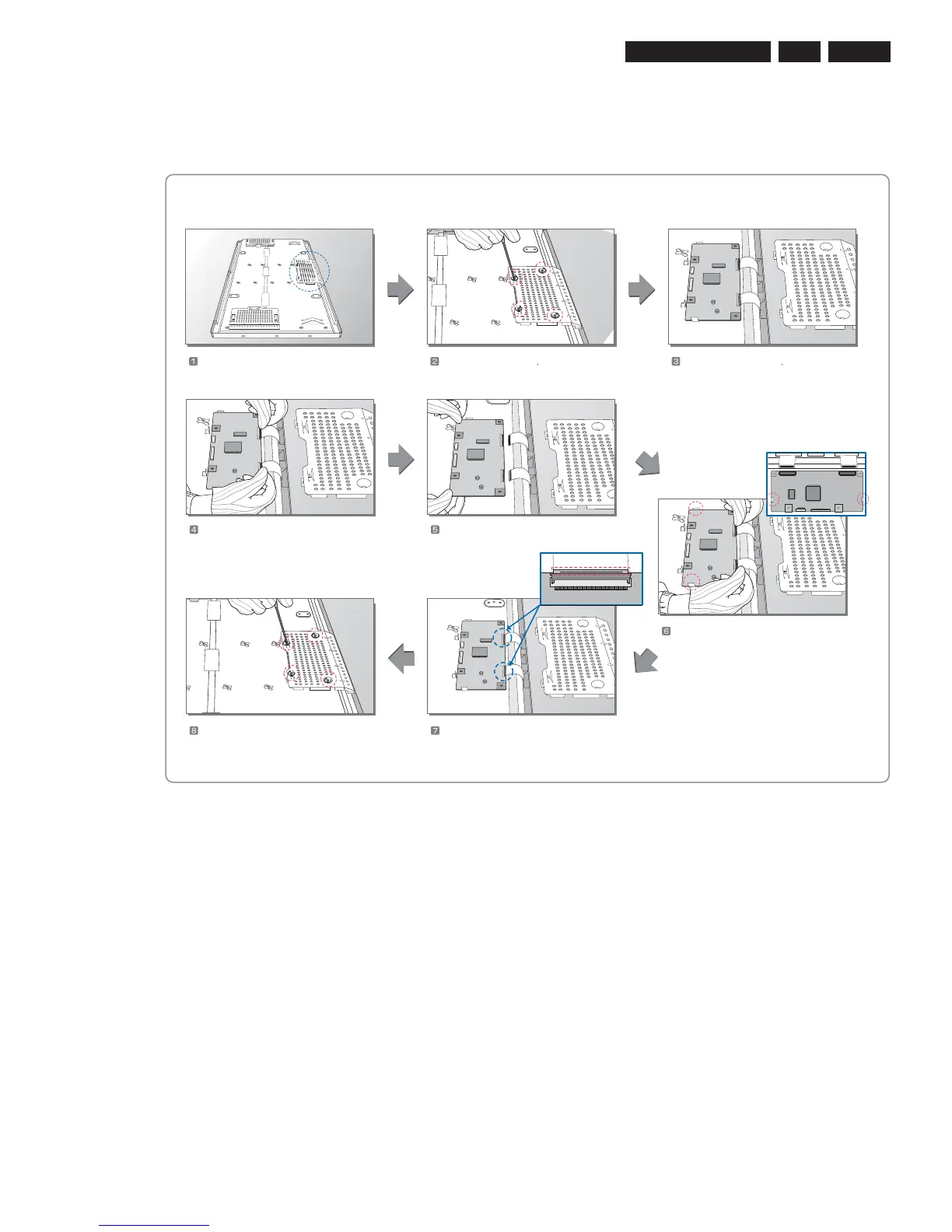

Figure 4-6 Replacement instructions T-CON board
MODEL: LC320W01-B6K1
Separate the FFC(50pin).
Separate the T-CON Board.
Attach the Cover Shield and
Assemble the Screw(4EA).
Check the FFC(50pin).
Replace of T-CON Board and
Assemble the FFC(50pin).
* Guide Pin station keeping check.
H_16890_025.eps
230507
Prepare the LCM. Separate the Screw(4EA)
Separate the Cover Shield
