16 INSTALLATION

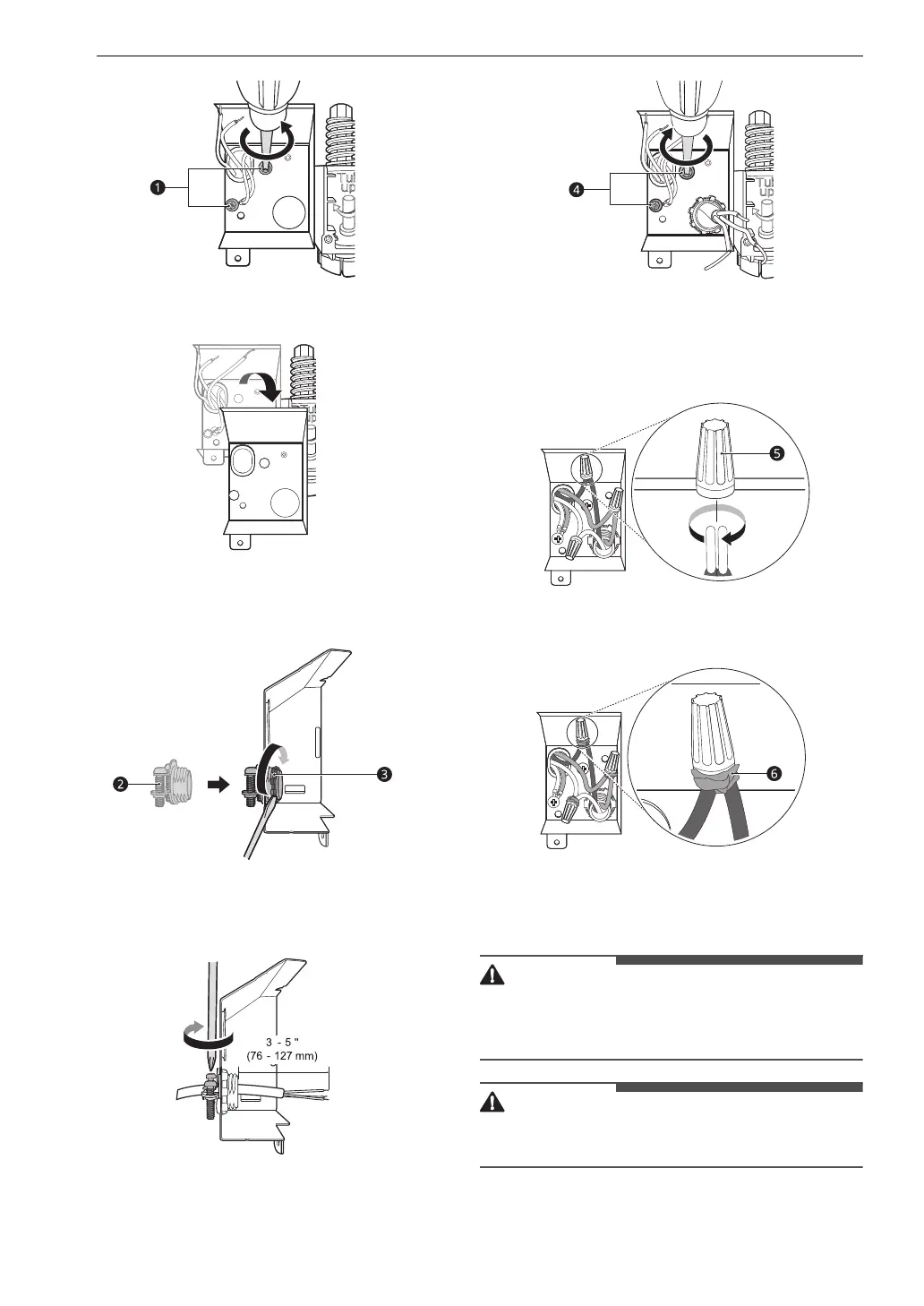

4 Remove the junction box from the appliance.
5 Insert a 3/8” strain relief b through the hole
in the junction box. Tighten the ring nut c to
secure it in place.
6 Insert the electrical cable through the hole in
the strain relief. Tighten 2 screws to secure
the cable.
7 Pull the existing wires through the openings
in the junction box. Tighten 2 screws
d to
reassemble the junction box in the appliance.
8 Pair the white, black, and green wires to the
matching colored wires from the dishwasher.
Then twist on the provided wire nuts
e tightly
to connect the corresponding wires.
9 Wrap electrical tape f around each
connection.
10 Fold the connected wires back into the
junction box and screw on the junction box
cover.
• Verify that the black wire is hot (120 V). If not, or
if you are unsure of the power supply, have it
checked by a licensed electrician.
• Do not leave stripped wire exposed. Trim
stripped wire to fit completely inside wire nuts.
