Attach the drain hose to the disposal with the
hose clamp provided. Move the hose clamp
into position and tighten it with a flat-blade
screwdriver.

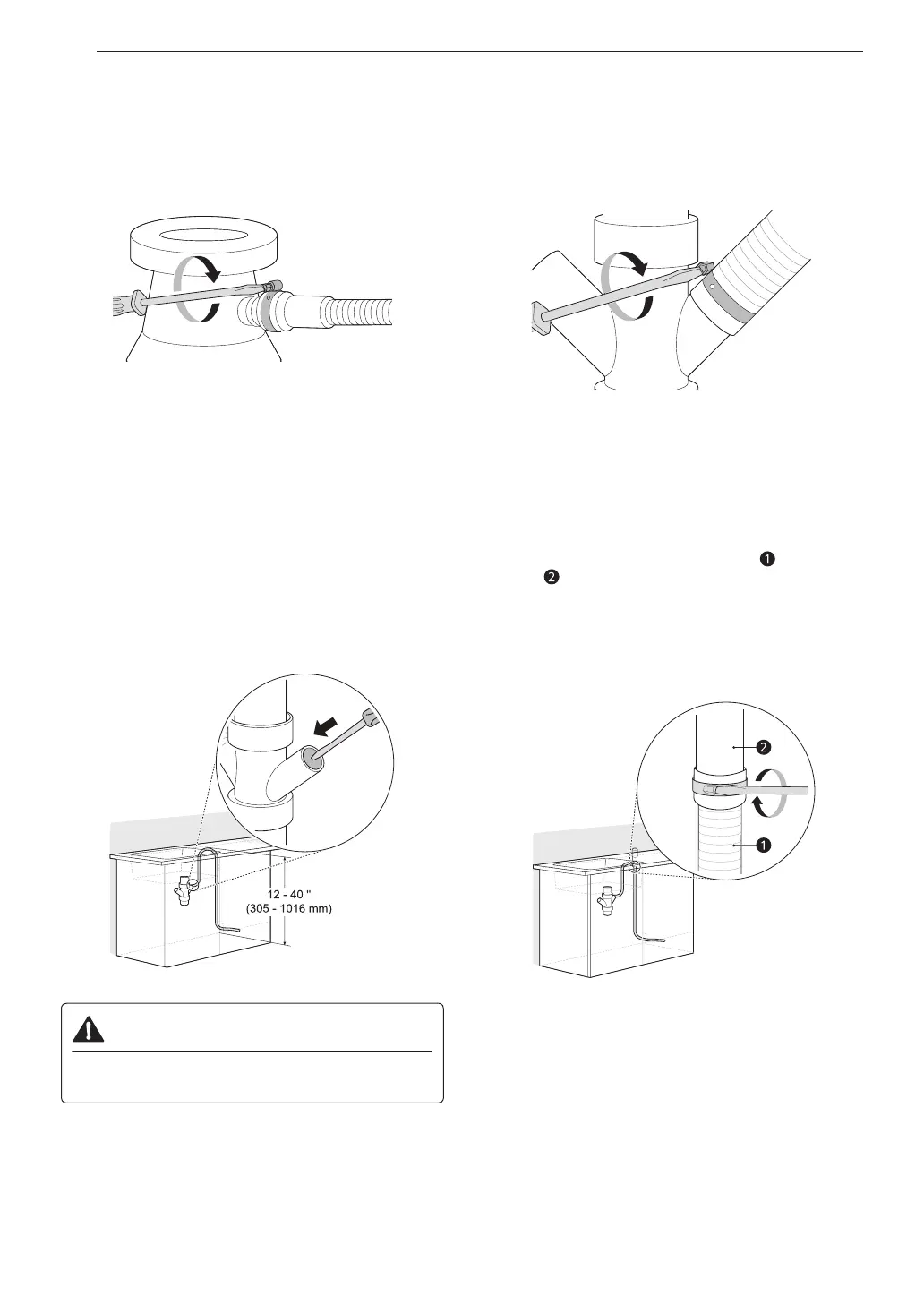

Connecting Waste Tee without Air
Gap
The height of the drain hose end must be at least 12”
(305 mm) and within 40” (1016 mm) from the base of
the dishwasher to avoid water being siphoned from
the tub.
1
Remove the knockout plug with a hammer and
screwdriver.
CAUTION
• If the knockout plug has not been removed, the
dishwasher will not be able to drain properly.
2
Attach the drain hose to the waste tee with
the hose clamp provided. Move the clamp
into position and tighten it with a flat-blade
screwdriver.
Connecting to Disposal or Waste Tee
with Air Gap
1
Remove the knockout plug with a hammer and
screwdriver.
2
Connect the end of the drain hose to the air
gap with the hose clamp provided. Move the
clamp into position and tighten it with a flat-blade
screwdriver.
• This avoids water being siphoned from the tub.
3
If it is not connected, attach the rubber hose
connector to the disposal or waste tee with a
hose clamp (not provided).
