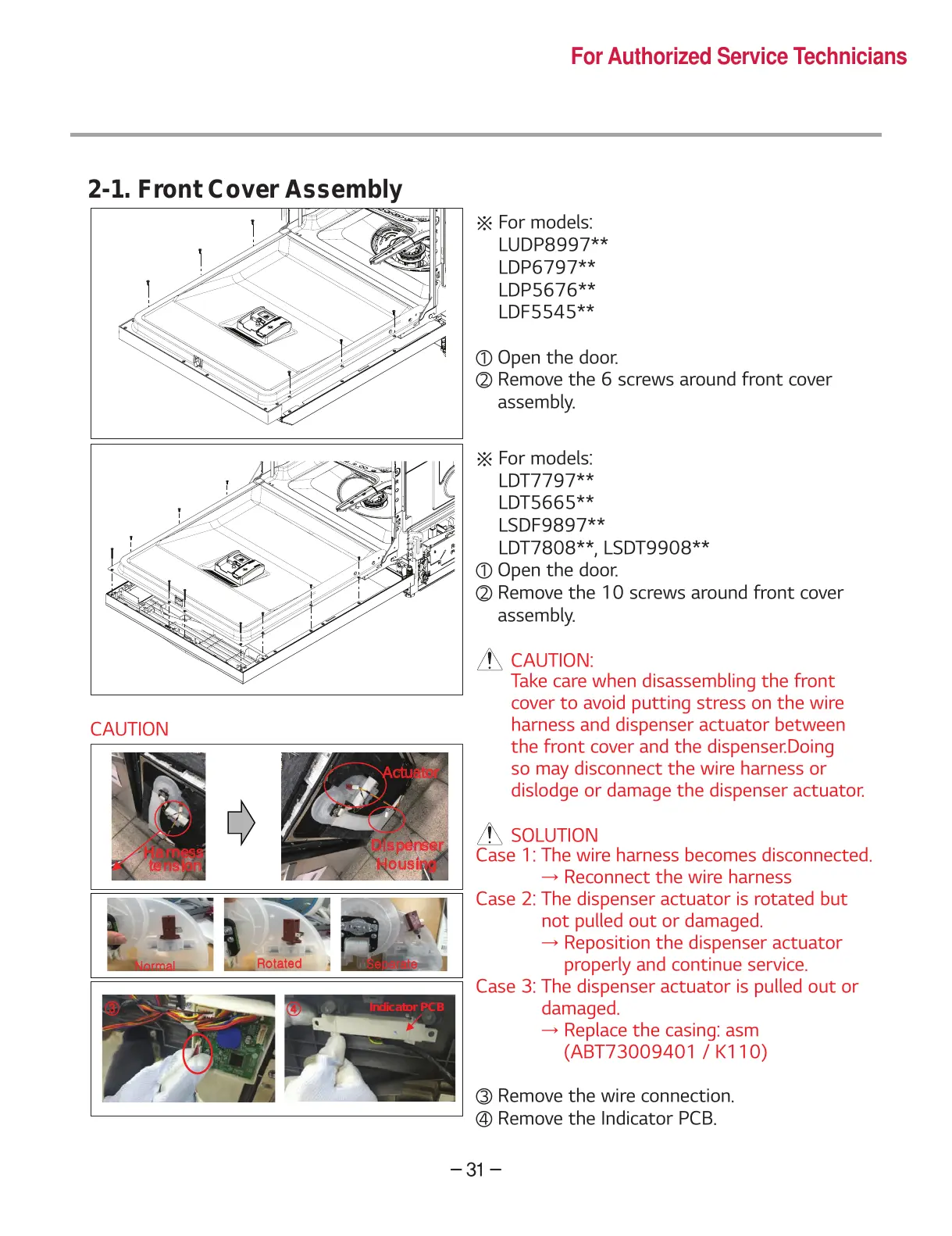

2-1. Front Cover Assembly
※ For models:
LUDP8997**
LDP6797**
LDP5676**
LDF5545**
① Open the door.
② Remove the 6 screws around front cover
assembly.
CAUTION
Actuator
Dispenser
Housing
Harness
tension
u
z
y
ྛ
ྜ
Indicator PCB
※ For models:
LDT7797**
LDT5665**
LSDF9897**
LDT7808**, LSDT9908**
① Open the door.
② Remove the 10 screws around front cover
assembly.
CAUTION:
Take care when disassembling the front
cover to avoid putting stress on the wire
harness and dispenser actuator between
the front cover and the dispenser.Doing
so may disconnect the wire harness or
dislodge or damage the dispenser actuator.
SOLUTION
Case 1: The wire harness becomes disconnected.
→ Reconnect the wire harness
Case 2: The dispenser actuator is rotated but
not pulled out or damaged.
→ Reposition the dispenser actuator
properly and continue service.
Case 3: The dispenser actuator is pulled out or
damaged.
→ Replace the casing: asm
(ABT73009401 / K110)
③ Remove the wire connection.
④ Remove the Indicator PCB.
To Next Page
