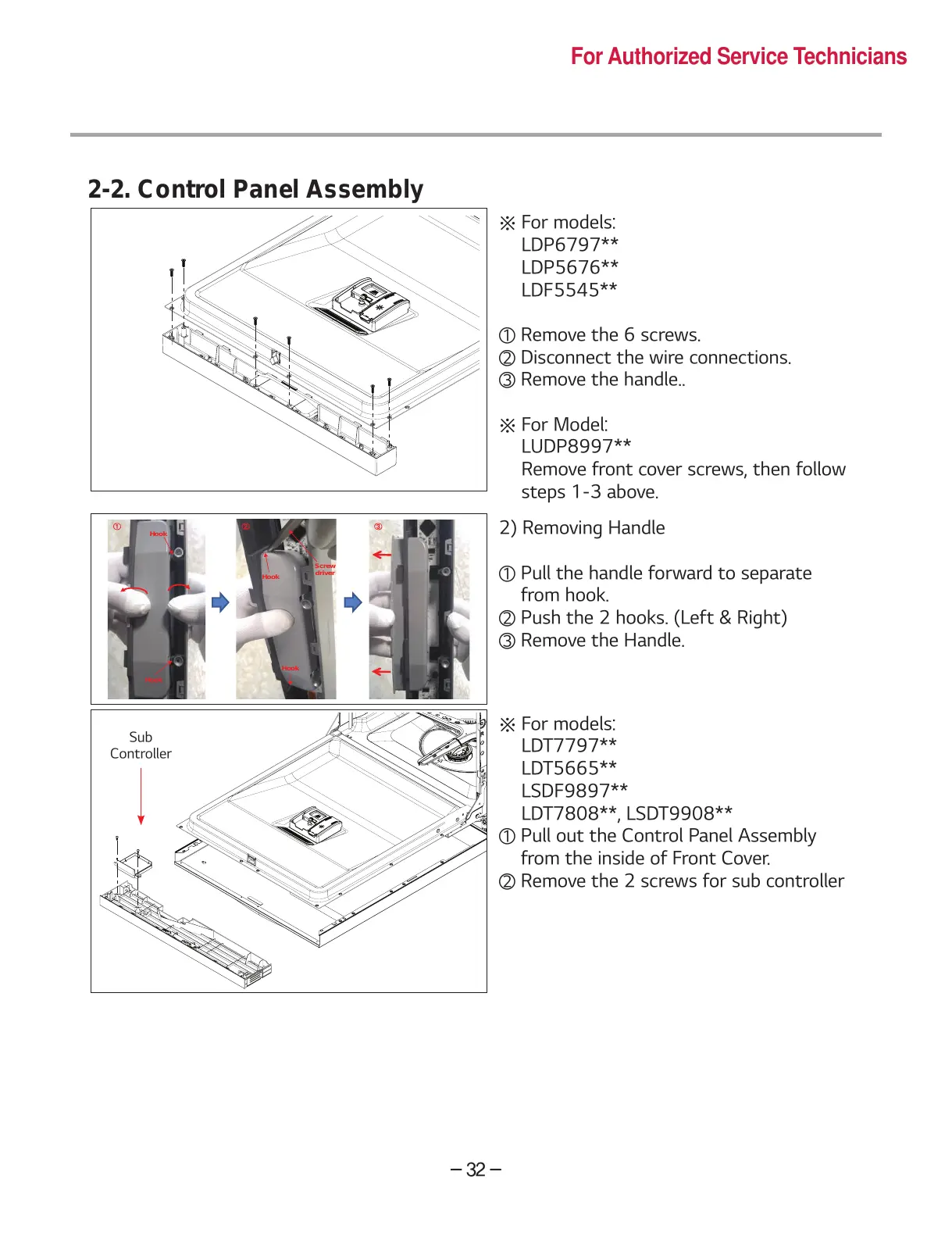

2-2. Control Panel Assembly

※ For models:

LDP6797**

LDP5676**

LDF5545**

① Remove the 6 screws.

② Disconnect the wire connections.

③ Remove the handle..

※ For Model:

LUDP8997**

Remove front cover screws, then follow

steps 1-3 above.

Hook

ྙ ྛ

Hook

Screw

driver

ྚ

Hook

2) Removing Handle

① Pull the handle forward to separate

from hook.

② Push the 2 hooks. (Left & Right)

③ Remove the Handle.

※ For models:

LDT7797**

LDT5665**

LSDF9897**

LDT7808**, LSDT9908**

① Pull out the Control Panel Assembly

from the inside of Front Cover.

② Remove the 2 screws for sub controller

Sub

Controller
