For Authorized Service Technicians
- 38 -
ྙ
ྙ
ྚ
ྚ
Front Hook
Rear Hook

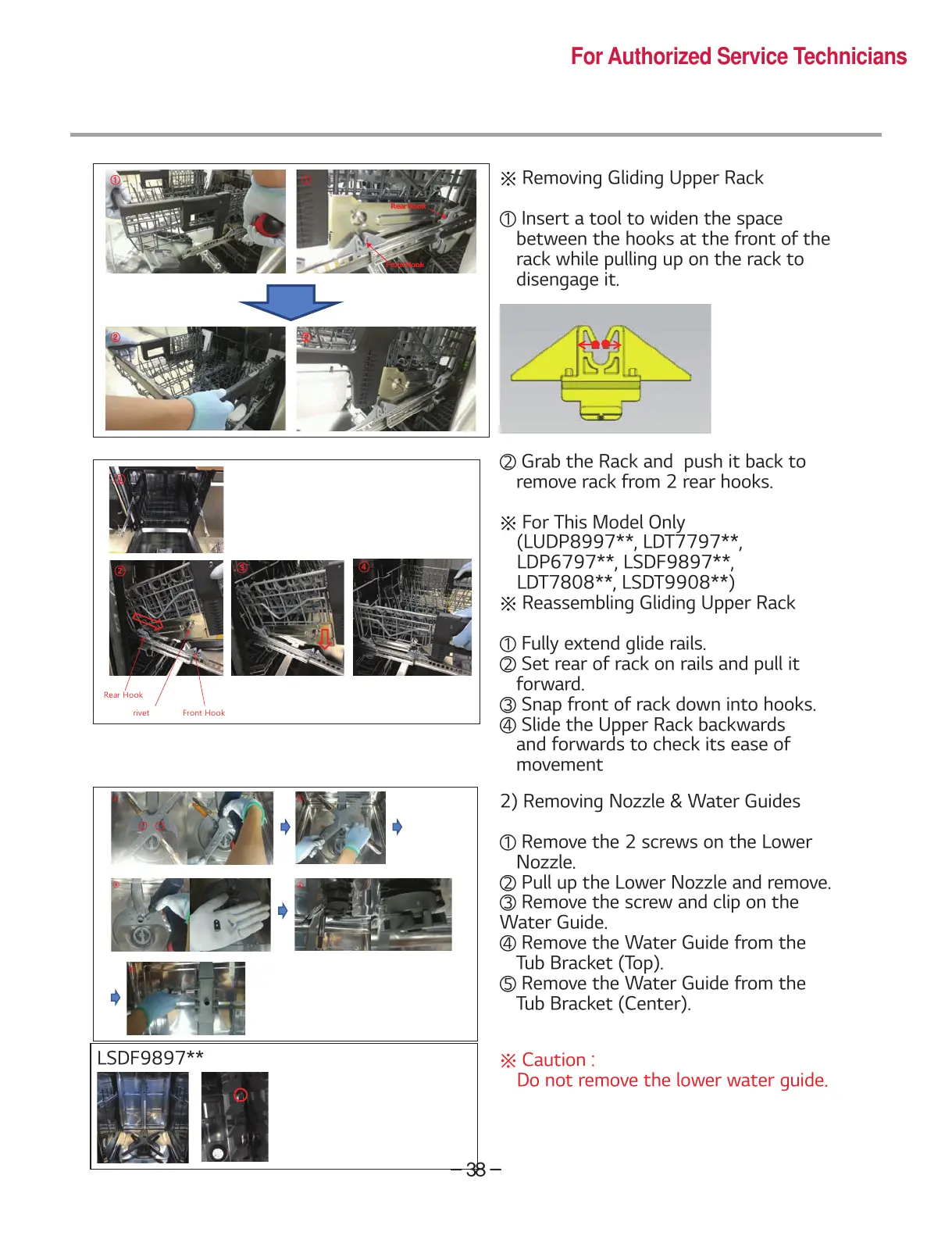

※ Removing Gliding Upper Rack
① Insert a tool to widen the space
between the hooks at the front of the
rack while pulling up on the rack to
disengage it.
② Grab the Rack and push it back to
remove rack from 2 rear hooks.
※ For This Model Only
(LUDP8997**, LDT7797**,
LDP6797**, LSDF9897**,
LDT7808**, LSDT9908**)
※ Reassembling Gliding Upper Rack
① Fully extend glide rails.
② Set rear of rack on rails and pull it
forward.
③ Snap front of rack down into hooks.
④ Slide the Upper Rack backwards
and forwards to check its ease of
movement
¢
£
¤
¥
5HDU+RRN
)URQW+RRNULYHW
¢
£
¤
¥
¦
2) Removing Nozzle & Water Guides
① Remove the 2 screws on the Lower
Nozzle.
② Pull up the Lower Nozzle and remove.
③ Remove the screw and clip on the
Water Guide.
④ Remove the Water Guide from the
Tub Bracket (Top).
⑤ Remove the Water Guide from the
Tub Bracket (Center).
LSDF9897**
※ Caution :
Do not remove the lower water guide.
To Next Page
