For Authorized Service TechniciansFor Authorized Service Technicians
- 39 -
Air Guide
Nut
Air Guide

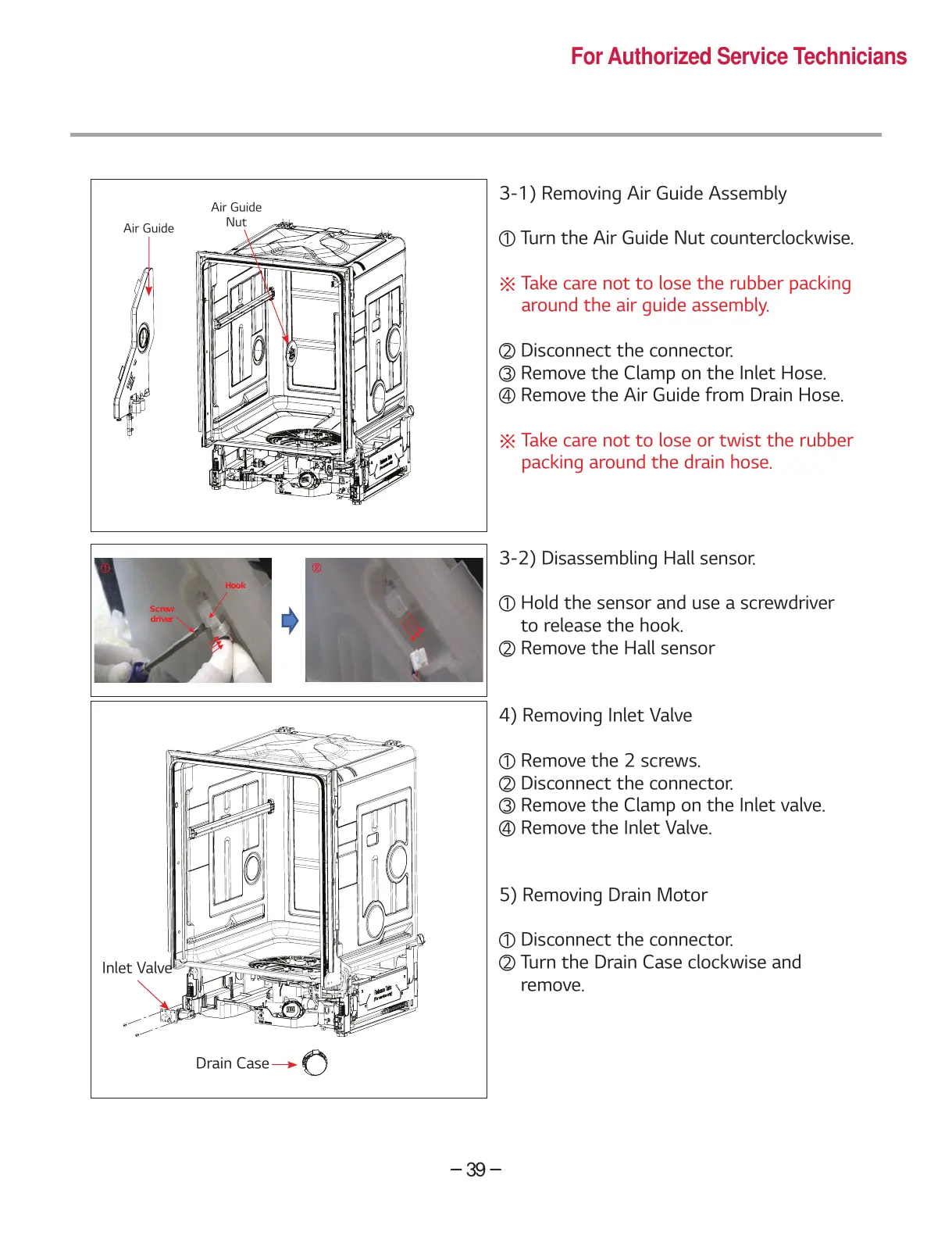

3-1) Removing Air Guide Assembly
① Turn the Air Guide Nut counterclockwise.
※ Take care not to lose the rubber packing
around the air guide assembly.
② Disconnect the connector.
③ Remove the Clamp on the Inlet Hose.
④ Remove the Air Guide from Drain Hose.
※ Take care not to lose or twist the rubber
packing around the drain hose.
Hook
Screw
driver
ྙ ྚ
3-2) Disassembling Hall sensor.
① Hold the sensor and use a screwdriver
to release the hook.
② Remove the Hall sensor
Inlet Valve
Drain Case
4) Removing Inlet Valve
① Remove the 2 screws.
② Disconnect the connector.
③ Remove the Clamp on the Inlet valve.
④ Remove the Inlet Valve.
5) Removing Drain Motor
① Disconnect the connector.
② Turn the Drain Case clockwise and
remove.
To Next Page
