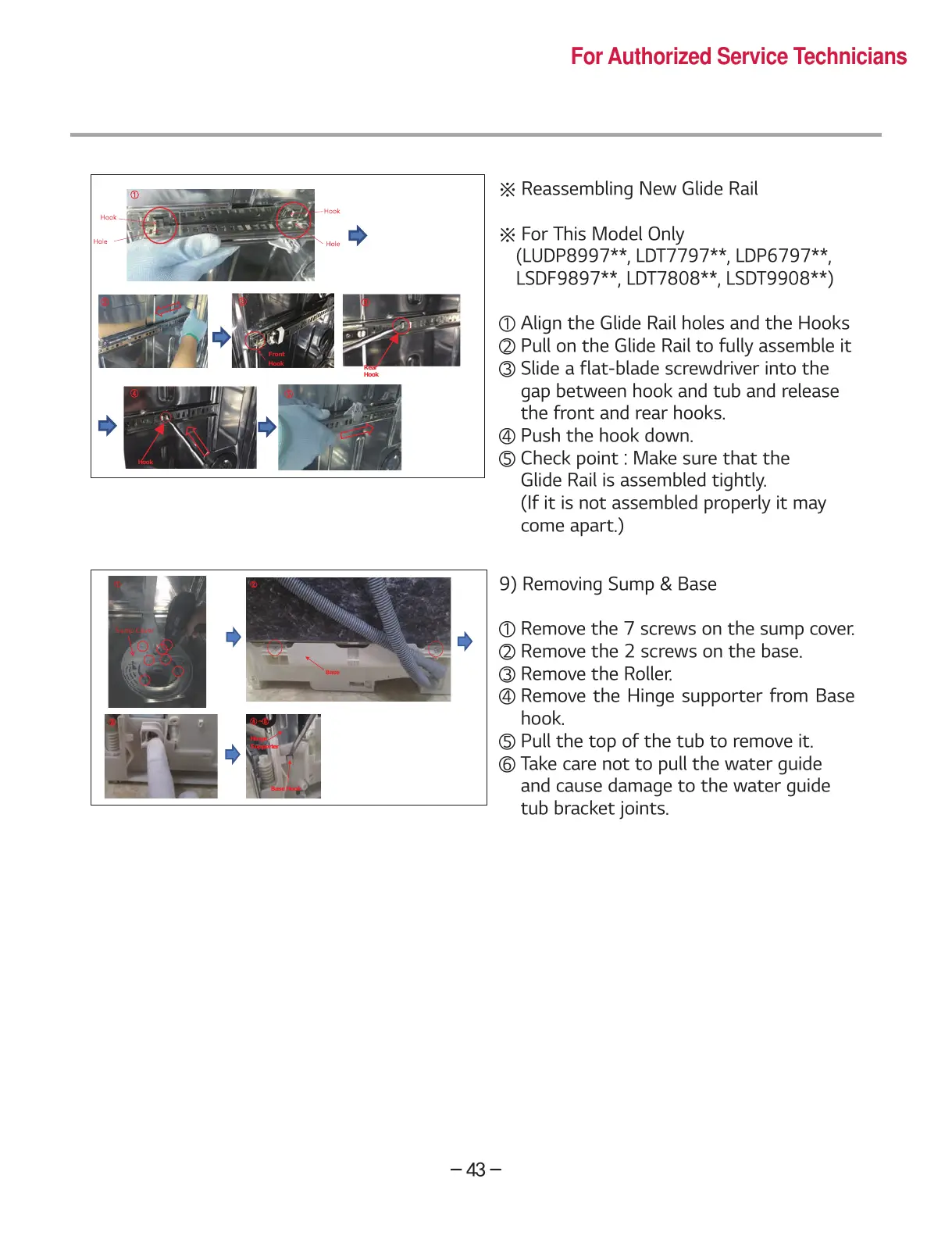

※ Reassembling New Glide Rail
※ For This Model Only
(LUDP8997**, LDT7797**, LDP6797**,
LSDF9897**, LDT7808**, LSDT9908**)
① Align the Glide Rail holes and the Hooks
② Pull on the Glide Rail to fully assemble it
③ Slide a flat-blade screwdriver into the
gap between hook and tub and release
the front and rear hooks.
④ Push the hook down.
⑤ Check point : Make sure that the
Glide Rail is assembled tightly.
(If it is not assembled properly it may
come apart.)
ྛ
Base
ྚ
Base Hook
Hinge
Supporter
ྜ~ྜྷ
Sump Cover
ྙ
9) Removing Sump & Base
① Remove the 7 screws on the sump cover.
② Remove the 2 screws on the base.
③ Remove the Roller.
④ Remove the Hinge supporter from Base
hook.
⑤ Pull the top of the tub to remove it.
⑥ Take care not to pull the water guide
and cause damage to the water guide
tub bracket joints.
To Next Page
