For Authorized Service Technicians

- 42 -

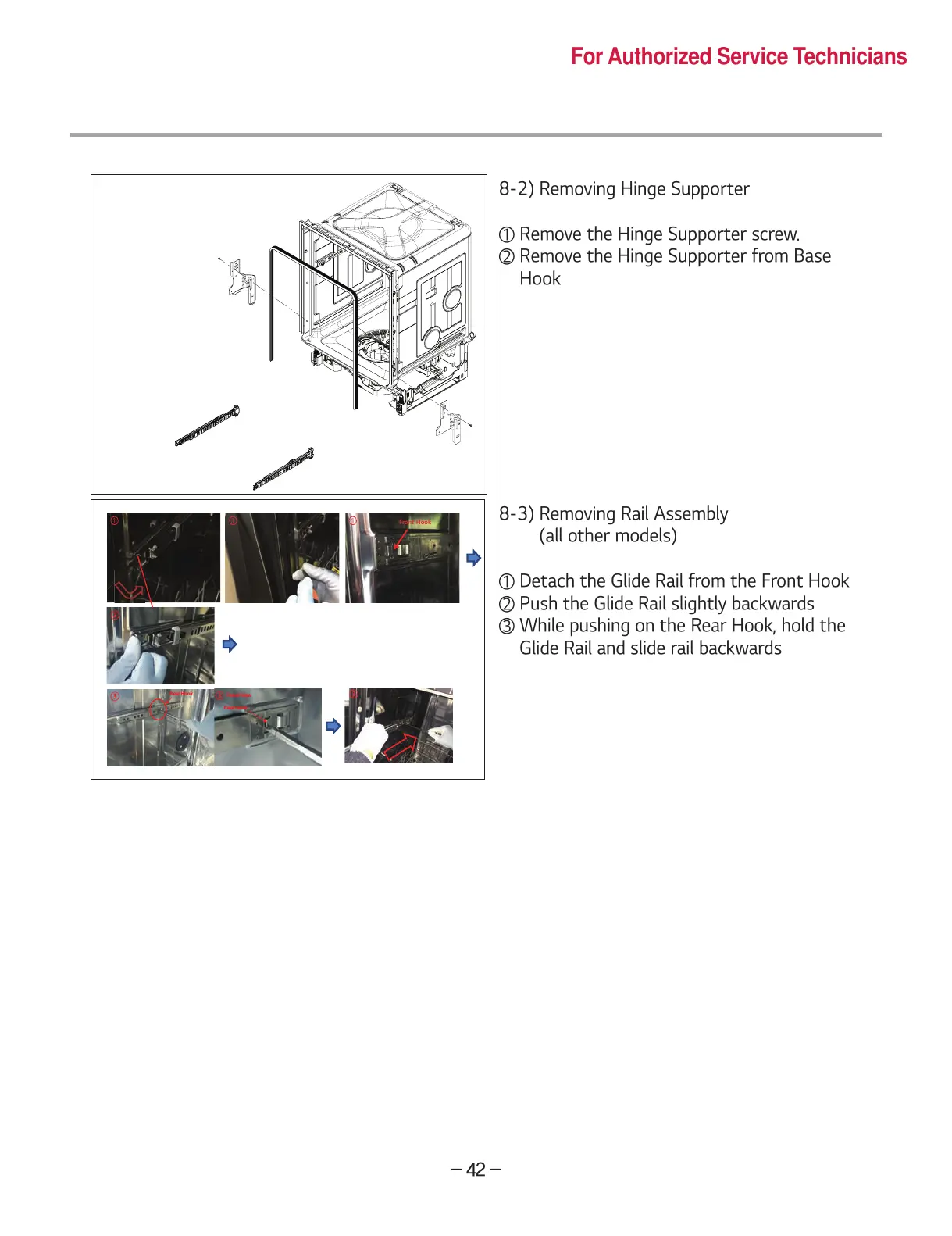

8-2) Removing Hinge Supporter

① Remove the Hinge Supporter screw.

② Remove the Hinge Supporter from Base

Hook

Rear Hook

Detail View

(TQPV*QQM

Front

Hook

Rear

Hook

8-3) Removing Rail Assembly

(all other models)

① Detach the Glide Rail from the Front Hook

② Push the Glide Rail slightly backwards

③ While pushing on the Rear Hook, hold the

Glide Rail and slide rail backwards
