For Authorized Service TechniciansFor Authorized Service Technicians
- 41 -
Casing
Assembly,
Pump
Base Cover

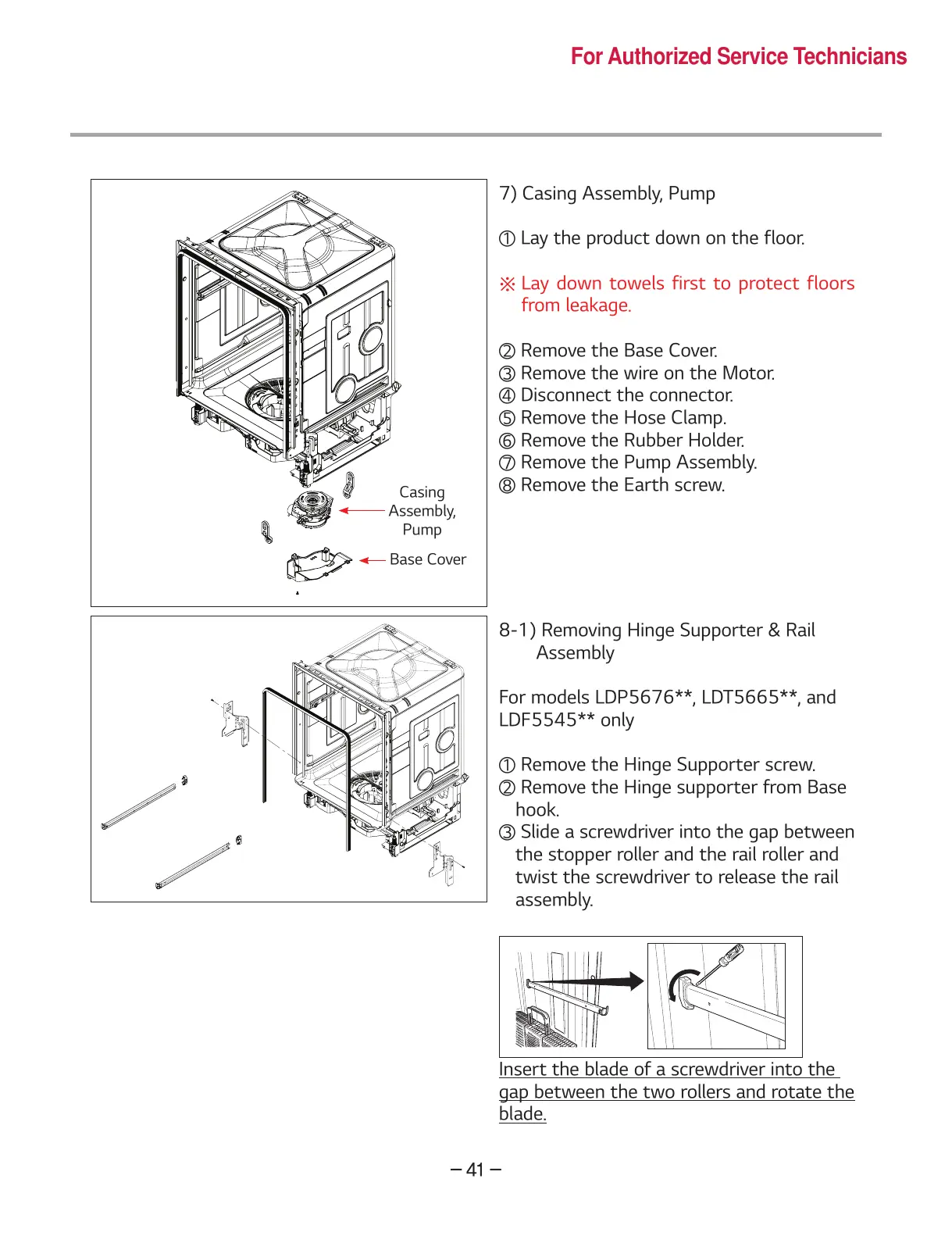

7) Casing Assembly, Pump
① Lay the product down on the floor.
※ Lay down towels first to protect floors
from leakage.
② Remove the Base Cover.
③ Remove the wire on the Motor.
④ Disconnect the connector.
⑤ Remove the Hose Clamp.
⑥ Remove the Rubber Holder.
⑦ Remove the Pump Assembly.
⑧ Remove the Earth screw.
8-1) Removing Hinge Supporter & Rail
Assembly
For models LDP5676**, LDT5665**, and
LDF5545** only
① Remove the Hinge Supporter screw.
② Remove the Hinge supporter from Base
hook.
③ Slide a screwdriver into the gap between
the stopper roller and the rail roller and
twist the screwdriver to release the rail
assembly.
Insert the blade of a screwdriver into the
gap between the two rollers and rotate the
blade.
To Next Page
