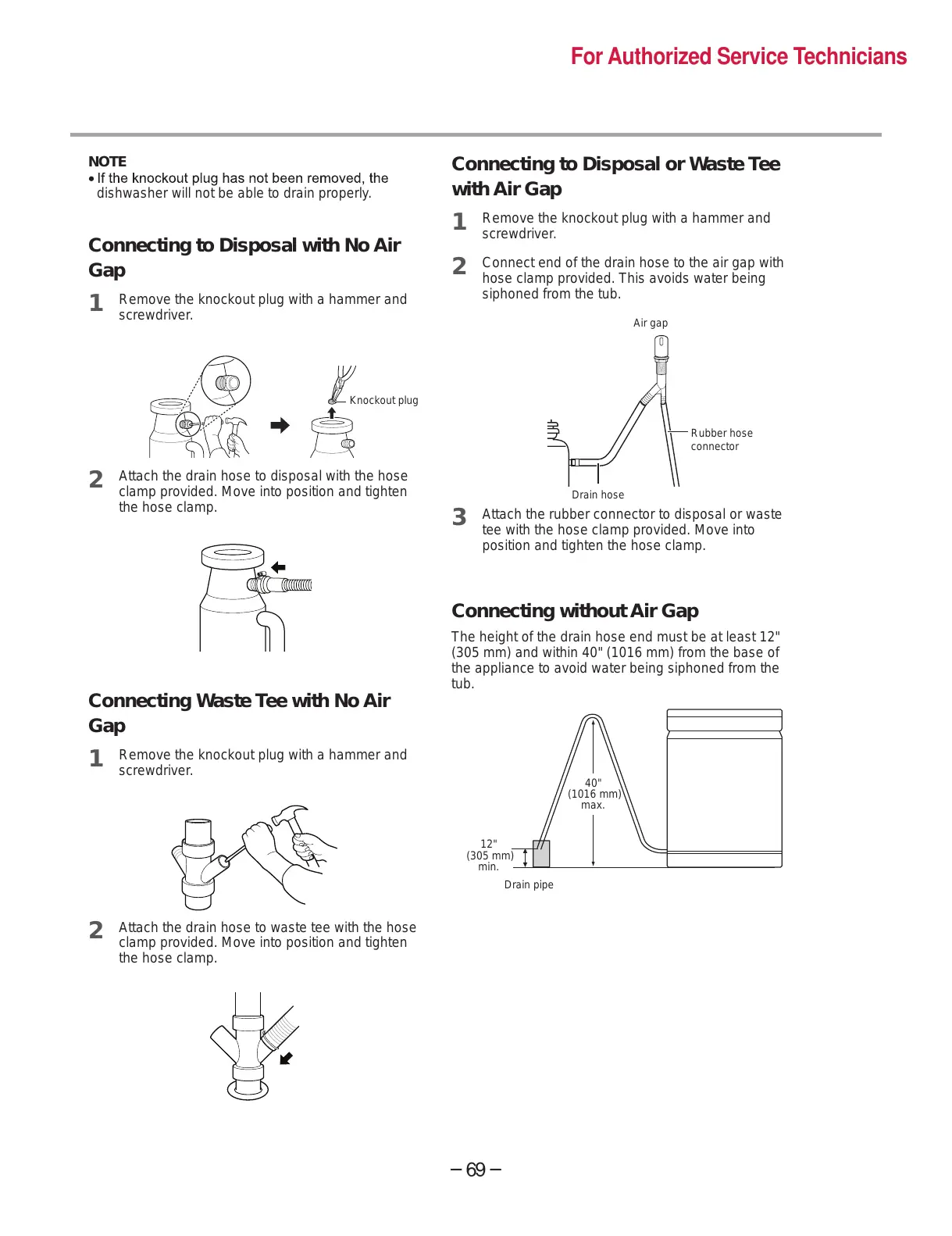

LG LDT5665ST Service Manual

For Authorized Service TechniciansFor Authorized Service Technicians
- 69 -
NOTE
dishwasher will not be able to drain properly.
Connecting to Disposal with No
Air
Gap
1
Remove the knockout plug with a hammer and
screwdriver.
Knockout plug
2
Attach the drain hose to disposal with the hose
clamp provided. Move into position and tighten
the hose clamp.
Connecting W
aste Tee with No Air
Gap
1
Remove the knockout plug with a hammer and
screwdriver.
2
Attach the drain hose to waste tee with the hose
clamp provided. Move into position and tighten
the hose clamp.
Connecting to Disposal or Waste Tee
with Air Gap
1
Remove the knockout plug with a hammer and
screwdriver.
2
Connect end of the drain hose to the air gap with
hose clamp provided. This avoids water being
siphoned from the tub.
Air gap
Rubber hose
connector
Drain hose
3
Attach the rubber connector to disposal or waste
tee with the hose clamp provided. Move into
position and tighten the hose clamp.
Connecting without Air Gap
The height of the drain hose end must be at least 12"
(305 mm) and within 40" (1016 mm) from the base of
the appliance to avoid water being siphoned from the
tub.
12"
(305 mm)
min.
40"
(1016 mm)
max.
Drain pipe
