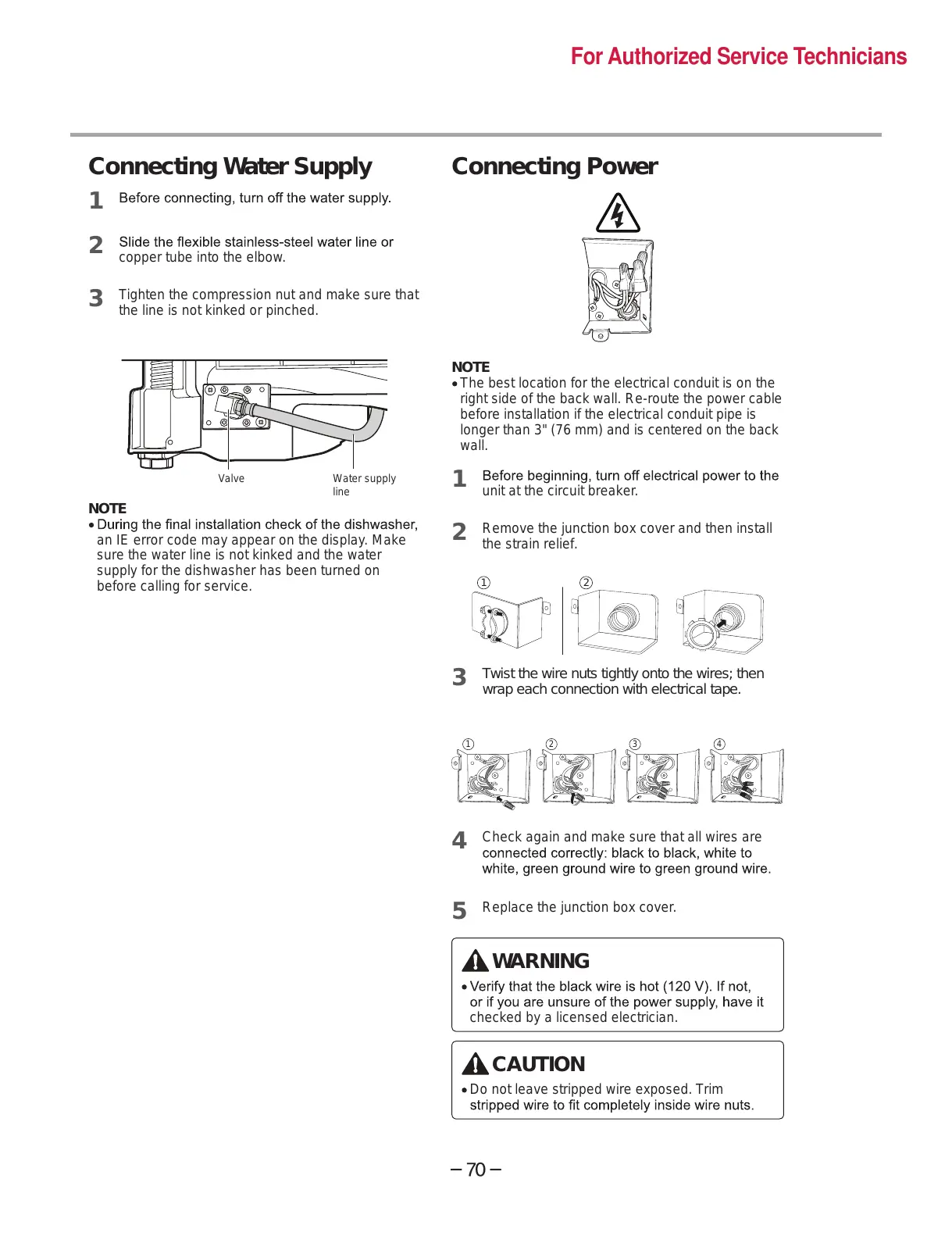

For Authorized Service Technicians
- 70 -
Connecting Water Supply
1
2
copper tube into the elbow.
3
Tighten the compression nut and make sure that
the line is not kinked or pinched.
Valve Water supply
line
NOTE
an IE error code may appear on the display. Make
sure the water line is not kinked and the water
supply for the dishwasher has been turned on
before calling for service.
Connecting Power
NOTE
The best location for the electrical conduit is on the
right side of the back wall. Re-route the power cable
before installation if the electrical conduit pipe is
longer than 3" (76 mm) and is centered on the back
wall.
1
unit at the circuit breaker.
2
Remove the junction box cover and then install
the strain relief.
1 2
3
Twist the wire nuts tightly onto the wires; then
wrap each connection with electrical tape.
1 2 3 4
4
Check again and make sure that all wires are
5
Replace the junction box cover.
WARNING
checked by a licensed electrician.
CAUTION
Do not leave stripped wire exposed. Trim
