Connections
8
A
U
X
FM
GND
AM
L
R
OPTICAL
IN
R
L
SPEAKERS

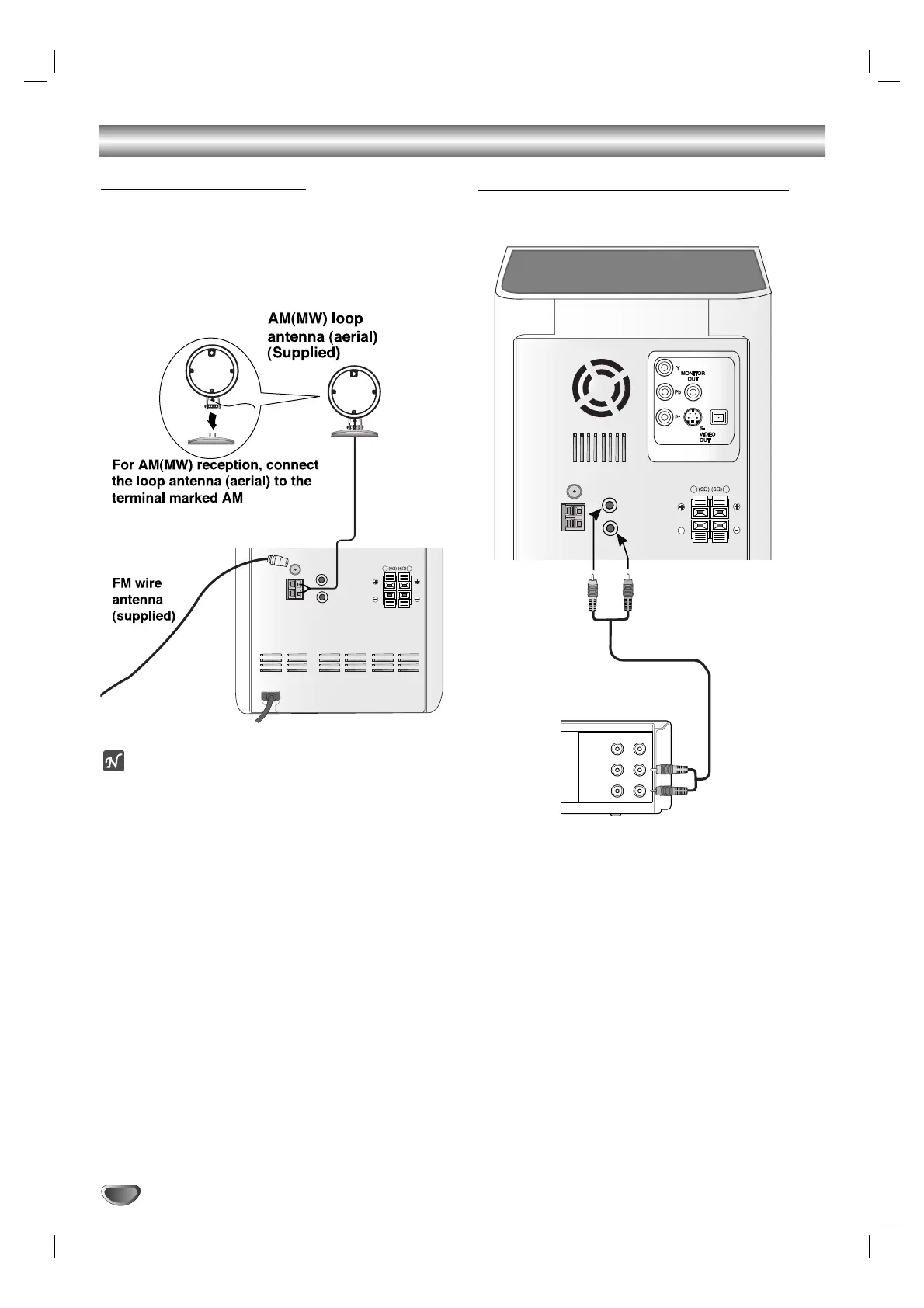

Connecting to Antenna
Connect the supplied FM/AM antennas for listening to
the radio.
- Connect the AM loop antenna to the AM antenna
connector.
- Connect the FM wire antenna to the FM antenna
connector.
otes

To prevent noise pickup, keep the AM loop antenna
away from the unit and other component.

Be sure to fully extend the FM wire antenna.

After connecting the FM wire antenna, keep it as
horizontal as possible.
Connecting to Auxiliary Equipment
You can use VCR or other unit connected to the AUX
connector.
A
U
X
FM
GND
AM
L
R
OPTICAL
IN
VIDEO
OUTIN
AUDIO (L)
AUDIO (R)
To AUDIO IN
To AUDIO OUT
VCR (or Auxiliary Device, etc)
R
L
SPEAKERS
11
Connect a VCR or auxiliary device, etc to the
AUX connector.
22
Select AUX function by turning the FUNCTION
dial on the front panel or pressing the
AUX/D.INPUT button on the Remote Control.
“AUX” will be shown on the display window.
