REFRIGERATOR INSTALLATION
13
CAUTION: When you remove the drawer, do not hold
handle. If it comes off, it could cause personal injury.
CAUTION: When laying down the drawer, be careful
not to damage the floor or hurt your feet by the sharp
edges on hinge side.

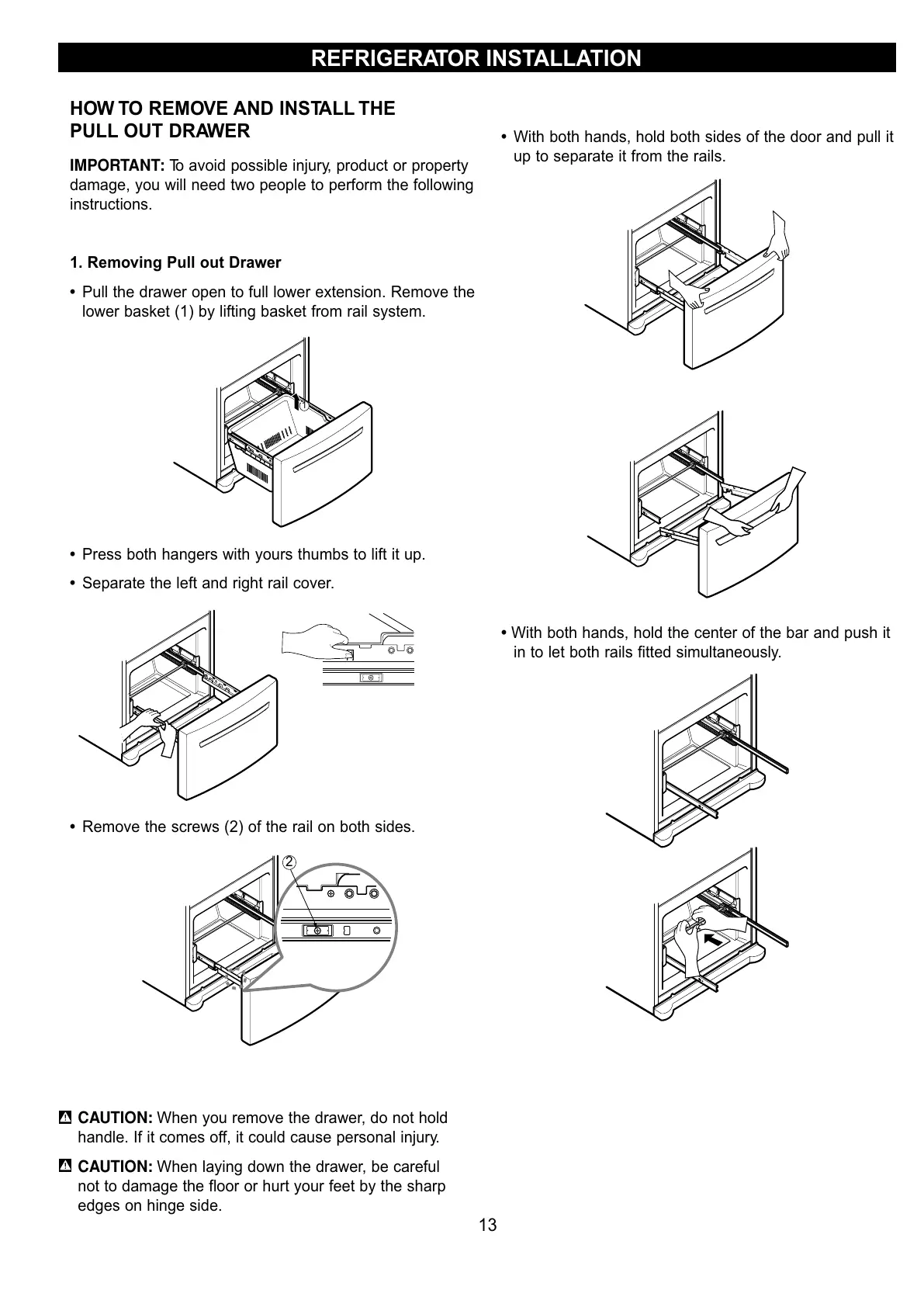

HOW TO REMOVE AND INSTALL THE
PULL OUT DRAWER
IMPORTANT: To avoid possible injury, product or property
damage, you will need two people to perform the following
instructions.
1. Removing Pull out Drawer
• Pull the drawer open to full lower extension. Remove the
lower basket (1) by lifting basket from rail system.
• Press both hangers with yours thumbs to lift it up.
• Separate the left and right rail cover.
• Remove the screws (2) of the rail on both sides.
• With both hands, hold both sides of the door and pull it
up to separate it from the rails.
• With both hands, hold the center of the bar and push it
in to let both rails fitted simultaneously.
1
2
