REFRIGERATOR INSTALLATION
7
2. Replacing Refrigerator Door
Right Door
Lower the door onto the middle hinge pin (7).
Make sure the door is aligned with the cabinet.
Replace the top hinge (4) installing hinge
screws (3) to secure it.
Make sure the gasket on the door is flush
against the cabinet and is not folded.
Support the door on the handle side while
securing. And make sure the door is straight
and the gap between the doors is even across
the front.
Install the ground screw (6).
Connect the door switch wire (2).
Tighten the cover screw (1).
Left Door
Lower the door onto the middle hinge pin (5).
Make sure the door is aligned with the cabinet.
Replace the top hinge (4) installing hinge
screws (3) to secure it.
Make sure the gasket on the door is flush
against the cabinet and is not folded.
Support the door on the handle side while
securing. And make sure the door is straight
and the gap between the doors is even across
the front.
Connect the door switch wire (2).
Tighten the cover screw (1).

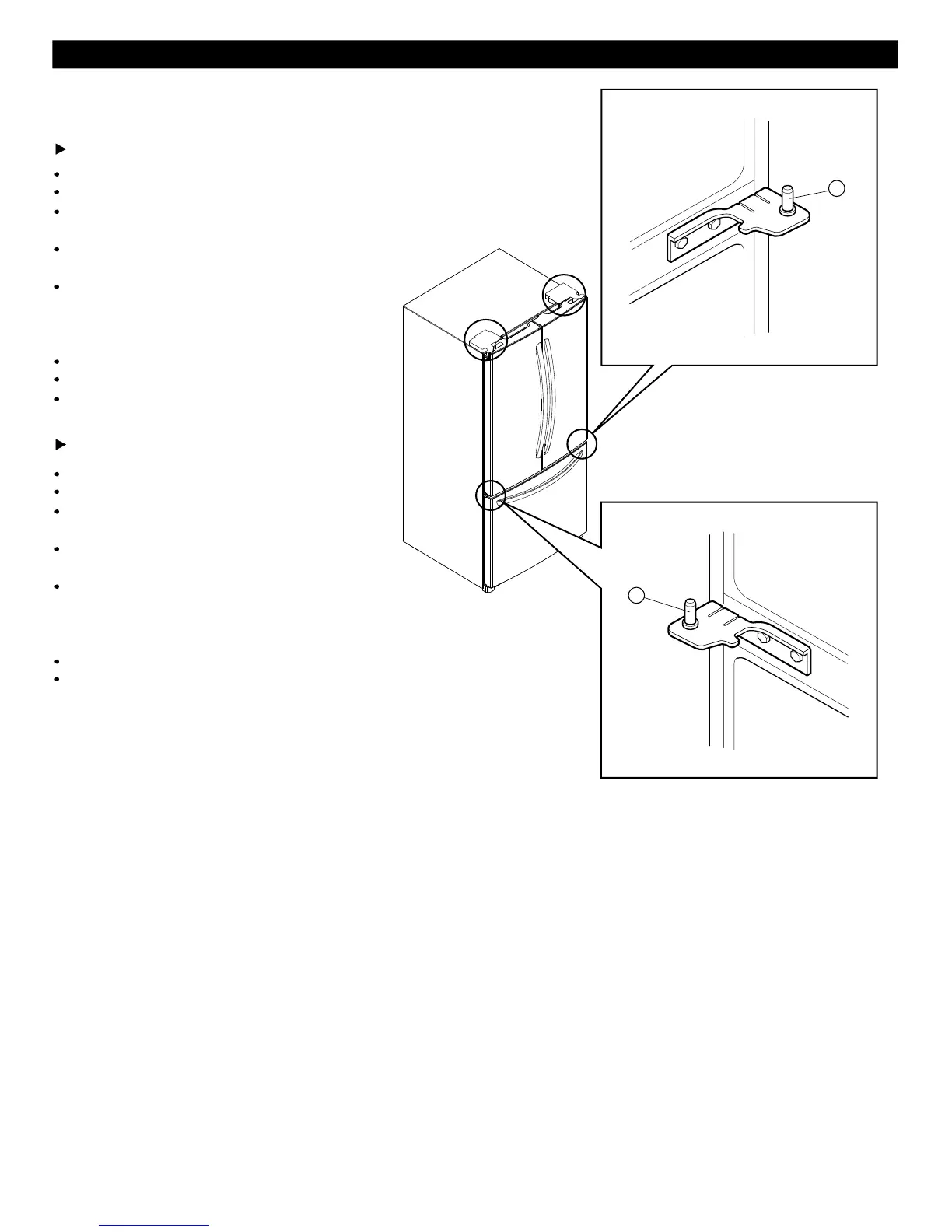

NOTE: To use like reference the previous image.
